Specifications
Specification
Details
Model

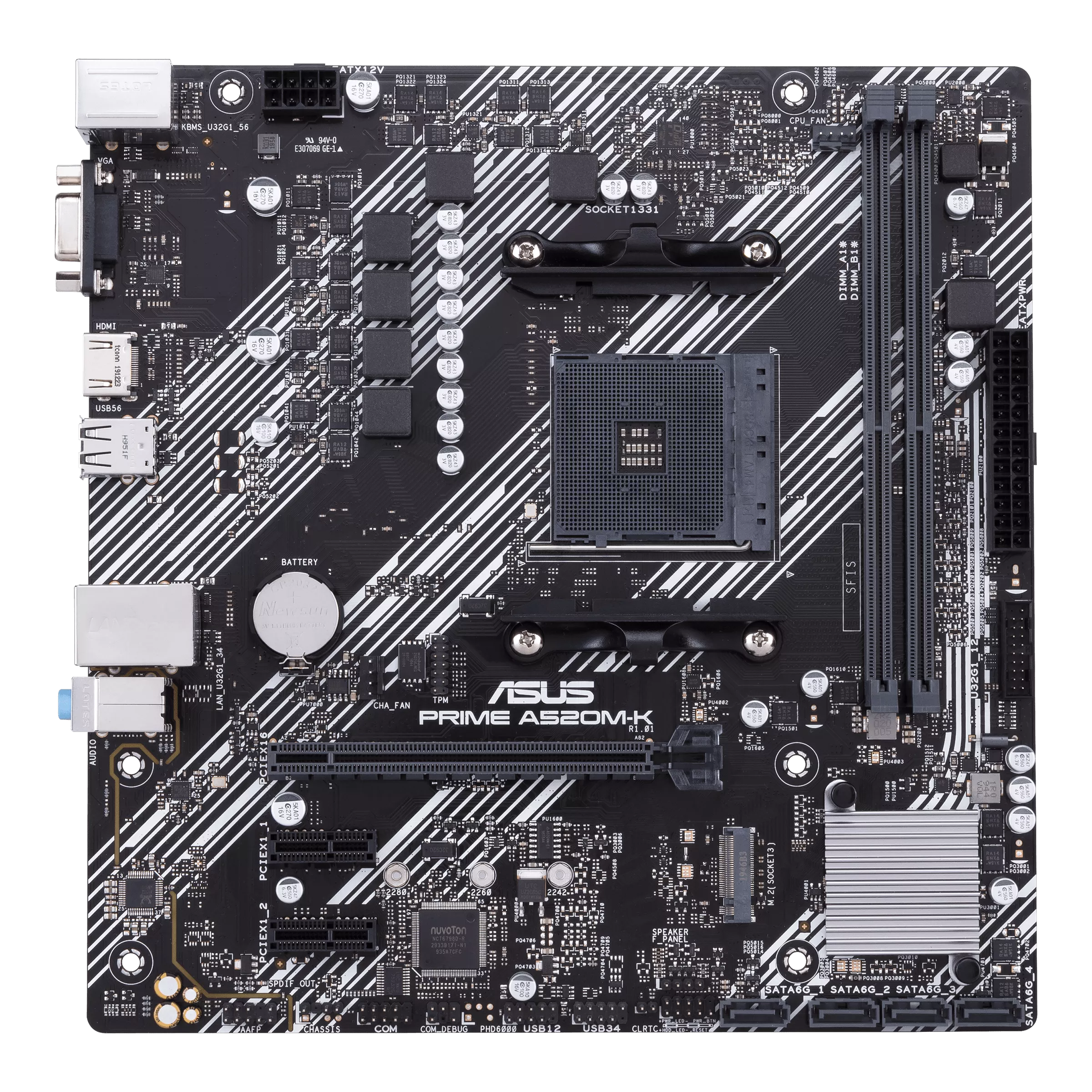

PRIME A520M-K/CSM
CPU
* Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
Chipset
AMD A520
Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.
Graphic
1 x HDMI 2.1(4K@60HZ)
Expansion Slots
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors , AMD A520 Chipset ,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)
Storage
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : , Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports , AMD A520 Chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
Audio
Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
4 x USB 2.0 port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)
Software Features
ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Back I/O Ports
4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Internal I/O Ports
1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),1 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector
Accessories
1 x ACC Express Activation Key Card,1 x M.2 SSD screw package(s),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE,WOL by PME, PXE
Operating System
Windows 10 64-bit
Form Factor
mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
