12TH GEN CORE, STABLE PERFORMANCE - The PRO Z690-P DDR4 is a compact motherboard for the Intel Z690 chipset (LGA 1700, 12th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance
SMART COOLING - Frozr AI Cooling automatically adjusts system fan speeds based on CPU & GPU temperatures, while the VRM includes an extended heatsink design for enhanced passive cooling
MULTI-GPU SLOTS, HIGH RAM SPEEDS – The primary PCIe 5.0 x16 slot (with steel frame) supports AMD CrossFire technology (via tertiary PCIe 3.0 x16 slot); quad DDR4 DIMMs with Memory Boost architecture enable faster SDRAM for overclocking (5000+MHz/OC)
Dual M.2 Gen4 CONNECTORS - Storage includes 2 x M.2 Gen4 x4 64Gb/s slots (Intel Optane supported) for hyper-fast SSD access when launching system-demanding programs or large files
WELL CONNECTED - Features USB 3.2 Gen 2x2 Type-C for fast file transfers (20Gb/s), 4K/30Hz HDMI display interface, 2.5G LAN, and 7.1 HD Audio with Audio Boost
From the manufacturer:
MSI Business & Productivity
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

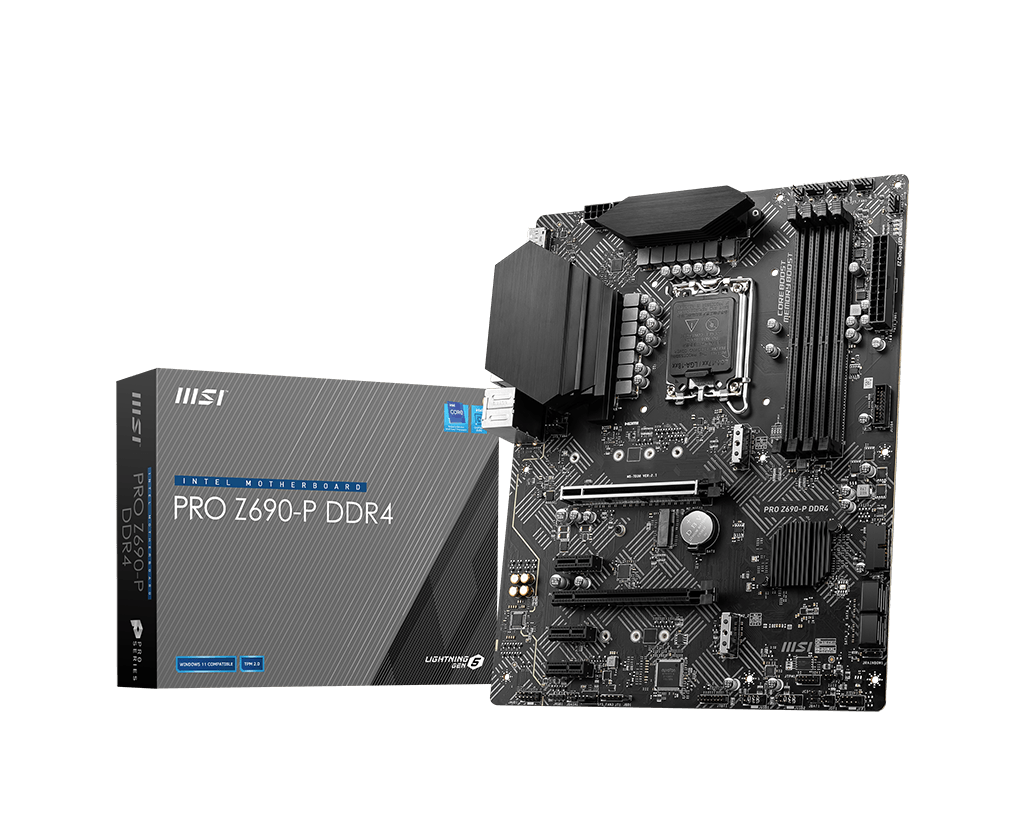

PRO Z690-P DDR4
Business Elegance
For professionals looking for value-centric 12th Gen Intel Core performance with high-bandwidth PCIe 5.0 x16 graphics card architecture, improved DDR4 memory, and M.2 Gen4 storage options, the MSI PRO Z690-P DDR epitomizes business elegance.
Supports Intel Core 12th Gen Processors (LGA 1700)
4 x DDR4 DIMMs, Memory Boost (5000MHz OC)
2 x M.2 Gen4 Slots
1 x PCI-e 5.0 x16 (128GB/s), 1 x PCI-e 3.0 x16 Graphic Card Slots
2.5G LAN
USB 3.2 Gen 2x2 Type-C (20Gbps)
Z690 Chipset, Smart Cooling, DDR4 Memory Boost
Supports Intel Core 12th Gen Processors
The PRO Z690-P DDR4 motherboard supports 12th Gen Intel Core processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel Z690
Smart Cooling
VRM Cooling: Features an extended heatsink for improved thermal dissipation.
Frozr AI Cooling: Automatically adjusts system cooling based on CPU & GPU temperatures.
A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.
4 x DDR4 Dual Channel (5000 MHz Overclocked*)
Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.
*1DPC 1R Max. overclocking frequency 5000 MHz, supports Intel XMP.
PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, 2.5G LAN Connectivity
Fortified PCI-e 5.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
1 x PCI-e 5.0 x16 slot (with Steel Armor)
1 x PCI-e 3.0 x16 slot
3 x PCI-e 3.0 x1 slots
*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 M.2 Connectors
The PRO Z690-P DDR4 motherboard features MSI's latest M.2 slots (Intel Optane supported):
2 x Gen4 x4 64Gb/s slots
*M.2 specifications may vary depending on the CPU installed.
2.5G LAN Connectivity
2.5G LAN: A 2.5Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 2x2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Technical Details:
Brand
MSI
Manufacturer
MSI, Micro-Star INT'L CO., LTD. No.69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan
Model
PROZ690-PDDR4
Model Year
2021
Product Dimensions
30.5 x 24.4 x 6 cm; 240.4 g
Item model number
PROZ690-PDDR4
RAM Size
128 GB
Memory Storage Capacity
128 GB
Memory Slots Available
4
Flash Memory Installed Size
128 GB
Ram Memory Technology
DDR4
Computer Memory Type
DDR4 SDRAM
Processor Type
Pentium
Processor Socket
LGA 1700
Compatible Processor Types
12th Gen Intel Core
Hardware Interface
USB, USB Type C
Graphics Card Interface
PCI-Express x16
Compatible Devices
Personal Computer
Chipset Type
Intel Z690
Mounting Hardware
Motherboard, Sata Cable, Manual, I/O Shield, CD, M.2 Screws/Standoff Sets, Registration Card, Thank you card
