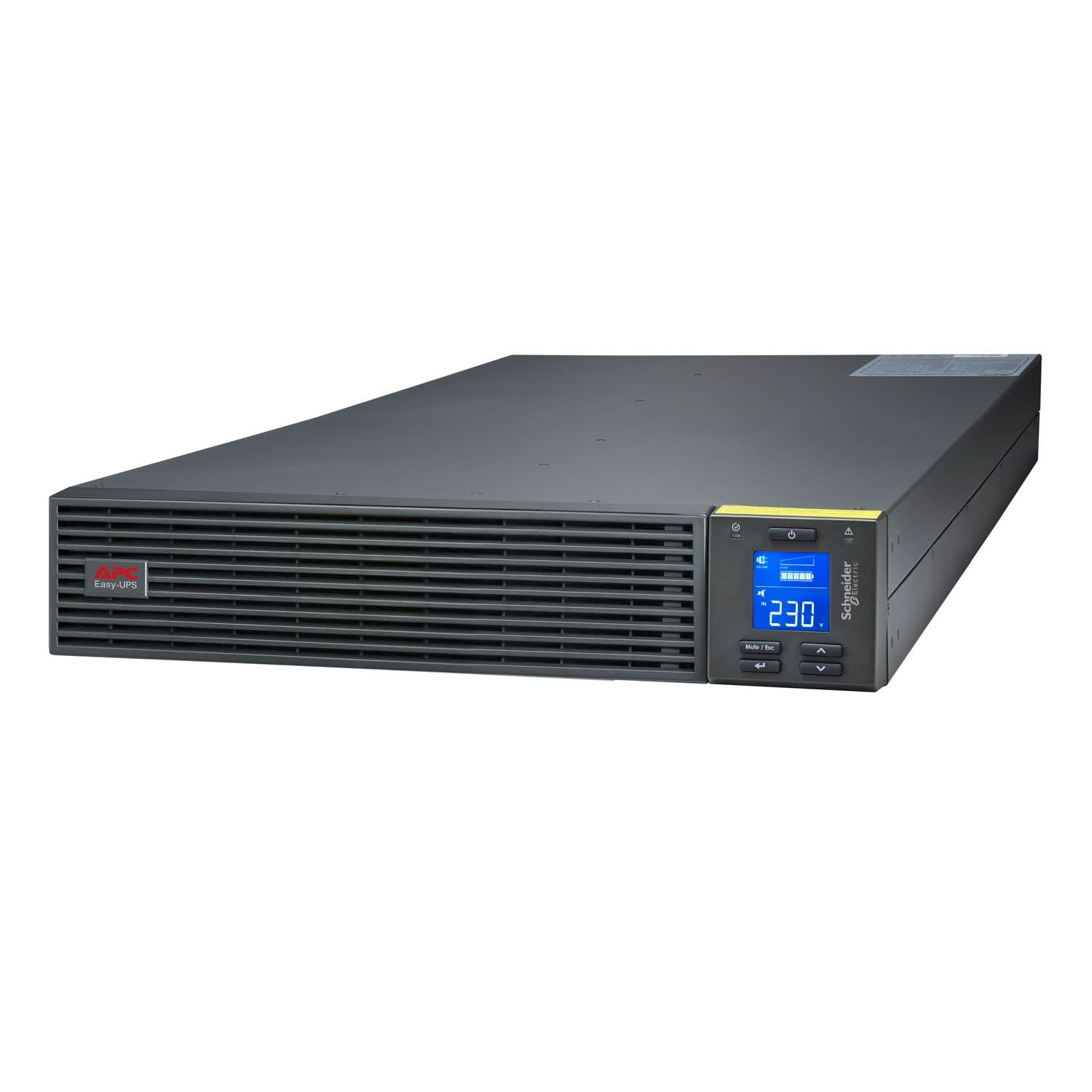

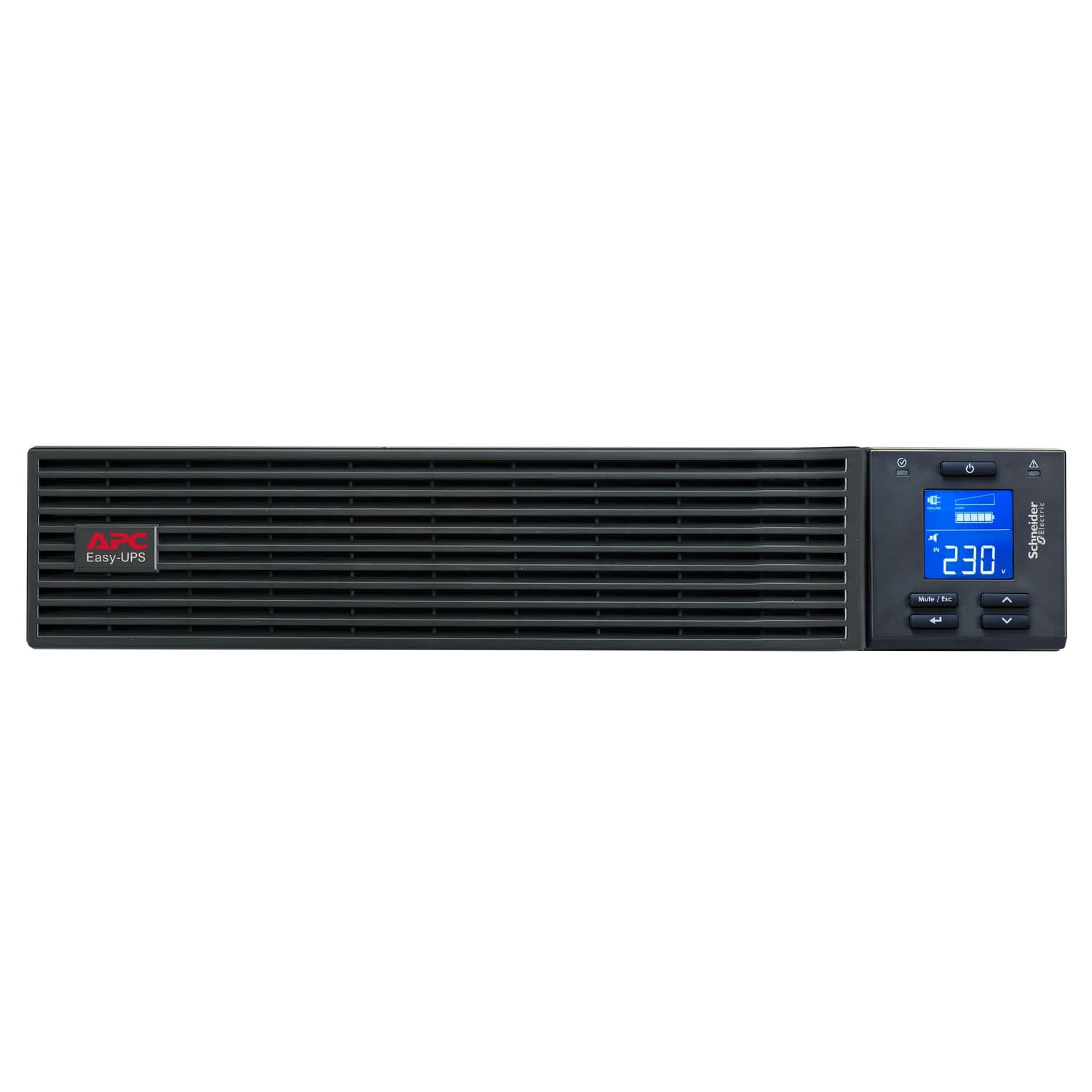

APC EASY UPS ON-LINE SRV5KUXI-IN - 5KVA/5KW | 230V | 1X HARD WIRE 3-WIRE(1P+N+E) OUTLETS | RACKMOUNT 2U | INTELLIGENT CARD SLOT | VISUAL LCD AND AUDIBLE ALARMS | EXTERNAL BATTERY, W/O RAIL KIT | 2 YEARS WARRANTY

About the item



• High-Capacity Scalable Power: 5kVA/5kW (Unity Power Factor) True Double-Conversion On-Line UPS (Battery-Free) for flexible, high-capacity power protection in IT, data centers, and critical applications.
• Customizable Extended Runtime: Designed to support third-party external batteries (192V system) with a programmable charging current (1-8A), allowing tailored backup durations for your specific operational needs.
• Pure, Uninterrupted Output: Delivers clean, pure sine wave power (230V), protecting sensitive equipment from all power disturbances, including surges, sags, and blackouts, ensuring seamless operation.
• Wide Voltage Adaptability: Operates reliably across a wide input voltage range (176-300V full load, 110-300V half load), making it ideal for unstable power environments prevalent in regions like Bengaluru, Karnataka.
• Efficient Rackmount 2U Design: Space-saving Rackmount 2U form factor (no rail kit included) for seamless integration into server racks and efficient use of valuable IT space.

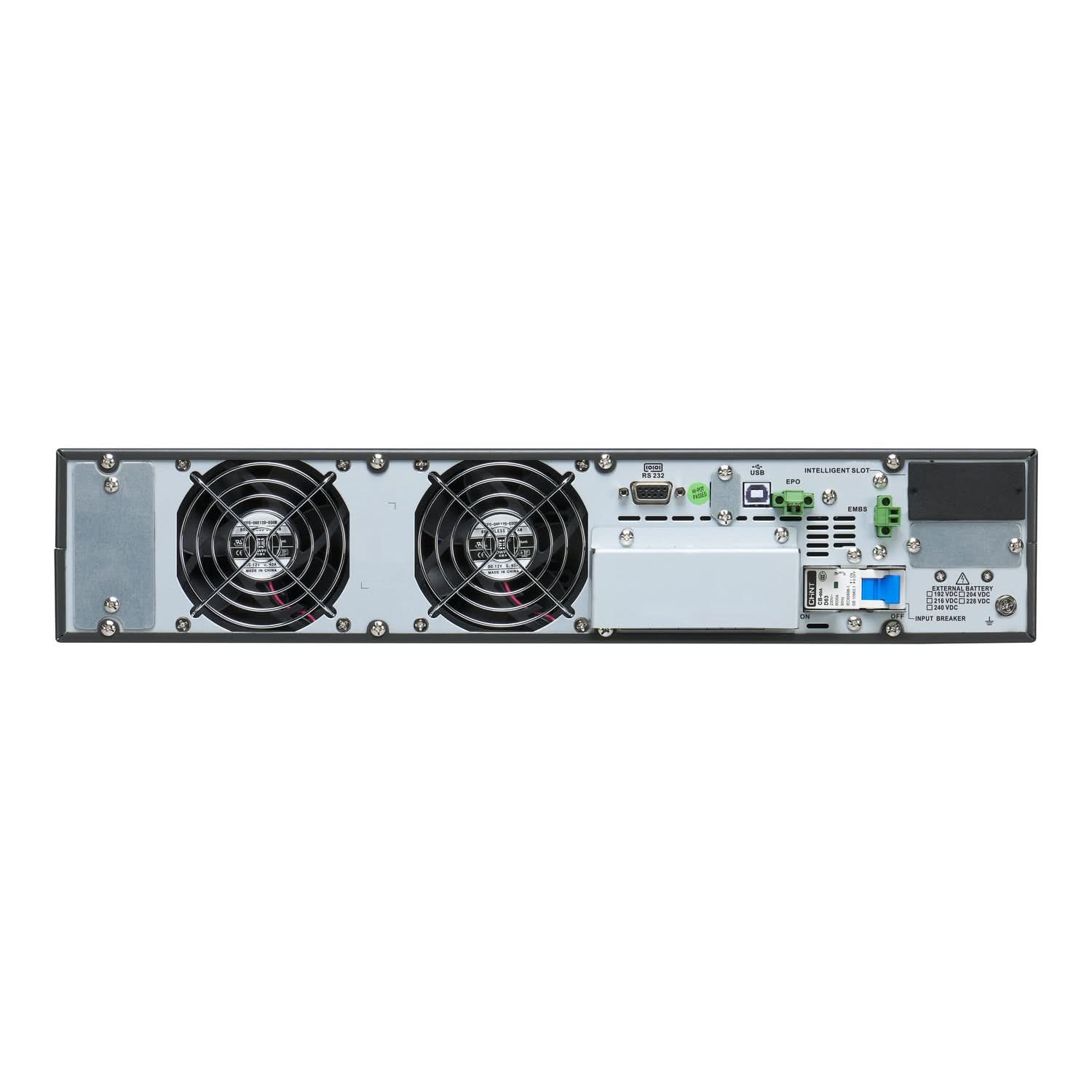

• Comprehensive Connectivity & Monitoring: Features a Hardwire Outlet, a multi-function LCD display, USB and RS-232 ports, and an Intelligent Slot for optional network management, providing robust control and real-time insights.
• Energy-Saving Operation: Achieves up to 94% efficiency in double-conversion mode and 97% in ECO mode, significantly reducing energy consumption and operational costs.
• Enhanced Safety & Reliability: Includes Emergency Power Off (EPO) support and is generator compatible for robust power continuity during any outage scenario.
• BIS Certified & 2-Year Warranty: BIS certified for quality assurance and backed by a comprehensive manufacturer's 2-year repair or replace warranty for dependable performance and peace of mind.





Key Features:



• Power Capacity: 5000 VA / 5000 W – ideal for IT, telecom, and industrial applications.

• Topology: True double-conversion online – ensures clean, uninterrupted power.

• Input Voltage Range: 176–300V (full load), 110–300V (half load) – suitable for Indian power conditions.

• Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.

• Battery Support: No internal battery – supports third-party external batteries for flexible runtime.

• Battery Charger: Programmable charging current (1–8A); 192V battery system.

• Efficiency: Up to 94% in double-conversion mode, 97% in ECO mode – reduces energy costs.

• Connectivity: USB, RS-232, and intelligent slot for optional network management cards.

• Display: Multi-function LCD with LED indicators for real-time system monitoring.

• Safety: Emergency Power Off (EPO) with NC contacts for enhanced safety.

• Design: Rack-mountable 2U form factor; dimensions: 438 x 86.5 x 615 mm; weight: 15 kg.

• Environment: Operates at 0 to 40°C, <60 dBA noise level, IP20 protection.

• Certifications & Warranty: BIS certified; 2-year repair or replace warranty.\
