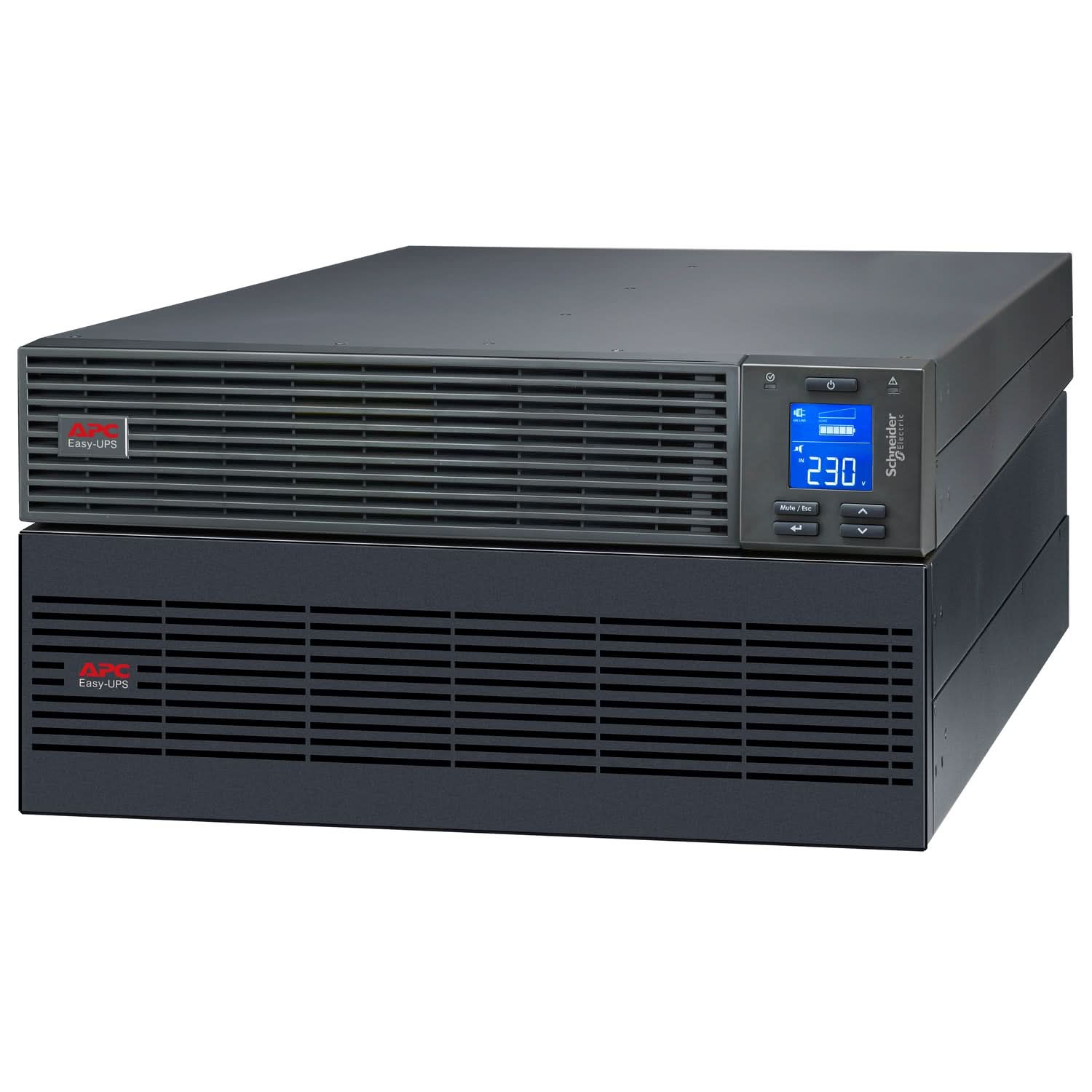

APC EASY UPS ON-LINE SRV5KRIL-IN - 5KVA/5KW | 230V | HARD WIRE 3-WIRE(1P+N+E) OUTLET | RACKMOUNT 5U | INTELLIGENT CARD SLOT | VISUAL LCD AND AUDIBLE ALARMS | EXTENDED RUNTIME, W/O RAIL KIT | 2 YEARS WARRANTY

About the item



• High-Performance Double-Conversion: 5kVA/5kW (Unity Power Factor) True On-Line UPS delivers premium, uninterrupted, and pure sine wave power, ideal for critical IT, data centers, and industrial applications.
• Scalable Extended Runtime: Designed for long backup needs, supporting external battery packs (SRV240RBP-9A) to provide up to 18 minutes at half load and 6 minutes at full load with one pack, offering flexible runtime expansion.
• Built for Unstable Power: Features a wide input voltage range (176-300V full load, 110-300V half load), making it highly suitable for fluctuating power conditions prevalent in regions like Bengaluru, Karnataka.
• Rackmount 5U Design: Space-saving Rackmount 5U form factor (no rail kit included) integrates seamlessly into existing server racks for efficient space utilization in critical IT environments.

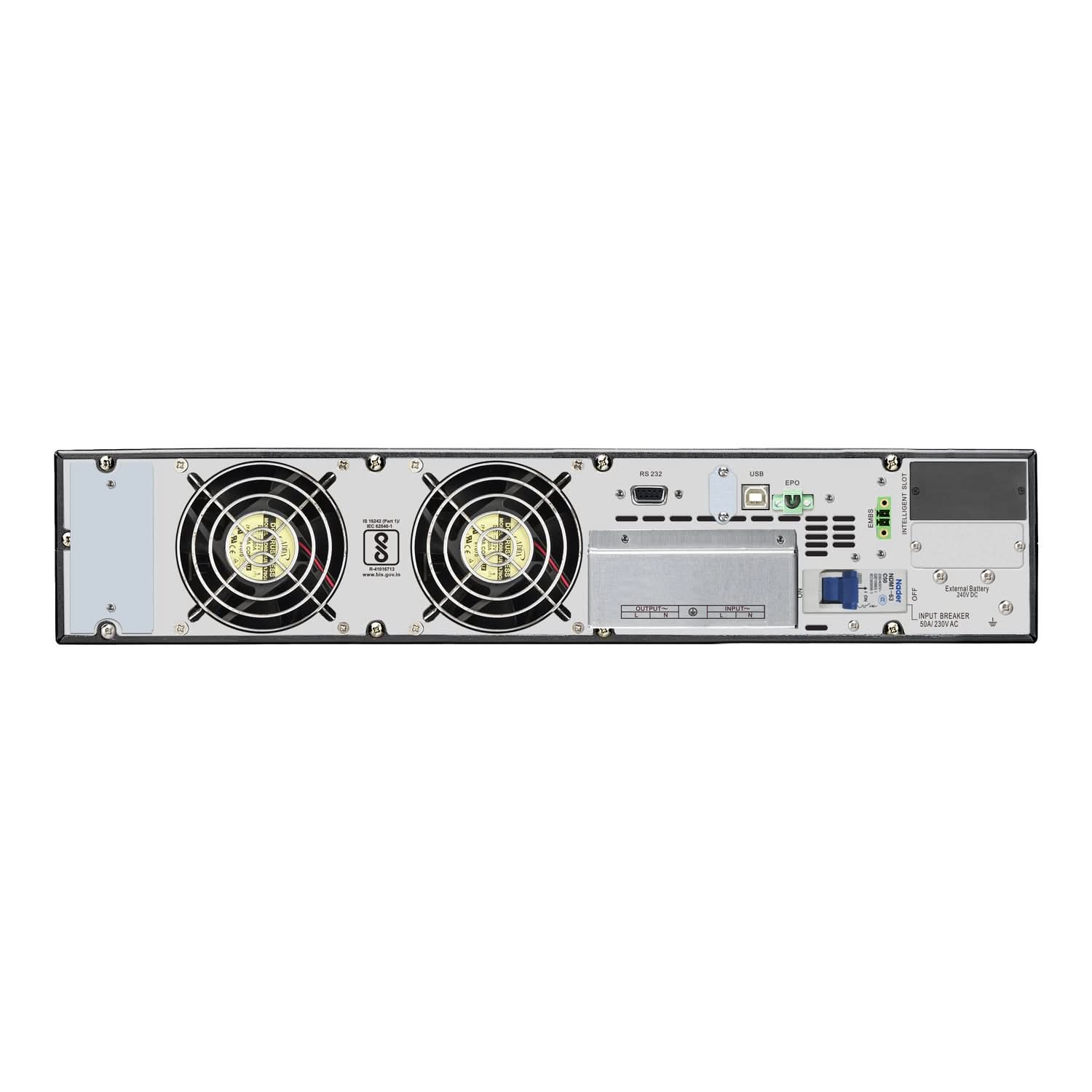

• Comprehensive Management & Safety: Includes Hardwire connectivity, a multi-function LCD display, USB and RS-232 ports, and an Intelligent Slot for optional network management. Also features Emergency Power Off (EPO) and is generator compatible.
• Exceptional Energy Efficiency: Achieves up to 94% efficiency in online mode and 97% in ECO mode, significantly reducing energy consumption and cooling costs for your business.
• BIS Certified Quality: BIS certified for safety and quality assurance, ensuring dependable performance in demanding critical environments.
• 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for long-term peace of mind and support.





Key Features:



• Power Capacity: 5000 VA / 5000 W – unity power factor for maximum load support.

• Topology: True double-conversion online – ensures clean, uninterrupted power.

• Input Voltage Range: 176–300V (full load), 110–300V (half load) – ideal for Indian power conditions.

• Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.

• Extended Runtime: Up to 18 minutes at half load and 6 minutes at full load with one external battery pack.

• Battery Support: Compatible with SRV240RBP-9A external battery packs; scalable runtime.

• Recharge Time: 4 hours to 90% capacity.

• Efficiency: Up to 94% in double-conversion mode, 97% in ECO mode – reduces energy and cooling costs.

• Connectivity: USB, RS-232, and intelligent slot for optional network management.

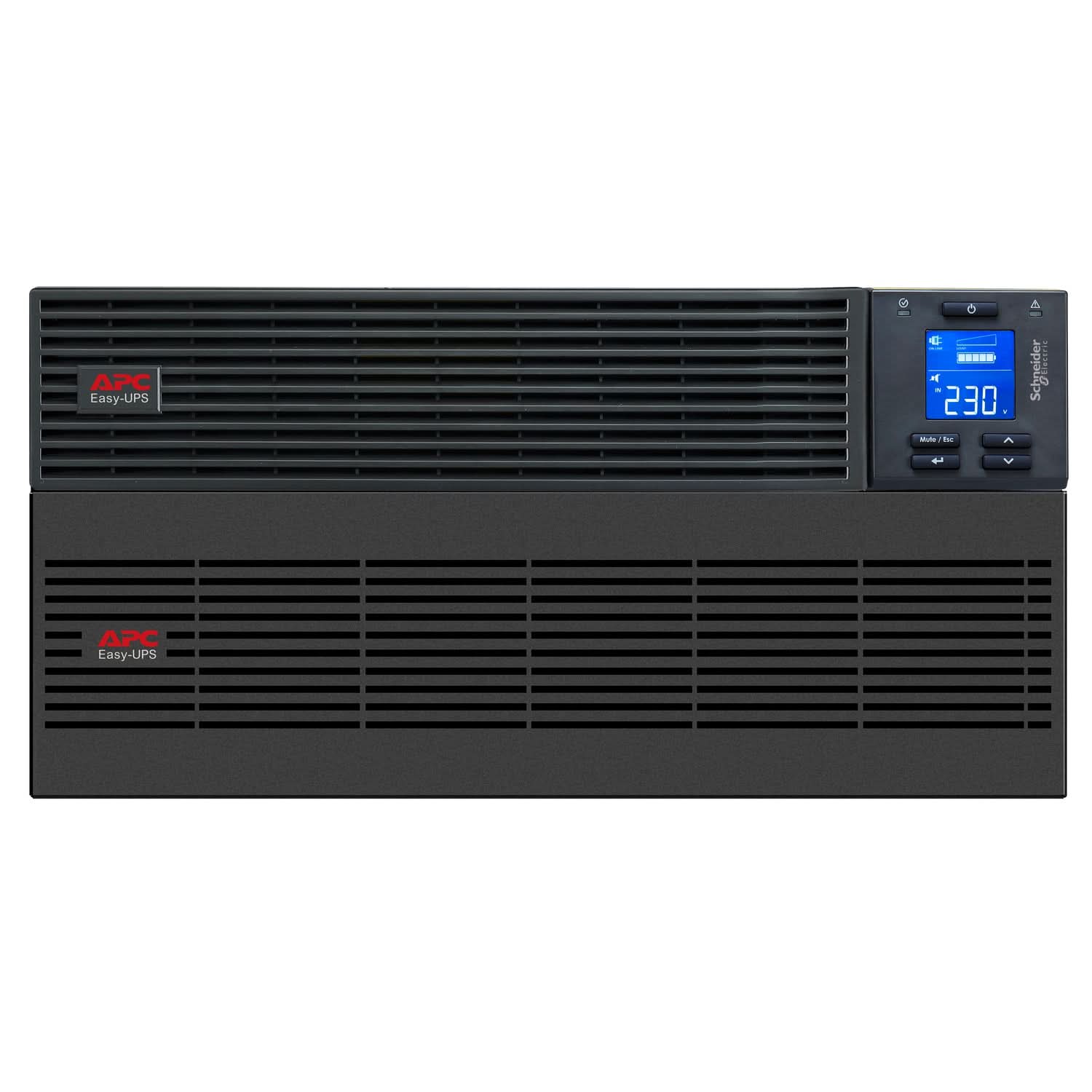

• Display: Multi-function LCD with LED indicators for real-time system status.

• Safety: Emergency Power Off (EPO) with NC contacts.

• Design: Rack-mountable 5U form factor; dimensions: 438 x 86 x 615 mm (power module); weight: 15 kg.

• Environment: Operates at 0–40°C, <60 dBA noise level, IP20 protection.

• Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
