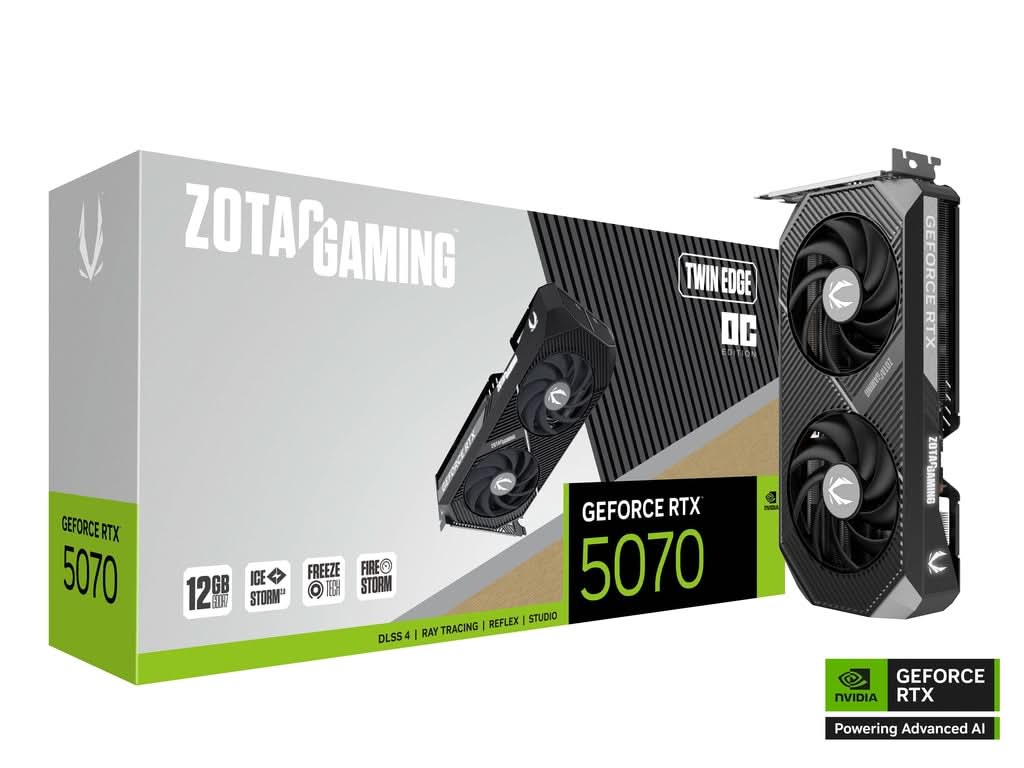

ZOTAC GAMING GEFORCE 12GB RTX 5070 TWIN EDGE OC

Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4- NVIDIA SFF-Ready Enthusiast GeForce Card- Compact dual-fan form factor- IceStorm 2.0 Cooling- BladeLink Fans- FREEZE Fan Stop- Metal Backplate- Power Safety Light- All-new FireStorm Utility


Specification




Category
Specification




GPU
NVIDIA® GeForce RTX™ 5070


CUDA Cores
6144


Video Memory
12GB GDDR7


Memory Bus
192-bit


Engine Clock
2542 MHz


Memory Clock
28 Gbps


Interface
PCI Express 5.0 x16


Display Outputs
3x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC)1x HDMI 2.1b (Supports 4K 120Hz HDR, 8K 60Hz HDR, and VRR)


HDCP Support
2.3


Multi-Display Capability
Quad Display (4 Displays)


Recommended PSU
650W


Power Consumption
250W


Power Input
1x 12V-2x6 Power Connector


DirectX Support
Microsoft DirectX® 12 Ultimate


OpenGL Support
4.6


Cooling Solution
IceStorm 2.0


Slot Size
2-slot


SLI Support
No


Supported OS
Windows 11 / Windows 10 64-bit (v1809 or later)


Card Dimensions
241.5 × 120.1 × 40.6 mm (9.5" × 4.7" × 1.6")


Accessories
User Manual / 2x 8-pin to 16-pin Adapter Cables






Warranty
3 years + Additional 2 years after Registration
