Front: 1 x 120mm or 1 x 140mm or 1 x 200mm Rear: 2 x 80mm
RADIATOR SUPPORT
Front: 1 x 120mm or 1 x 140mm
CLEARANCE
CPU cooler height limitation: 140mm
VGA length limitation:
255mm (Inner chassis)
285mm (Outer chassis)
VGA width length limitation: 40.64mm
PSU length limitation: 180mm
Features:
Core V1 Snow Edition Mini ITX Chassis

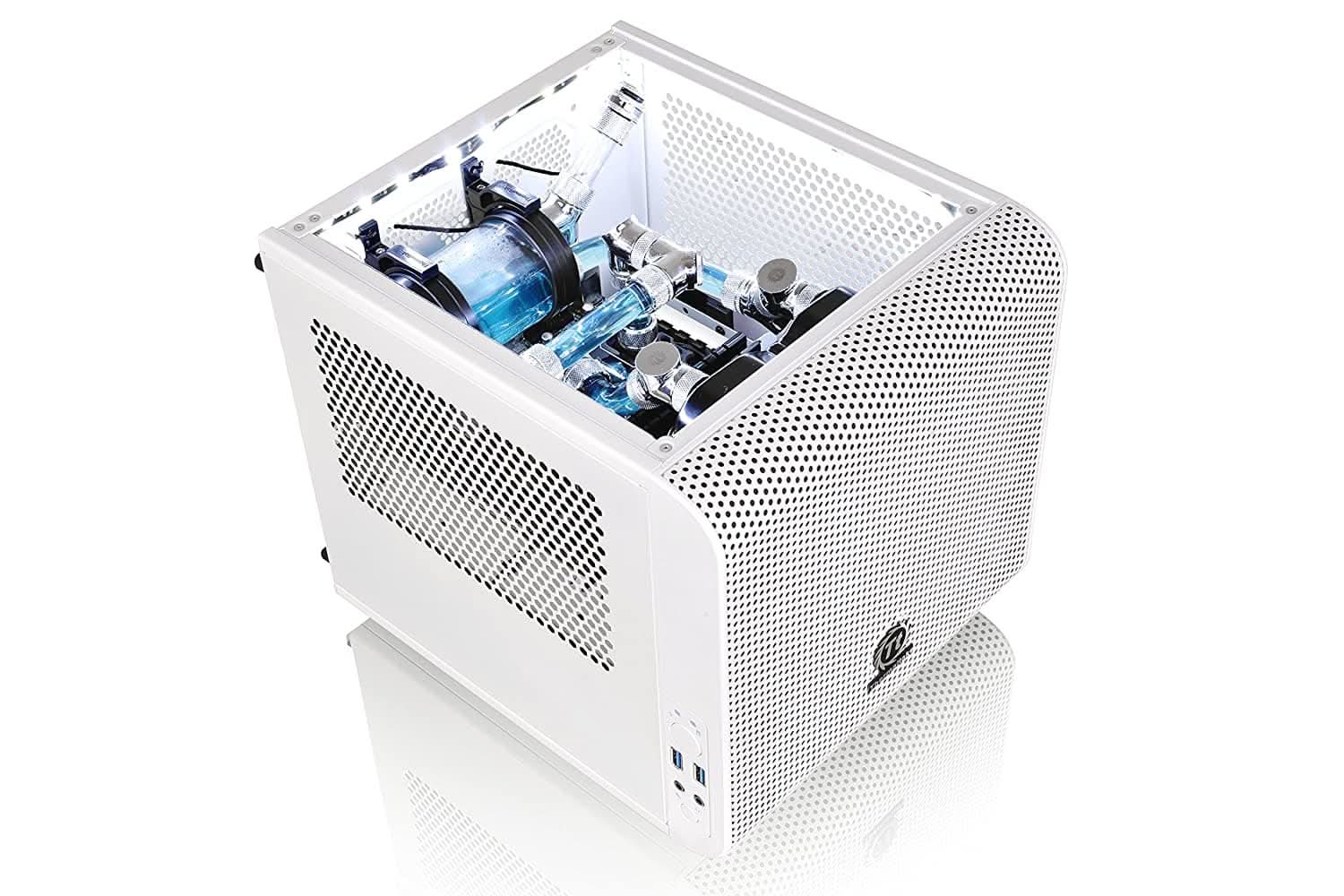

The new Core V1 Snow is a small and cute ITX based chassis with a 200mm fan in the front panel. Smart interchangeable side panels allow users to flip it accordingly to showcase either for superior liquid cooling or superb airflow, which allows you to make your own personal setup. You not only grant to have a really powerful mini system, it also has the ability to house various overclocking components to keep it really cool!
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Chambers Concept
Core V1 Snow has divided into two main chambers: the upper chamber is made for cooling performance and efficiency, and the lower chamber is made for PSU and cable management. With the aid of the removable 2.5€/3.5€ drive device racks, users can enjoy the freedom of gain the maximum interior space for advanced cooling performance or liquid system build.
Advanced Ventilation
With a promising cooling ability, Core V1 Snow has various mounting points to support all types of cooling systems that include DIY/AIO liquid cooling systems and air cooling units. A large 200mm fan is preinstalled in the front, along with two optional 80mm turbo fans at the rear, guaranteeing to hold up any type of gaming system.
Interchangeable Side Panel

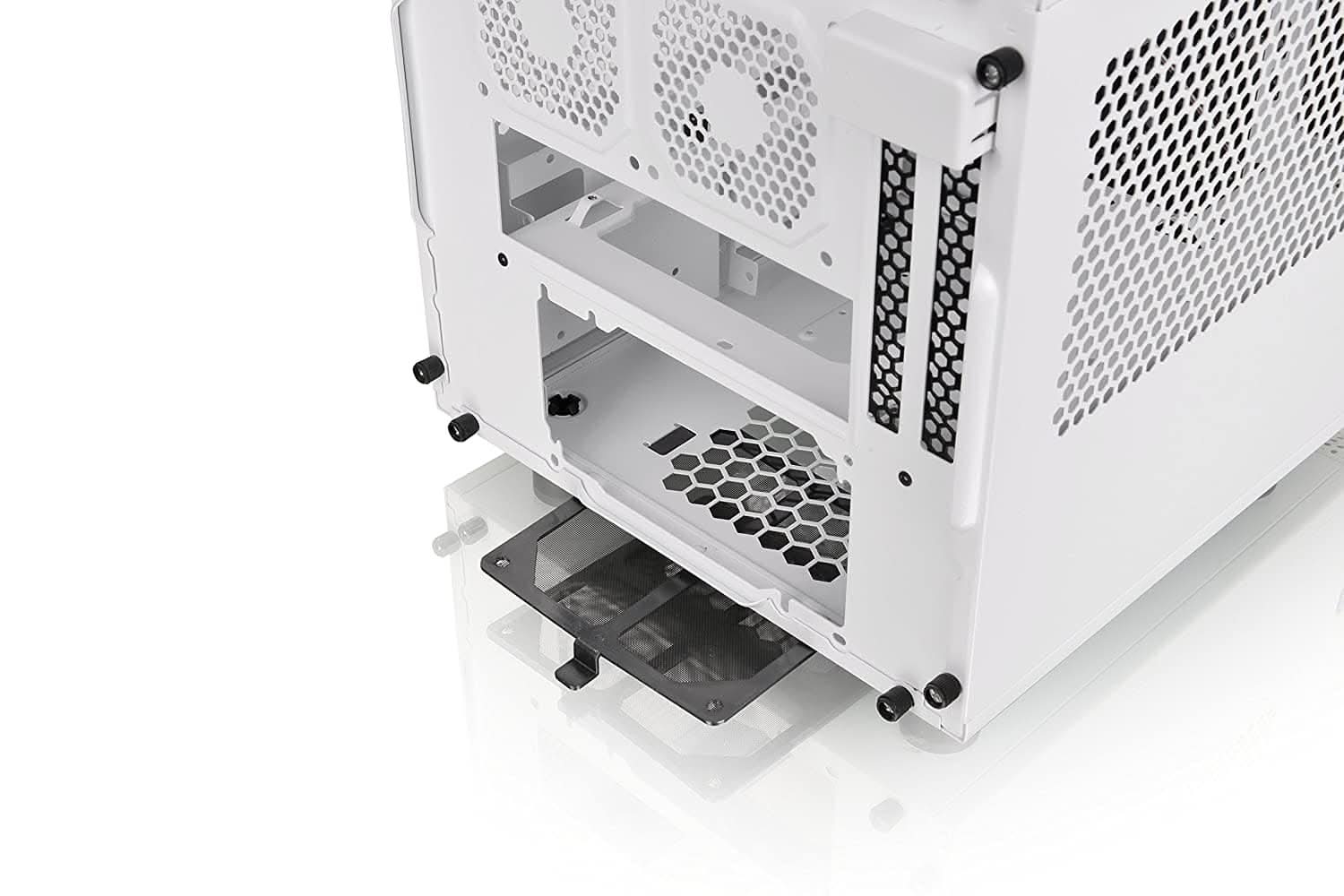

Symmetrical panels allow users to build the system with personality. Play around the panels accordingly for either the best viewing presentation or cooling performance. A removable PSU dust filter and adjustable shockproof rubbers is built with the bottom panel of the chassis to prolong the PSU usage.
Handy I/O Ports
Designed with convenience and cleanness in mind, Core V1 Snow has built-in dual USB 3.0 and HD audio connectors together with the Power and Reset Button on the side of the front panel, which not only keeps the panel clean and simple, it also grants direct and easy access for external devices.

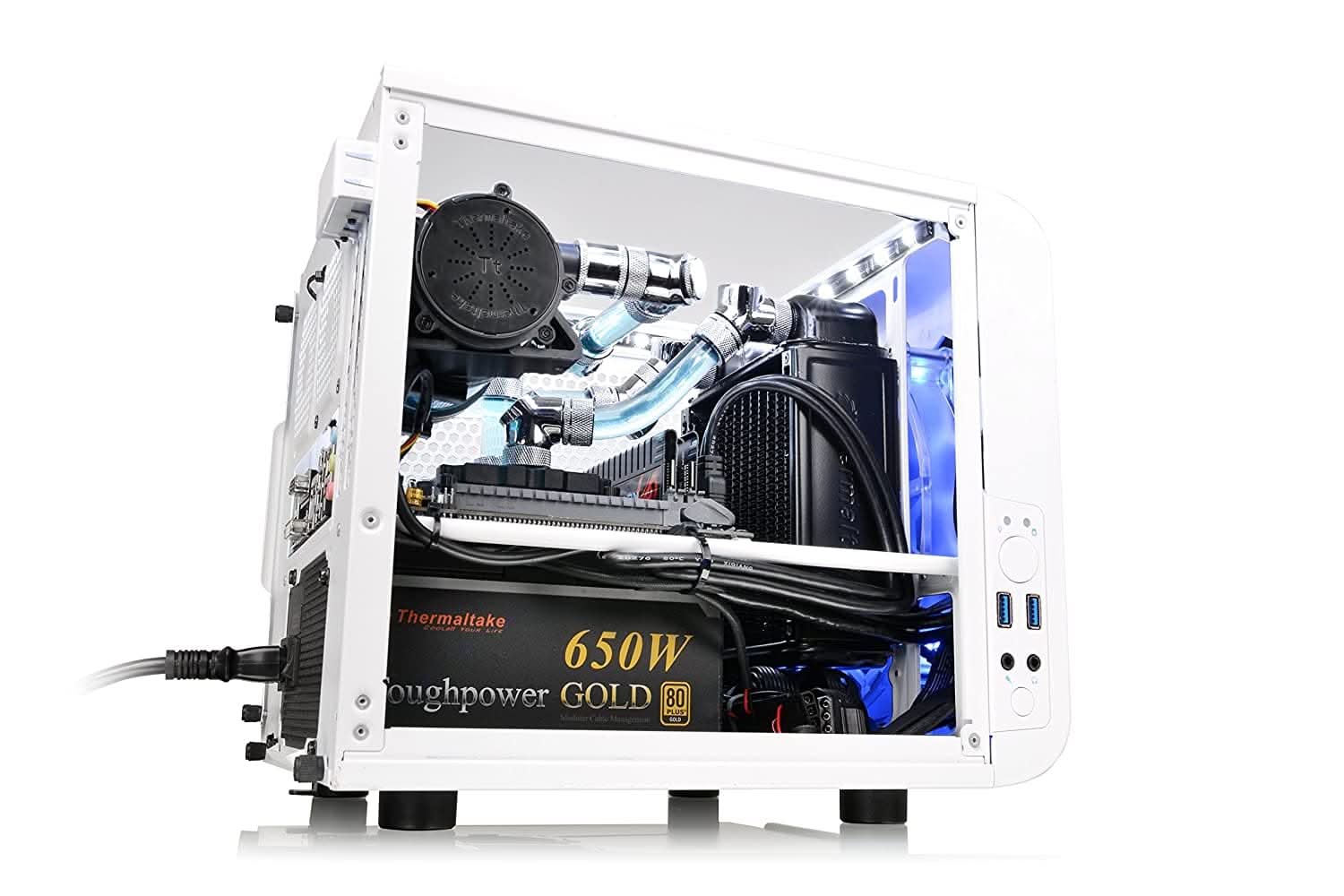

Core V1 Snow is designed with high-end gaming system compatibility, gamers can easily install up to 4 data storage devices with the modular drive racks, a dual expansion slot VGA with the length up to 285mm (outer space), a tower CPU cooler with a height of up to 140mm, together with a high wattage PSU of length up to 180mm, and still offers an 80mm cable management space.
