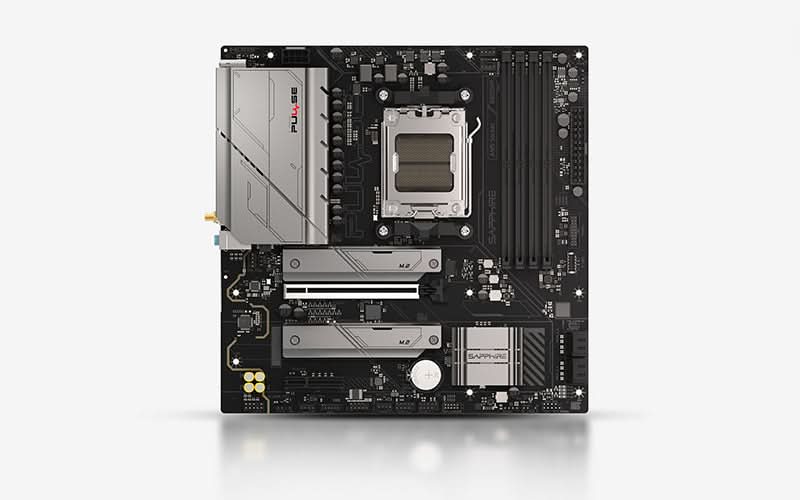

SAPPHIRE PULSE B850M WIFI DDR5, AM5, Micro-ATX Motherboard

PULSE B850M WIFI

AMD AM5 CPU SUPPORT
SAPPHIRE CORE BIOS
7+2+1 Phase CPU Power, 60A Per Phase,
Robust VRM, M.2 and PCH Cooling
Dual Channel, 7600 MHz Memory OC
PCI Express 4.0 x16
PCIe 5.0 M.2 Support

Specifications:



Chipset
AMD® B850


CPU Support
Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors


Memory Support


4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 7600 MHz(OC)





PCI-E Expansion Slots


1x PCIe 4.0 x16, 1x PCIe 4.0 x4





Display Connector
DisplayPort x1, HDMI x1


Audio


Realtek® ALC897 HD Audio, 5.1 Channel





Network
Realtek® RTL8125BG 2.5 Gigabit EthernetM.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support


Front USB Headers


1x USB 3.2 Gen1 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)





Rear Ports
1× HDMI™, 1× DisplayPort, 6× USB 2.0, 2× USB 3.2 Gen1 Type-A1× RJ45 LAN, 2× Wi Fi Antennas, 3× Audio Jacks


Storage


1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA





Dimensions


Micro-ATX, 244x244mm





Debug LED








DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
