Sequential Read/Write speeds up to 560/530 MB/s respectively. Performance varies based on system hardware configuration
Interface : SATA 6Gb/s, compatible with SATA 3Gb/s and SATA 1.5Gb/s interfaces
Form Factor : 2.5 inches
Available Capacity : up to 8TB
Designed for mainstream PCs and laptops for personal, gaming, and business use

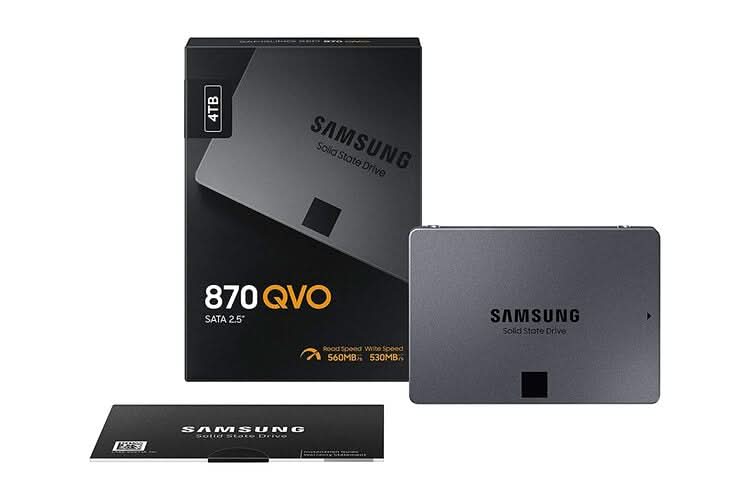

Inside the box: Solid state drive, quick guide
Specifications
General Feature
Application
Client PCs
Capacity
4,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor
2.5 inch
Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
Sequential Write
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Read (4KB, QD32)
Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Write (4KB, QD32)
Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Read (4KB, QD1)
Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Write (4KB, QD1)
Up to 35,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Environment
Average Power Consumption (system level)
Average: 3.2 W *Maximum: 5.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage
5V ± 5% Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 ? Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Software
Management SW
Magician Software for SSD management
Warranty
3 Years
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
