Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture
64-bit x86
Floating Point Unit
Encryption Engine
(AES-NI)
System Memory
48 GB RDIMM DDR4 ECC (4 x 4 GB+4 x 8GB) per controller
Maximum Memory
512 GB (8 x 64GB)
Memory Slot
8 x R-DIMM/LR-DIMM DDR4
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory
4GB (Dual boot OS protection)

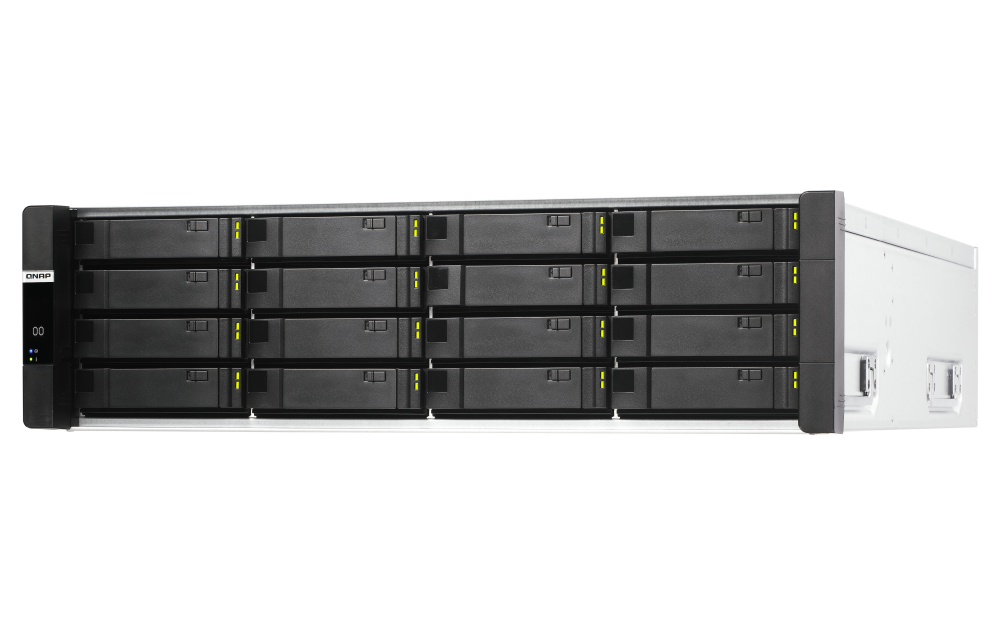

Drive Bay
16 x 3.5-inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility
3.5-inch bays: 3.5-inch SAS hard disk drives 2.5-inch SAS hard disk drives 2.5-inch SAS solid state drives
Hot-swappable
SSD Cache Acceleration Support
Read cache only
Cache for Copy To Flash (C2F)
1 per each controller (64GB M.2 SSD)
Gigabit Ethernet Port (RJ45)
3 for each controller (assign one for remote management)
10 Gigabit Ethernet Port
4 x 10GbE SFP+ for each controller
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot
2 per controller Slot 1: PCIe Gen 3 x8 (CPU) Slot 2: PCIe Gen 3 x8 (CPU)
Card dimensions for PCIe slot 1~Slot 2：215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port
2 per each controller
Note: The USB ports are for engineering purpose only. No external devices such as storage drives or UPS are supported.
Form Factor
3U Rackmount
LED Indicators
System Power LED (Green): on/off System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged LCD Status Display (Two-digit number): Status of JBOD connection
