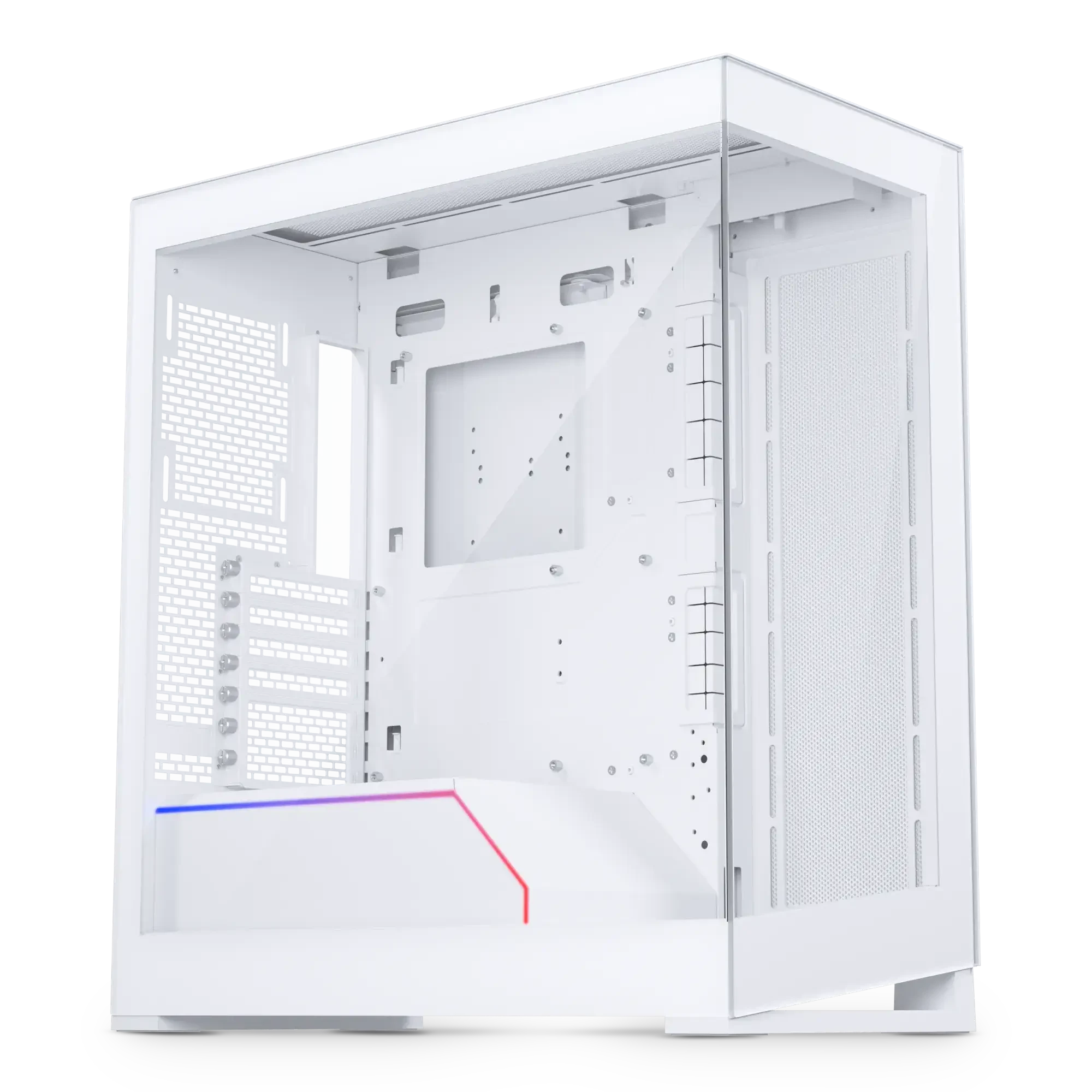

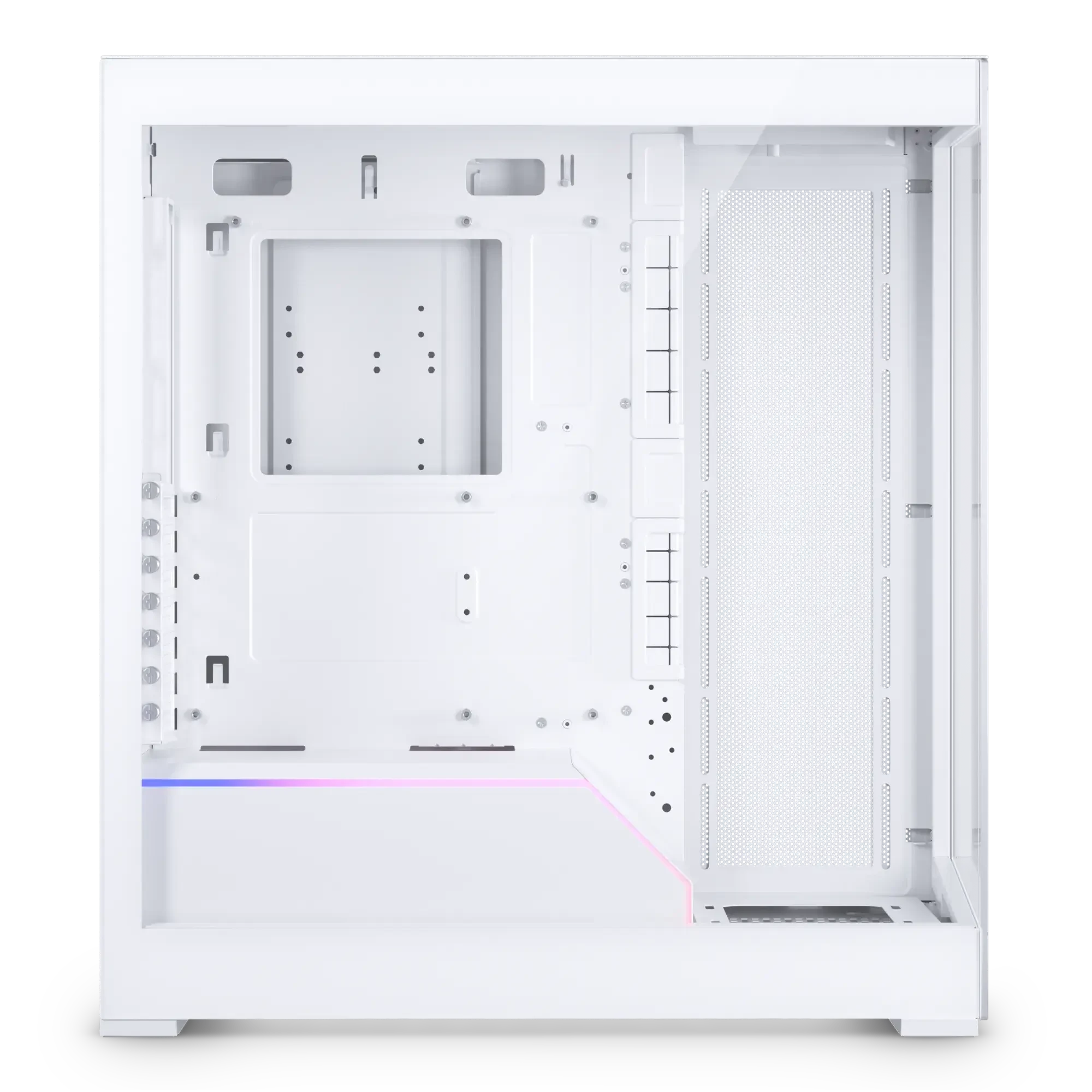

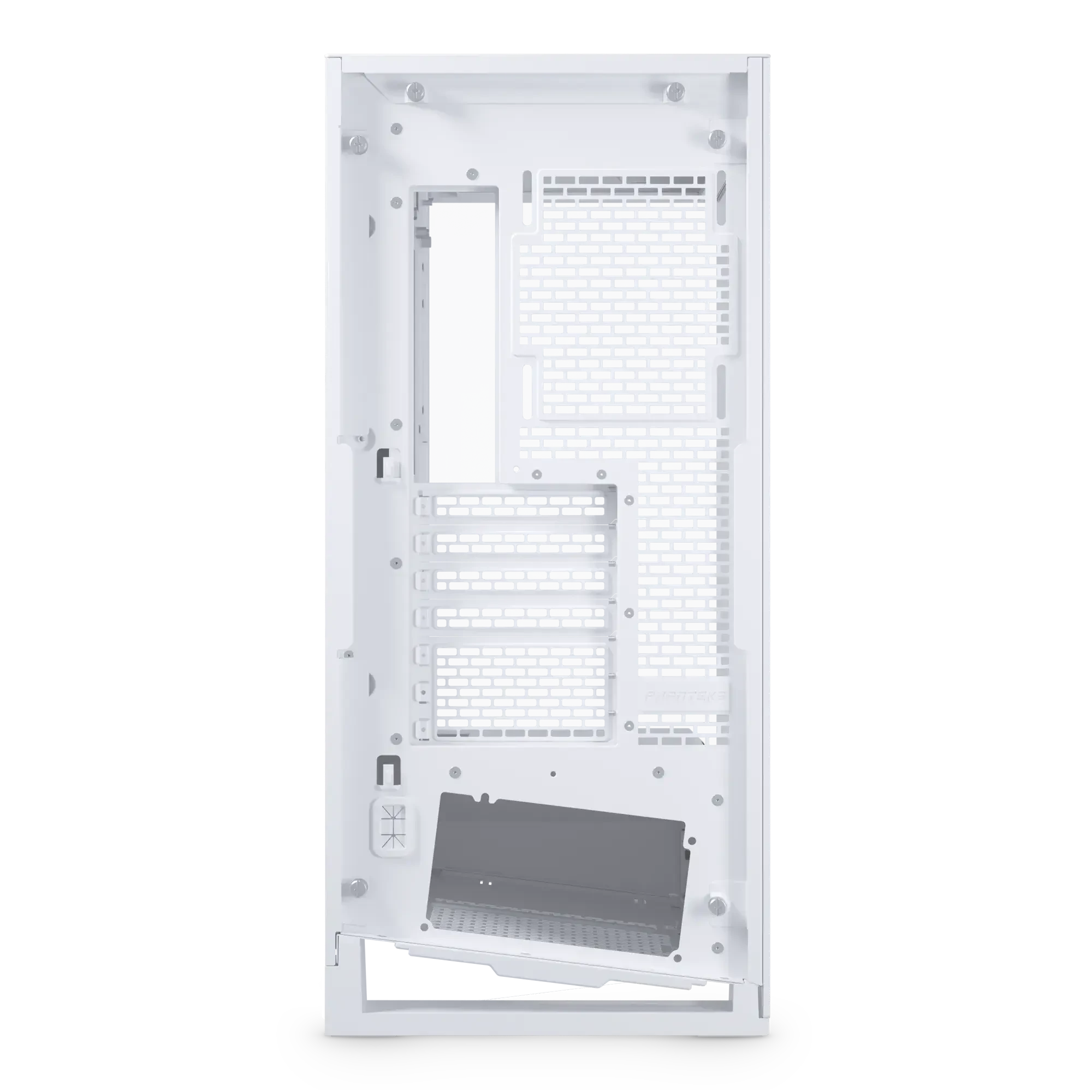

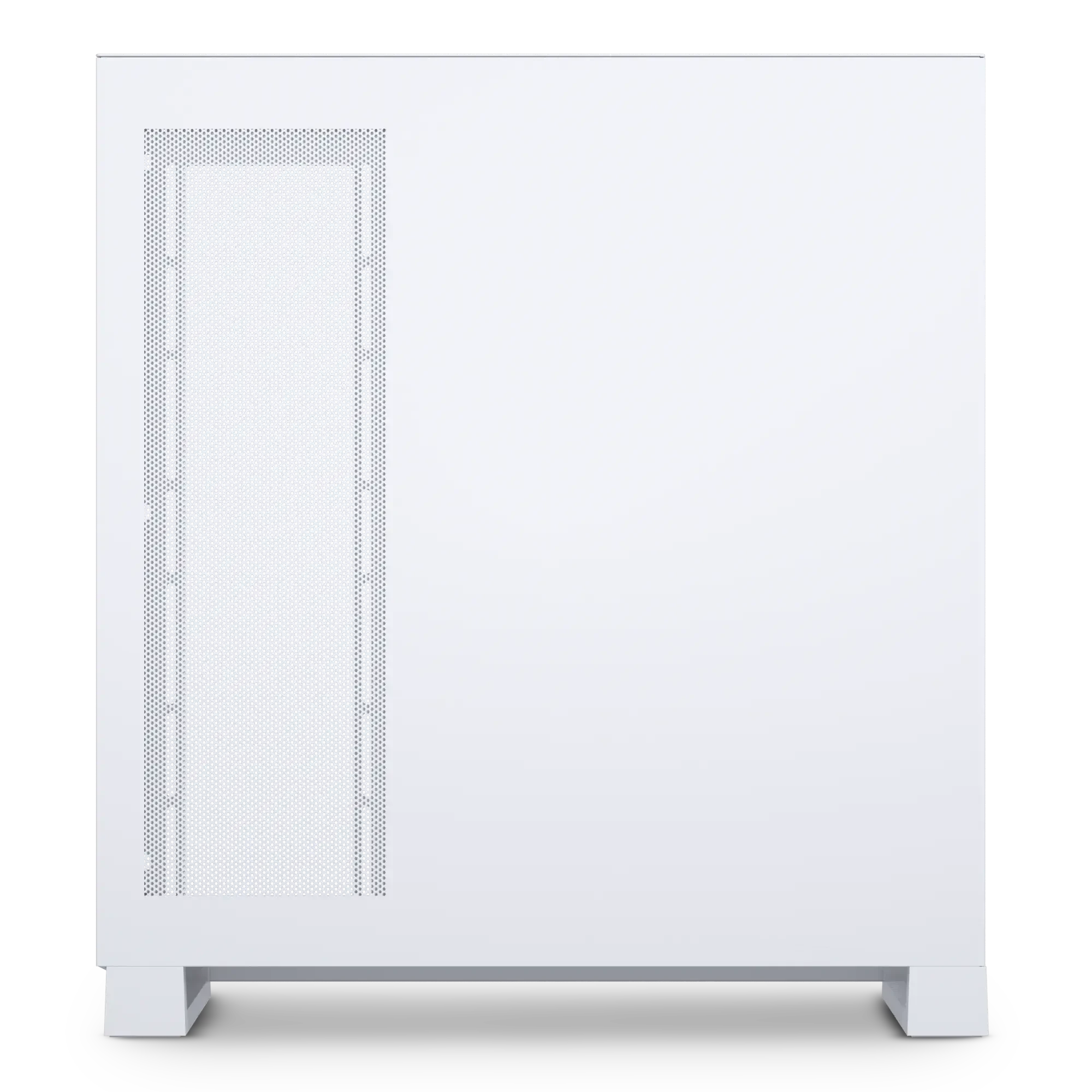

PHANTEKS NV5 TG E-ATX WHITE MID TOWER CASE (PH-NV523TG-DMW01)

Be the first to review this product

Special Price ₹10,094.00 Regular Price ₹15,707.00

Details

Specifications


Category	Specification
Model Number	PH-NV523TG_DMW01
UPC Code	886523302957
Form Factor	Mid Tower
Case Dimensions (D Ã— W Ã— H)	528 Ã— 239 Ã— 477 mm20.8 Ã— 9.4 Ã— 18.8 in
Materials	Steel chassis, Tempered glass
Side Window	Yes
Motherboard Support	E-ATX* (up to 280 mm), ATX, Micro-ATX, Mini-ITX*E-ATX limited without GPU support bracket
PCI Slots	7
Vertical GPU Support	Up to 3 slots (Riser cable sold separately)
Drive Bays	- 2.5": 4- 3.5": 3
Front I/O Ports	- 1 Ã— USB-C 3.2 Gen 2- 2 Ã— USB 3.0- Microphone / Headphone- D-RGB Mode Button- D-RGB Color Button- Power Button
Fan Support (120mm)	- Total: 8- Top: 3- Side: 3- Rear: 1- Bottom: 1
Fan Support (140mm)	Not supported
Pre-installed Fans	Not listed
Radiator Support (120mm)	- Top: up to 360mm- Side: up to 360mm- Rear: 120mm
Radiator Support (140mm)	Not supported
Radiator Dimensions	- Top: 134 Ã— 430 Ã— 62 mm- Side: 130 Ã— 420 Ã— 62 mm- Rear: 132 Ã— 170 mm
Clearance €“ CPU Cooler	180 mm / 7.08 in
Clearance €“ GPU	- Length: 440 mm / 17.32 in- Height: 170 mm / 6.69 in
Clearance €“ PSU	230 mm / 9.05 in
Net Weight	11.28 kg / 24.9 lbs
Gross Weight	13.97 kg / 30.8 lbs
Warranty	5 Years (Limited)
Scope of Delivery	- 1 Ã— NV5 Chassis- Accessory Box:€ƒ€ 6 Ã— Zip ties€ƒ€ 1 Ã— GPU Support Bracket€ƒ€ Screws:€ƒ€ƒ€ 22 Ã— Mainboard/SSD Screws€ƒ€ƒ€ 4 Ã— PSU Screws€ƒ€ƒ€ 4 Ã— Thumb Screws€ƒ€ƒ€ 12 Ã— Case Screws€ƒ€ 1 Ã— Stand-off€ƒ€ 1 Ã— Stand-off Removal Tool
