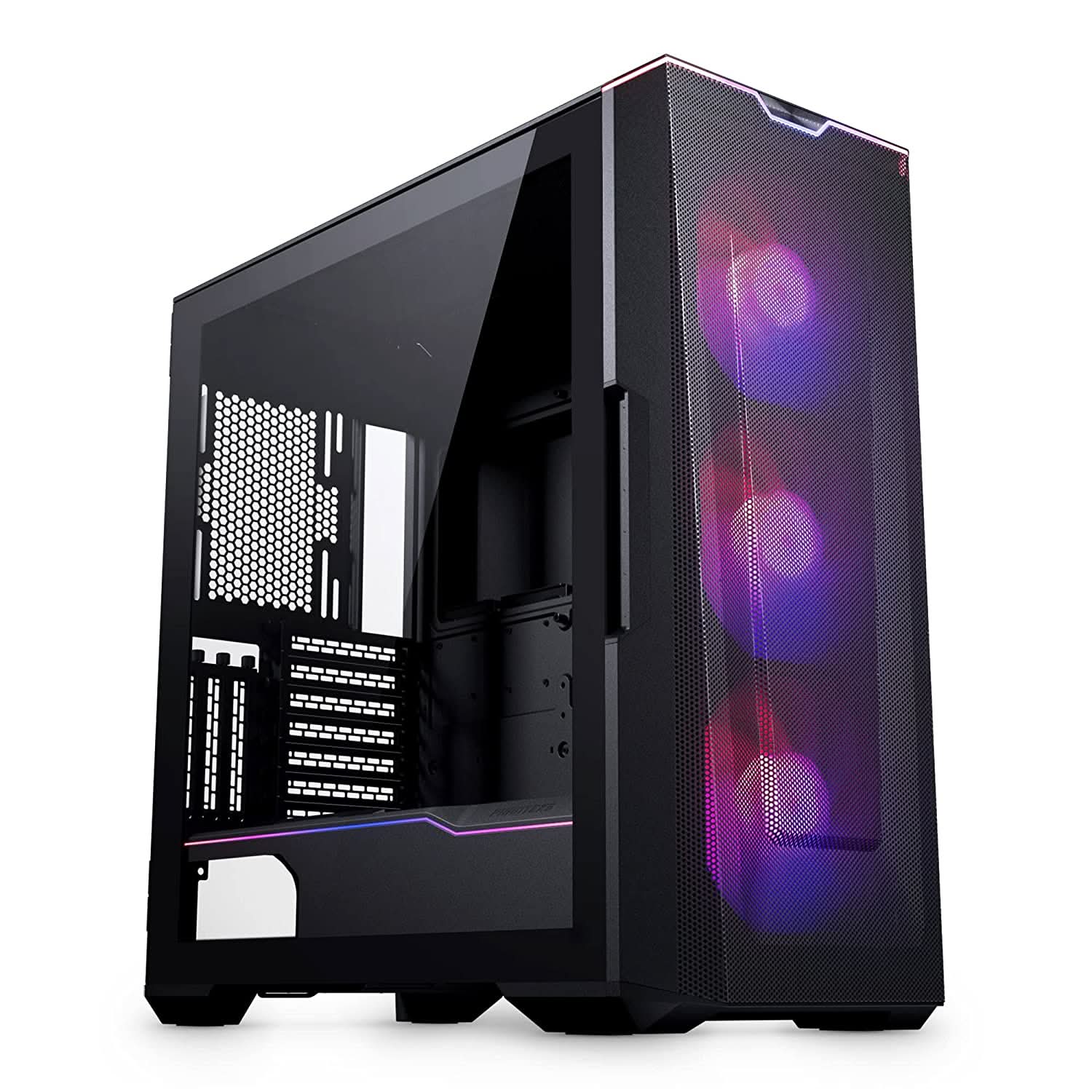

| Model Name | Eclipse G500A Black |
| Model No. | PH-EC500GA-DBK01A |
| Case Dimention | 500 x 240 x 515 mm/ 19.7 x 9.4 x 20.3 in |
| Form Factor | Mid Tower |
| Materials | Steel Chessis,Tempered Glass |
| MotherBoard Support | E-ATX(up to 280mm wide), ATX, micro-ATX, mini-ITX |
| Front IO | 1x USB 3.2 GEN 2 Type-C |
| 2x USB 3.0 | |
| Microphone/Headphone combo | |
| Power Button | |
| DRGB Mode Button | |
| DRGB Colour Button | |
| Connectors | Power Switch |
| D-RGB Expansion | |
| D-RGB Third Party | |
| D-RGB Motherboard | |
| HD-Audio | |
| USB 3.0 | |
| USB 3.2 GEN 2 Type-E | |
| SATA Power | |
| Side Window | Tempered Glass Side Panel |
| PCle Slots | 7 |
| Vertical GPU | Yes, With Optional Vertical GPU Bracket |
| Internal 3.5'' bay | 10(2xincluded) |
| Internal 2.5'' bay | 9(2xincluded) |
| Total Fan Mounts | 7x 120mm/ 7 x 140mm |
| Front Fan | 3 x 120mm/ 3 x 140mm(3x140mm D-RGB included) |
| Top Fan | 3 x 120mm/ 3 x 140mm |
| Rear Fan | 1 x 120mm/1 x 140mm |
| Included Fans | 3 x M25-140 PWM D-RGB Black |
| Front Radiator | up to 360mm/ up to 420 mm |
| Top Radiator | up to 360mm/ up to 280 mm |
| Rear Radiator | 120 |
| GPU Length | 435mm/17.2in |
| CPU Cooler Height | 185mm/7.3in |
| PSU | 195 mm or 250 mm(4 HDD brackets/2 HDD brackets used) |
| Front Panel fan thickness | 33mm for fan or radiator |
| Front 360 radiator thickness | 90mm thickness |
| Front 420 radiator | Maximum size: 142 x 475 x 90 mm |
| Top 360 radiator thickness | 70mm thickness |
| Package Dimension | 325 x 610 x 610 mm |
| Net Weight | 10.53 /10.68 KG |
| Gross Weight | 12.70 / 12.85 KG |
| Warranty | 5 Years |
| Featured | Yes |
|---|---|
| brand | Phanteks |
