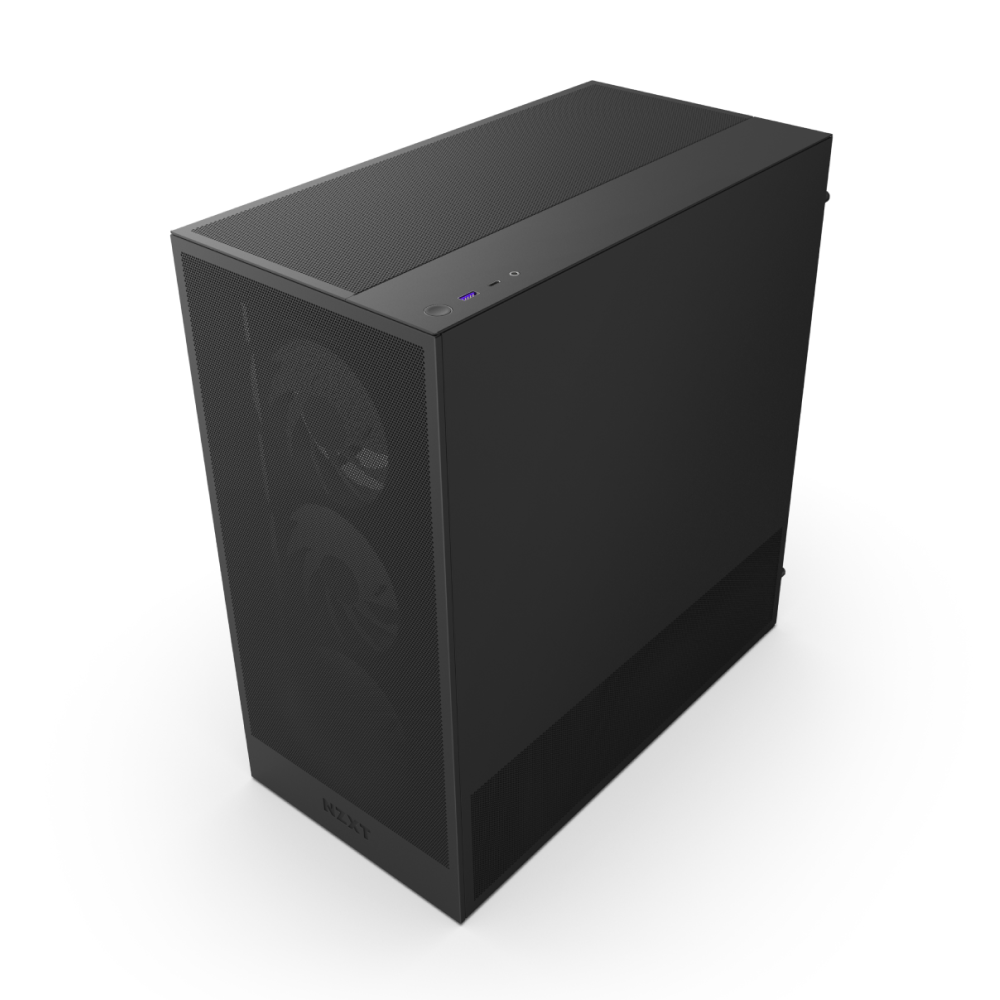

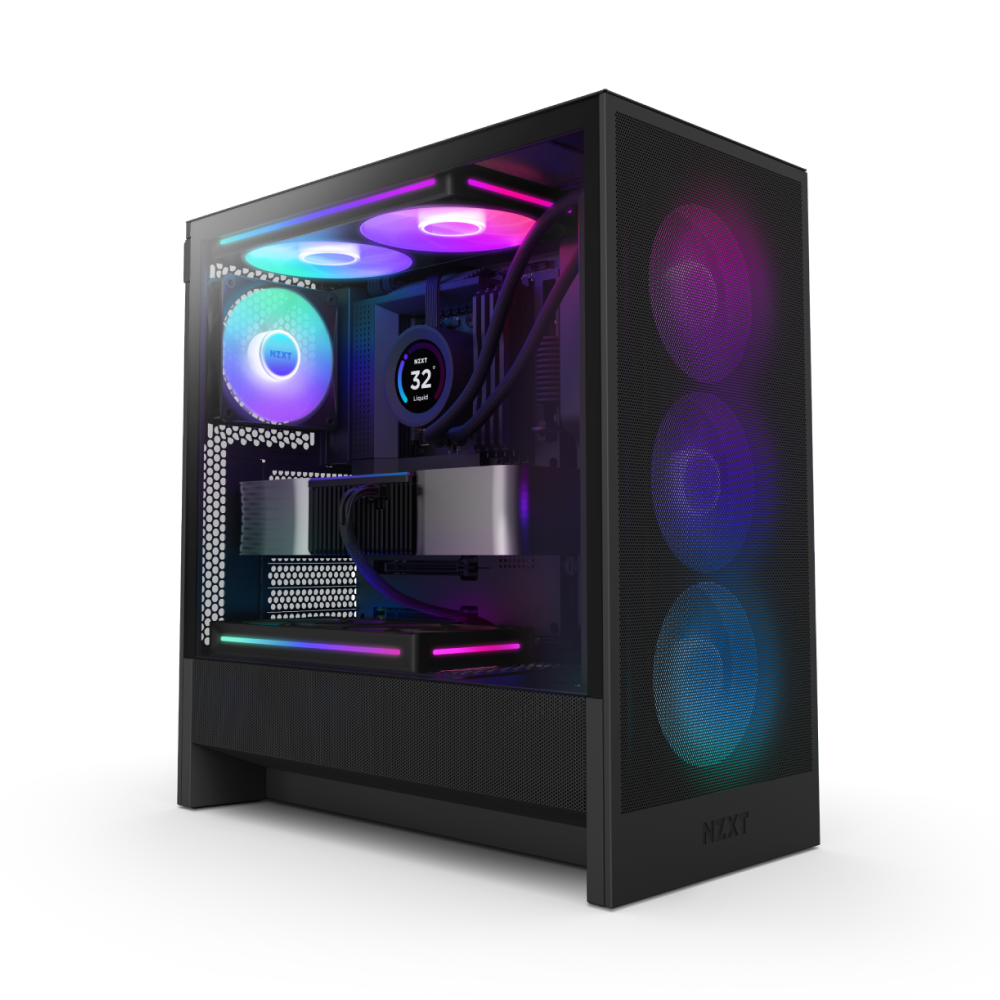

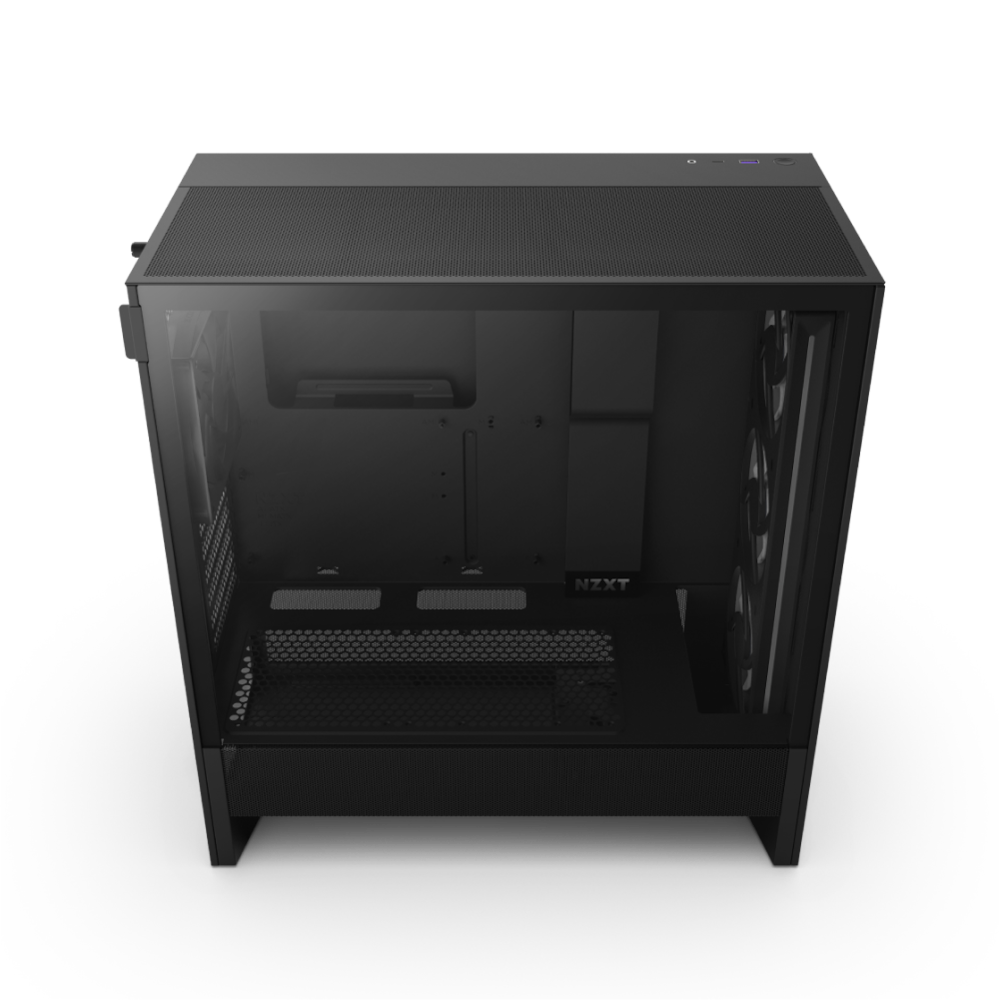

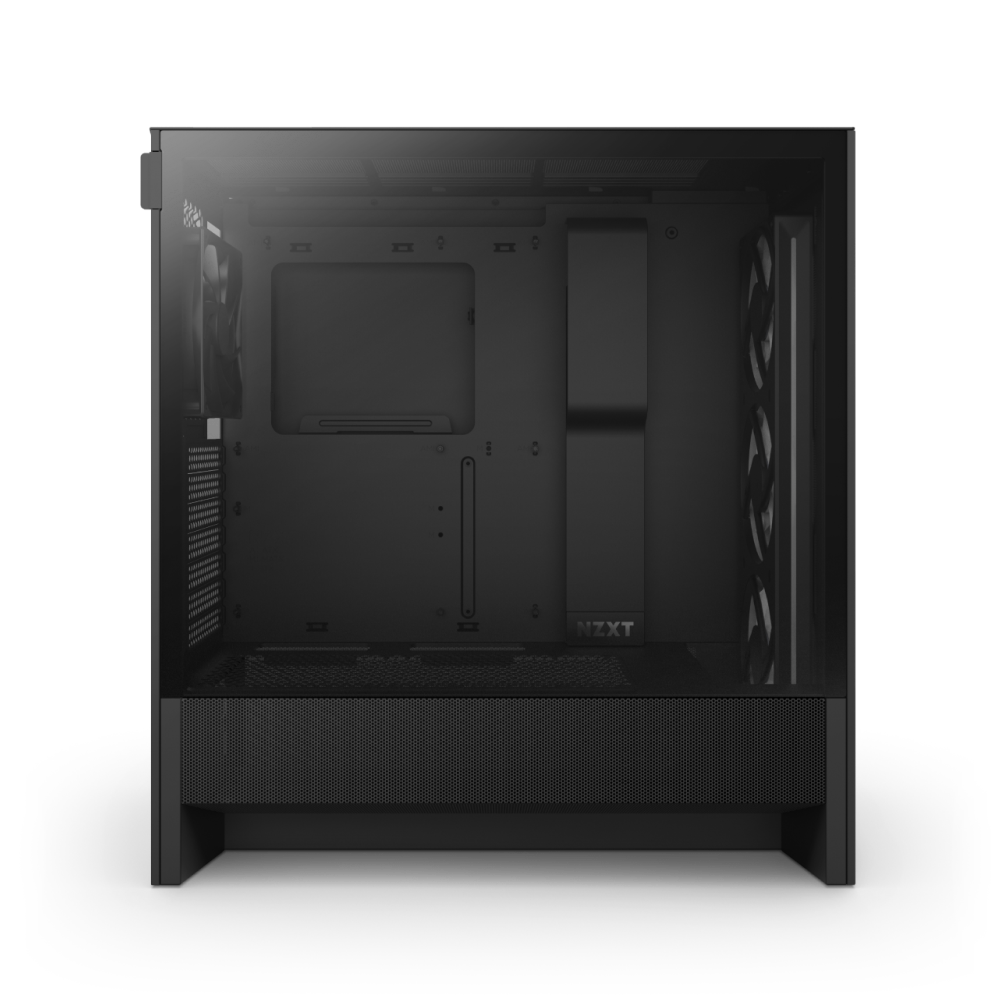

NZXT CHASSIS H5 FLOW RGB (2024) COMPACT MID-TOWER ATX CASE ALL BLACK - CC-H52FB-R1

Special Price ₹12,641.00 Regular Price ₹18,999.00

Overview:

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support€”all in a compact mid-tower form factor.
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.


Category	Specification
Motherboard Support	E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type	Mid-Tower
Case Material	SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet)	465 mm / 18.31 in
Width	225 mm / 8.86 in
Depth	430 mm / 16.93 in
Weight	7.63 kg / 16.82 lb
Compatibility & Clearance
CPU Cooler Height	Up to 170 mm
GPU Length	Up to 410 mm
PSU Length	Up to 200 mm
Cable Management	Up to 28.7 mm
Top Radiator	Up to 240 mm (280 mm with low-profile memory)
Top Mounted Radiator & Fan Combined Thickness	Up to 55 mm
Front Ports
USB 3.2 Type-A	1
USB 3.2 Gen 2x2 Type-C (20 Gbps)	1
Headset Audio Jack	1
Expansion Slots
Standard	7
Vertical	0
Drive Bays
2.5"	2
3.5"	1
Fan Support
Front	3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
Top	2 x 120 mm / 2 x 140 mm
Bottom	2 x 120 mm
Rear	1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
Front	Up to 360 mm
Top	Up to 240 mm (280mm with low-profile memory only)
Fan Specs - F360 RGB Core (Case Version)
Speed	1,700 ± 200 RPM
Airflow	50.1 CFM
Static Pressure	1.27 mm-H‚‚O
Noise Level	23.3 dBA
Fan Connector	3-pin
Fan Specs - F120Q (Case Version)
Speed	1,350 ± 150 RPM
Airflow	60.2 CFM
Static Pressure	1.05 mm-H‚‚O
Noise Level	24.1 dBA
Fan Connector	3-pin
General
Warranty	2 Years
Model Number	CC-H52FW-R1 (White) / CC-H52FB-R1 (Black)
UPC	810074845922 (White) / 810074845939 (Black)
EAN	5056547205861 (White) / 5056547205878 (Black)
