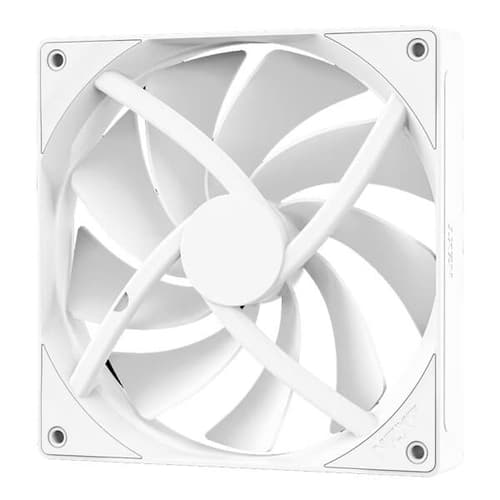

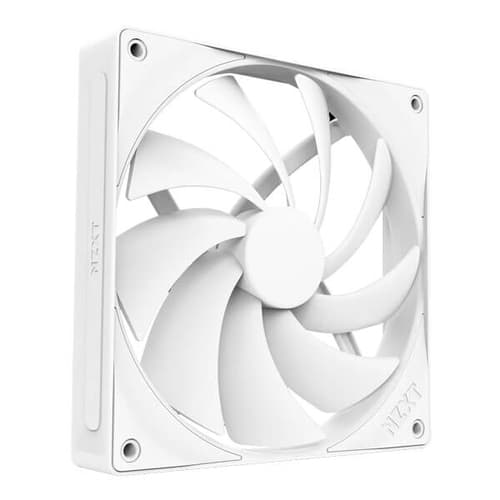

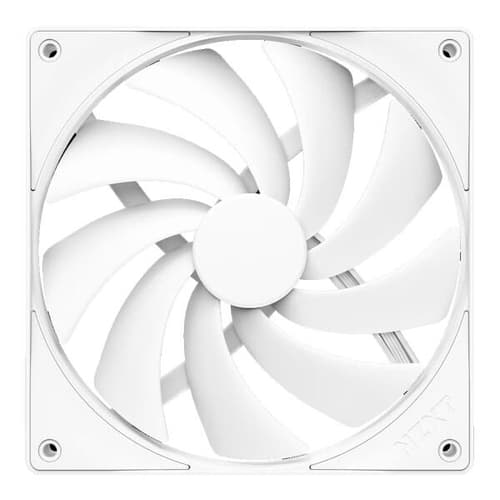

NZXT Quiet Airflow Fans offer high-performance, low-noise cooling for heat-prone PCs. Optimized blades and a chamfered frame provide powerful concentrated air, while fluid dynamic bearings and PWM control keep things quiet and efficient.
Nine sickle-style blades are optimized to move large amounts of air, ensuring versatile use for intake or exhaust.
Minimal gap between blade edges and frame maximizes the spinning area for higher airflow and reduced turbulence.
Chamfered frame design directs air in a powerful concentrated flow pattern, traveling far into the case to cool vital components.
Fluid dynamic bearings provide unwavering stability, low-noise operation, and a 60,000-hour lifespan.
PWM control dynamically adjusts fan speed for higher output or lower noise based on system temperatures for efficient cooling.
Sturdy frame with rubberized corners absorbs vibrations for low-noise operation, even at high speeds.
Optimized for Airflow
Nine sickle-style blades move large amounts of air, whether used for intake or exhaust.
Efficient Design
Minimal blade-to-frame gap maximizes the spinning area for optimal performance.
Powerful Cooling
Chamfered frame directs air in a concentrated pattern that travels far into the case.
Specification
Model Number
RF-Q14SF-W2
Color
White
DIMENSIONS
Height
140 mm
Width
140 mm
Depth
25 mm
COOLING
Speed
500-1,500 ± 150 RPM
Airflow
102.90 CFM
Static Pressure
1.77 mm H‚‚O
Noise
29.8 dBA
Power Consumption
12V DC, 0.32A, 3.84W
Bearing
Fluid Dynamic Bearing
Connector
4-pin PWM
Cable Length
1 x 600 mm
Material
Plastic, Rubber, PCB
Life
60,000 Hours
Warranty
2 Years
Note
