Specifications
| Product Details | |

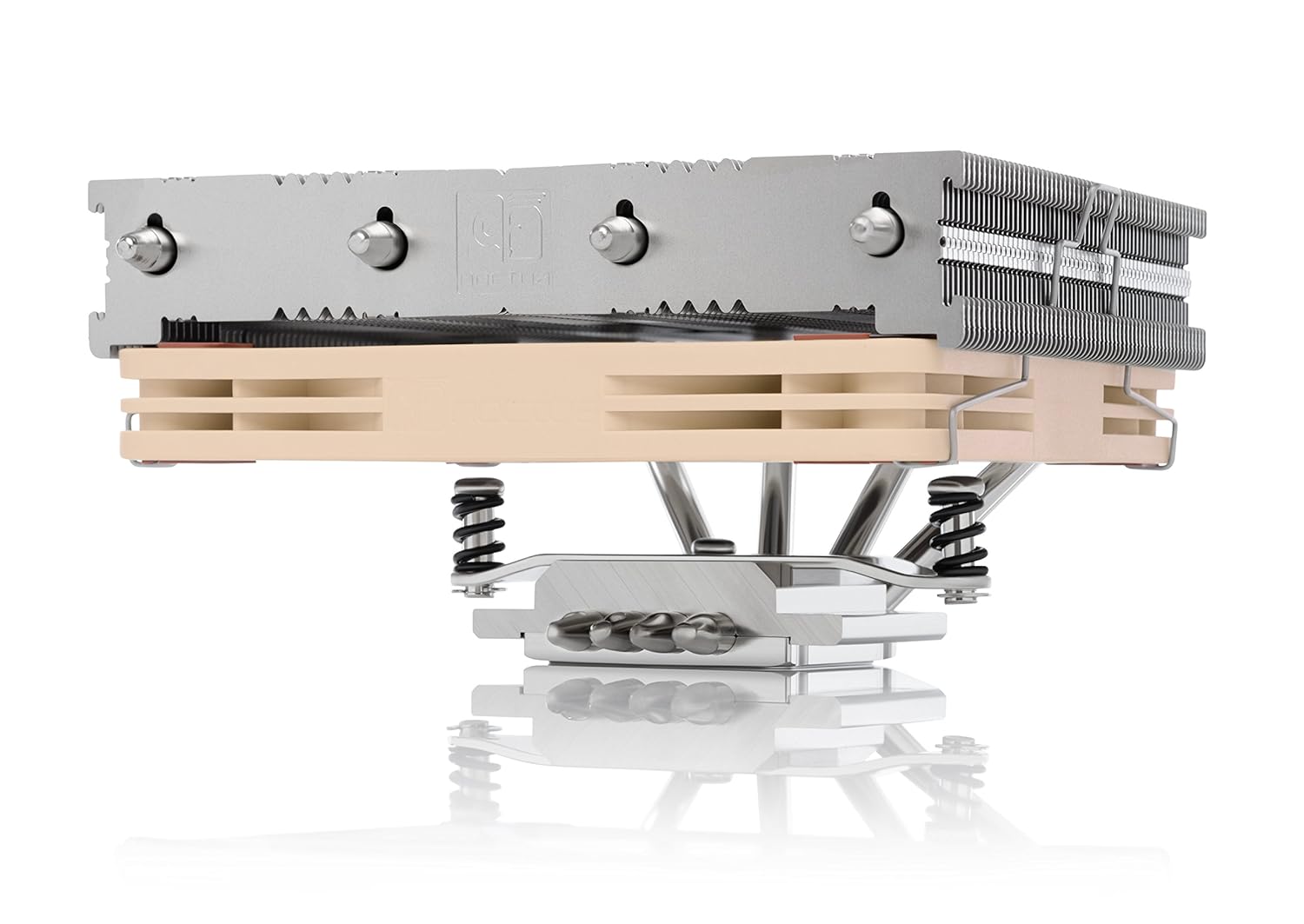

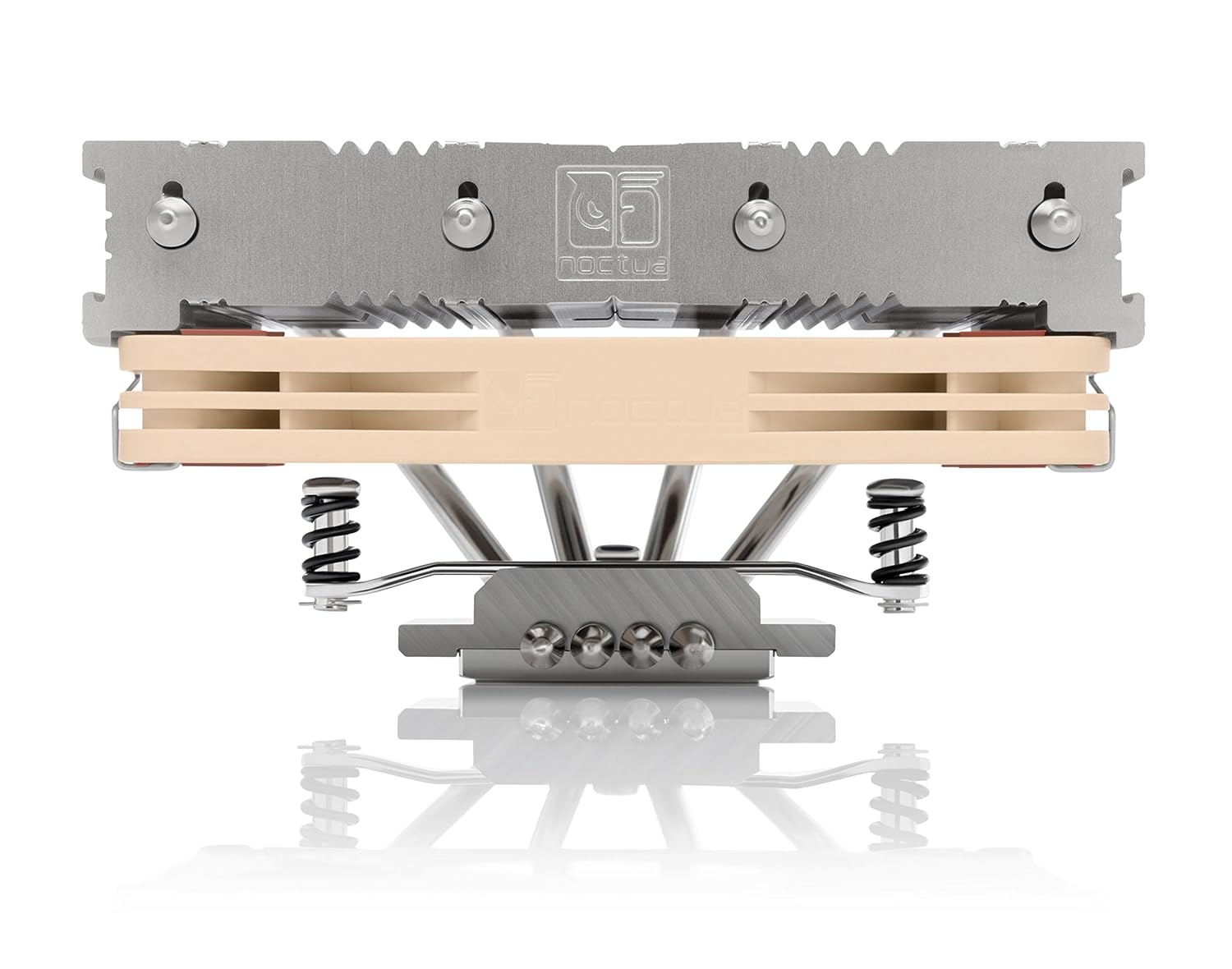

| Notes and warnings | The NH-L12S is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. ?While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L12 is recommended for your CPU. |
| Cooler Specification | |
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ (backplate required) |
| Height (without fan)Â | 70 mm |
| Width (without fan)Â | 128 mm |
| Depth (without fan)Â | 146 mm |
| Weight (without fan)Â | 390 g |
| Height (with fan)Â | 70 mm |
| Width (with fan)Â | 128 mm |
| Depth (with fan)Â | 146 mm |
| Weight (with fan)Â | 520 g |

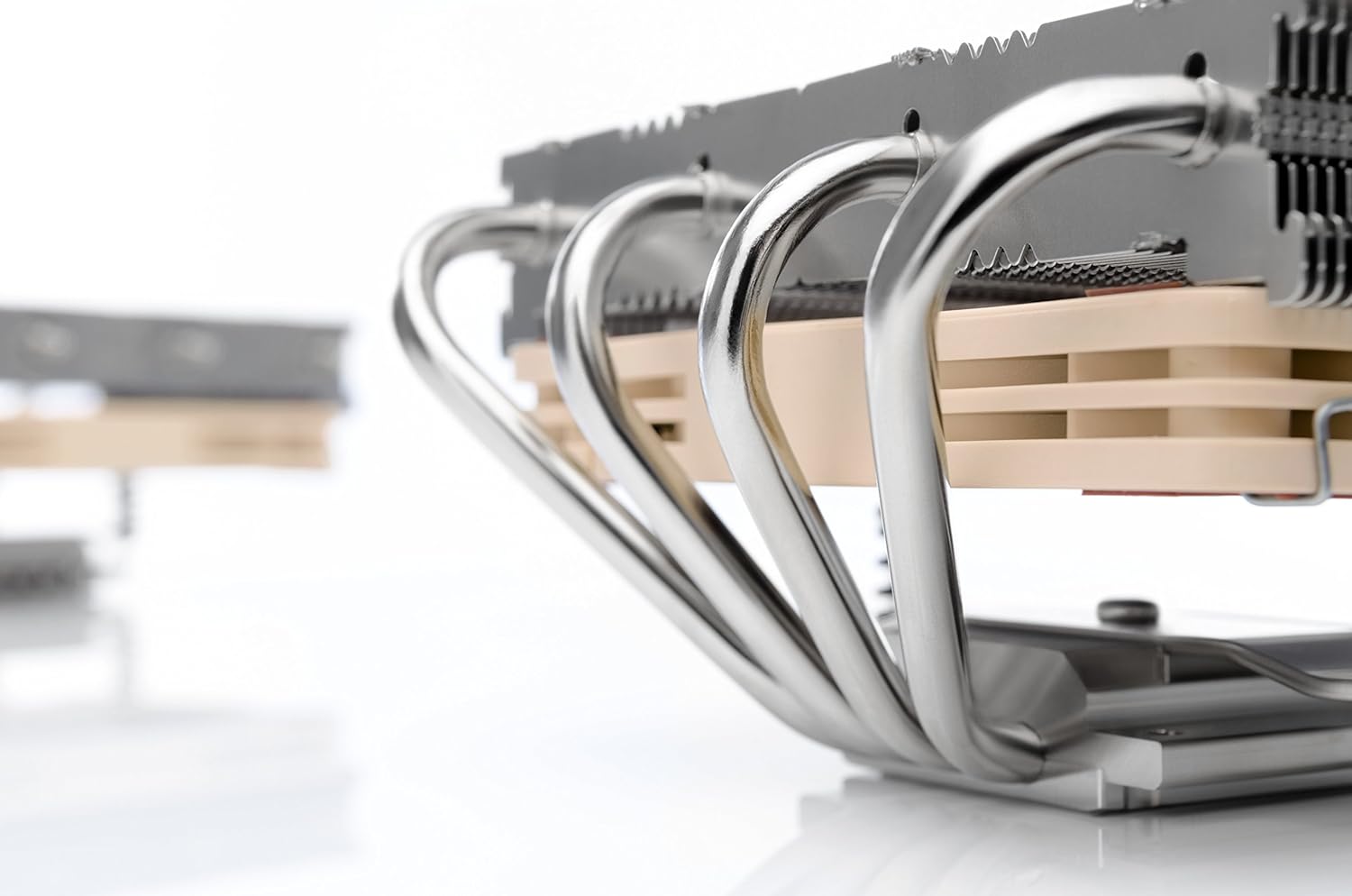

| Material | Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating |
| NSPRÂ | 88 |
| Fan compatibility | 120x120x15 & 120x120x25 |

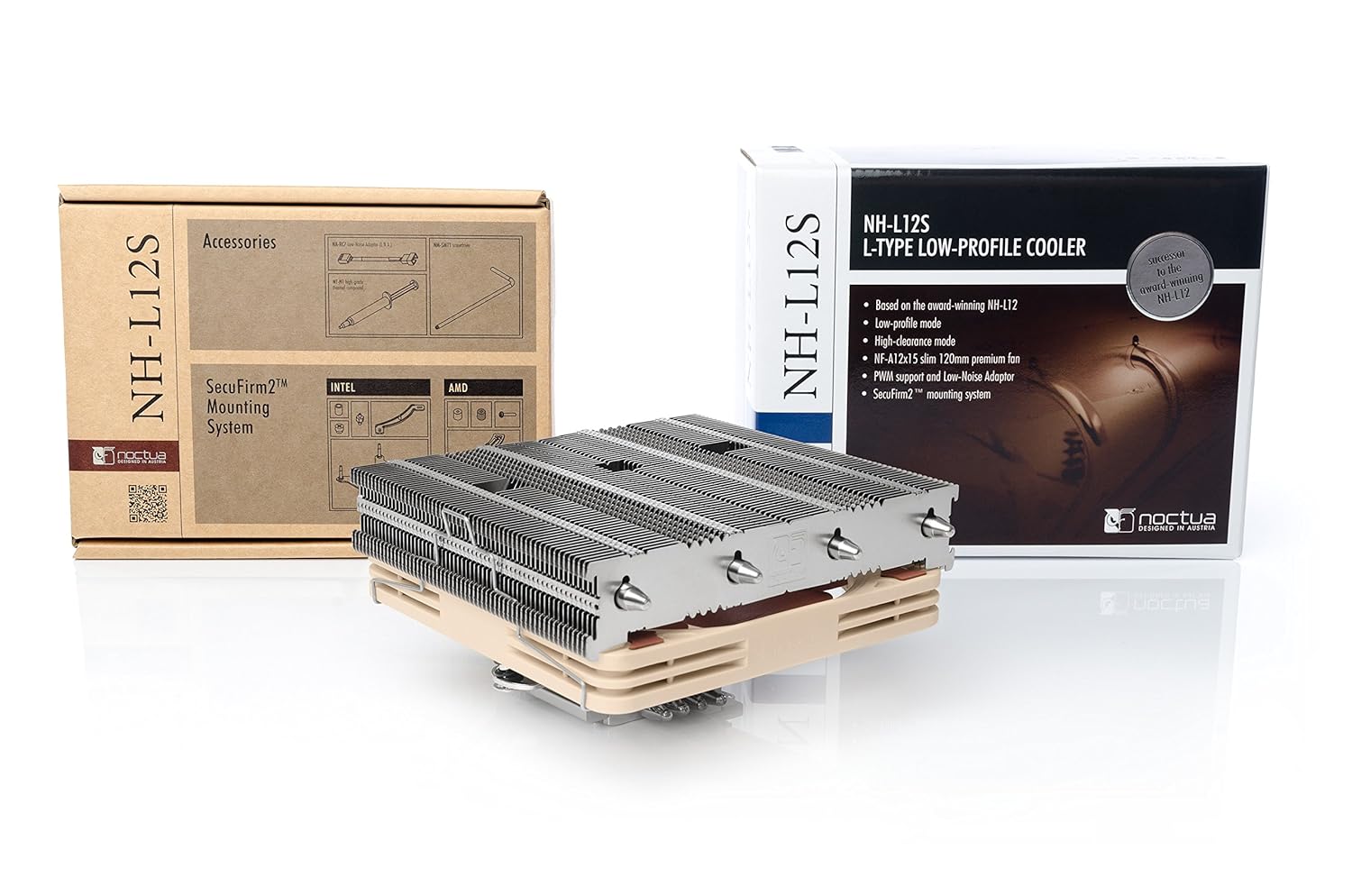

| Scope of delivery | 1x NF-A12x15 PWM premium fan |
| Low-Noise Adaptor (L.N.A.) | |
| NT-H1 high-grade thermal compound | |
| SecuFirm2ô mounting kit | |
| Noctua metal case-badge | |
| Warranty | 6 Years |
| FAN Specification | |
| Model | 1x Noctua NF-A12x15 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%)Â | 1850 RPM |
| Max. rotational speed with L.N.A. (+/- 10%)Â | 1400 RPM |
| Min. rotational speed (PWM, +/-20%)Â | 450 RPM |
| Max. airflow | 94,2 m≥/h |
| Max. airflow with L.N.A. | 70,8 m≥/h |
| Max. acoustical noise | 23,9 dB(A) |
| Max. acoustical noise with L.N.A. | 16,8 dB(A) |
| Input power | 1,56 W |
| Voltage range | 12 V |
| MTTFÂ | > 150.000 h |
| Featured | Yes |
|---|---|
| brand | Noctua |
