| CHIPSET | INTEL Z790 |
| CPU | Support IntelÆ Coreô 14th/ 13th/ 12th Gen Processors, IntelÆ PentiumÆ Gold and CeleronÆ Processors |
| LGA 1700 | |
| MEMORY | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 6600+ MHz | |
| ï 1DPC 2R Max speed up to 6400+ MHz | |
| ï 2DPC 1R Max speed up to 6000+ MHz | |
| ï 2DPC 2R Max speed up to 5600+ MHz | |
| Supports IntelÆXMP 3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| ONBOARD GRAPHICS | 1x HDMIô |
| Support HDMIô 1.4 with HDR, maximum resolution of 4K 30Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| SLOT | 2x PCI-E x16 slot |
| 3x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) | |
| PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| STORAGE | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | RealtekÆRTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | IntelÆWi-Fi 6E |
| The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothÆ5.3, FIPS, FISMA | |
| * Wi-Fi 6E 6GHz may depend on every countryÃs regulations and will be ready in Windows 11. | |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
| AUDIO | RealtekÆALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| INTERNAL IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 4x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x TBT connector (JTBT, supports RTD3) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 3.2 Gen1 Type A ports | |

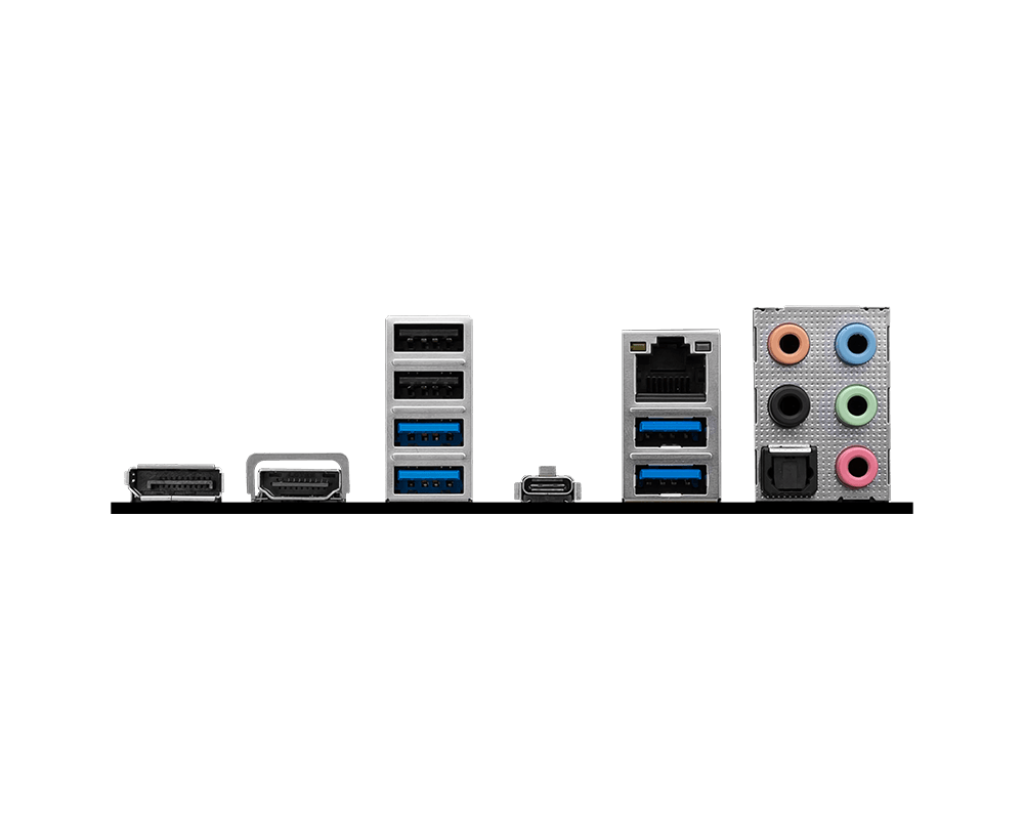

| BACK PANEL PORTS | DisplayPort |
| HDMIô | |
| USB 2.0 | |
| USB 3.2 Gen 2x2 20Gbps (Type-C) | |
| 2.5G LAN | |
| Audio Connectors | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| S/PDIF-OUT | |
| OPERATING SYSTEM | Support for WindowsÆ11 64-bit, WindowsÆ10 64-bit |
| PCB INFO | ATX |
| 243.84mmx304.8mm |
| Featured | Yes |
|---|---|
| brand | MSI |
