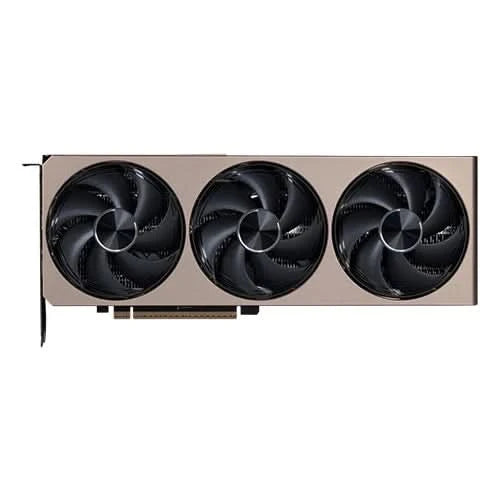

STORMFORCE FAN:Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate:Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
WAVE-CURVED 3.0:Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
AIR ANTEGRADE FIN:Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

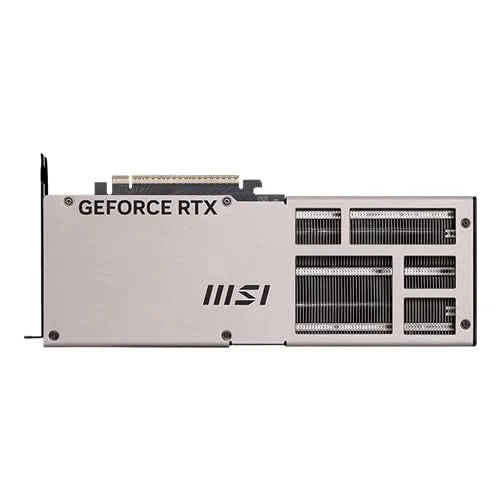

Metal Backplate:A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
MSI Center:The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
GRAPHICS
Model
RTX-5070-Ti-16G-INSPIRE-3X-OC
Chipset
NVIDIA GEFORCE
GPU
RTX 5070 Ti
Engine Clock
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
PCI EXPRESS
5.0
MEMORY CLOCK
28 Gbps
MEMORY SIZE
16 GB
MEMORY INTERFACE
256-BIT
MEMORY TYPE
GDDR7
OpenGL
4.6

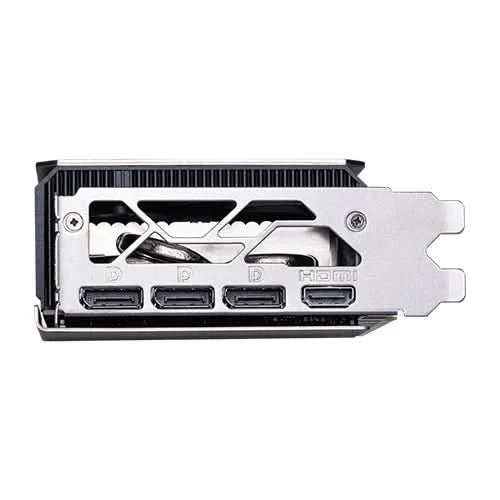

PORTS
HDMI,DisplayPort
DirectX
12 Ultimate
RESOLUTION
7680 x 4320
COOLER
Triple Fan
Max Display Support
4
Recommended PSU
750W
GPU CORE (CUDA CORE)
8960
POWER CONNECTORS
1 x 16-pin
WARRANTY
3 Years
NOTE**
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
