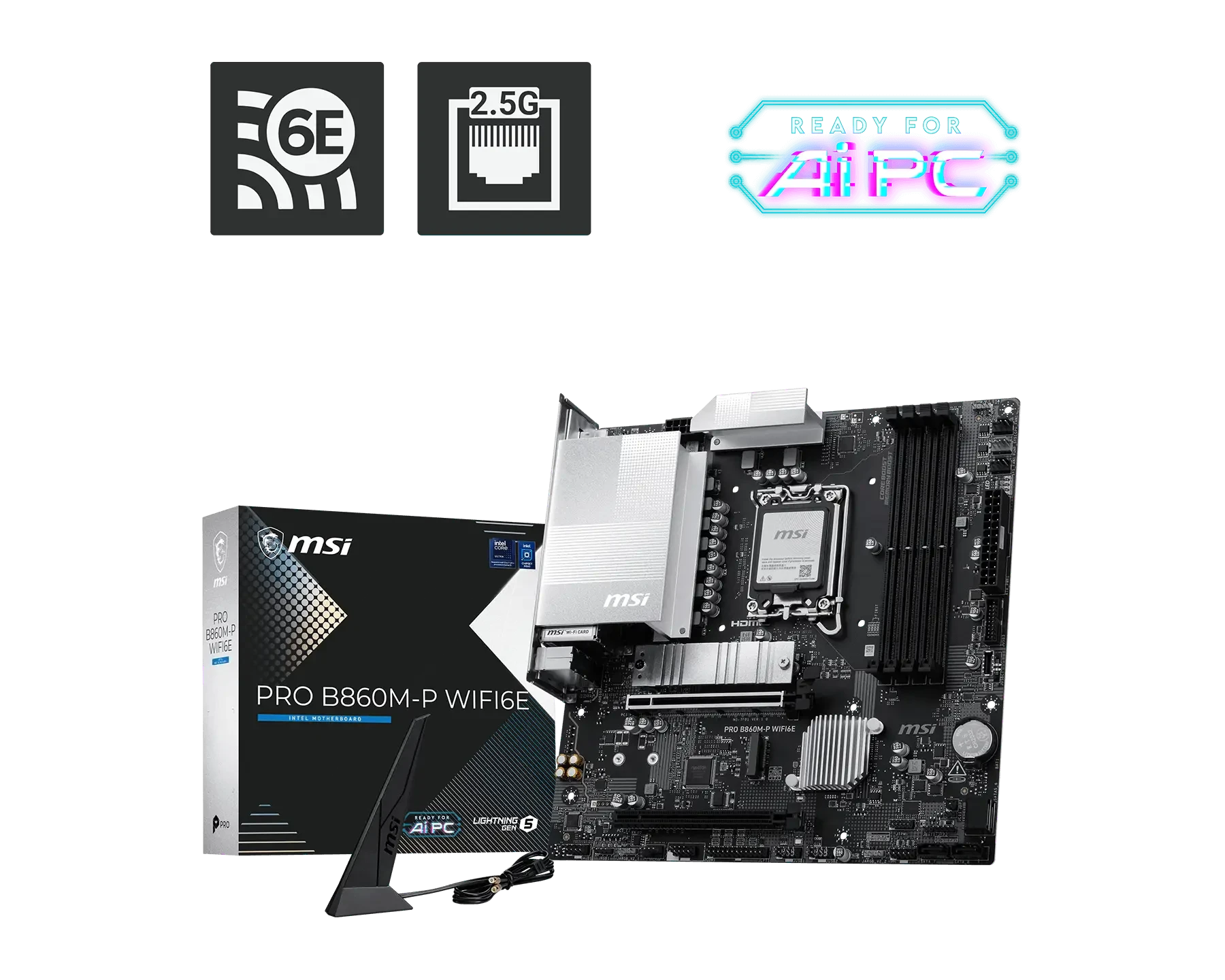

MSI PRO B860M-P WIFI6E LGA 1851 Motherboard

PRO B860M-P WIFI6E



Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Ultra Performance: Direct 6 phases with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are built for high performance system and non-stop experience
EZ DIY: EZ PCIe Clip II and EZ Antenna
Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Specification:



Chipset
INTEL B860



CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851



Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 8800+ MT/s• 1DPC 2R Max speed up to 7200+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM• The DIMM slots on this motherboard only have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.



Onboard Graphics
1x HDMI™Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*2x DisplayPortSupport DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*1x D-SubSupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Slot
2x PCI-E x16 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)



Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio



Storage
2x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G (Qty)*Please refer to the manual for M.2 SSD heatsink restrictions.



RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 5Gbps Type C (Front)



LAN
Realtek® 8125 2.5Gbps LAN



Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x PUMP_SYS Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Printer Port (JLPT)1x Com Port (JCOM)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 5Gbps Type C ports



WIRELESS LAN & BLUETOOTH
Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3**, FIPS, FISMA* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.



LED FEATURE
4x EZ Debug LED1x EZ Memory Detection LED


OPERATING SYSTEM
Support for Windows 11 64-bit


PCB Info
mATX243.84mmx243.84mm
