1x Thunderbolt 4 (rear)
40Gbps with TB devices, 20Gbps with USB4, 10Gbps USB 3.2
Supports 5V/3A (15W) charging
Daisy-chain up to 3 TB4 or 5 TB3 devices
Supports up to 8K display
USB
Rear:
• 2x USB 2.0
• 2x USB 5Gbps Type-A
• 1x USB 5Gbps Type-C
• 1x USB 10Gbps Type-A
Front:
• 4x USB 2.0
• 4x USB 5Gbps Type-A
• 1x USB 10Gbps Type-C
LAN
Realtek 8126 5Gbps LAN
Internal I/O
1x Thunderbolt5 card connector
ATX_PWR, CPU_PWR x2, PCIE_PWR (8-pin)
CPU Fan, Pump/Sys Fan, 3x Sys Fan
Front Panel x2
Chassis Intrusion
Front Audio
COM Port
Tuning Controller (JDASH)
ARGB V2 x2, RGB x1
TPM 2.0 Header
USB 2.0 x4
USB 5Gbps x4
USB 10Gbps Type-C x1
Wireless LAN & Bluetooth
Intel Wi-Fi 7 (M.2 Key-E module)
2.4/5/6GHz (320MHz), up to 5.8Gbps
802.11 a/b/g/n/ac/ax/be
Bluetooth 5.4, MLO, 4KQAM
LED Features
4x EZ Debug LED
1x EZ Memory Detection LED

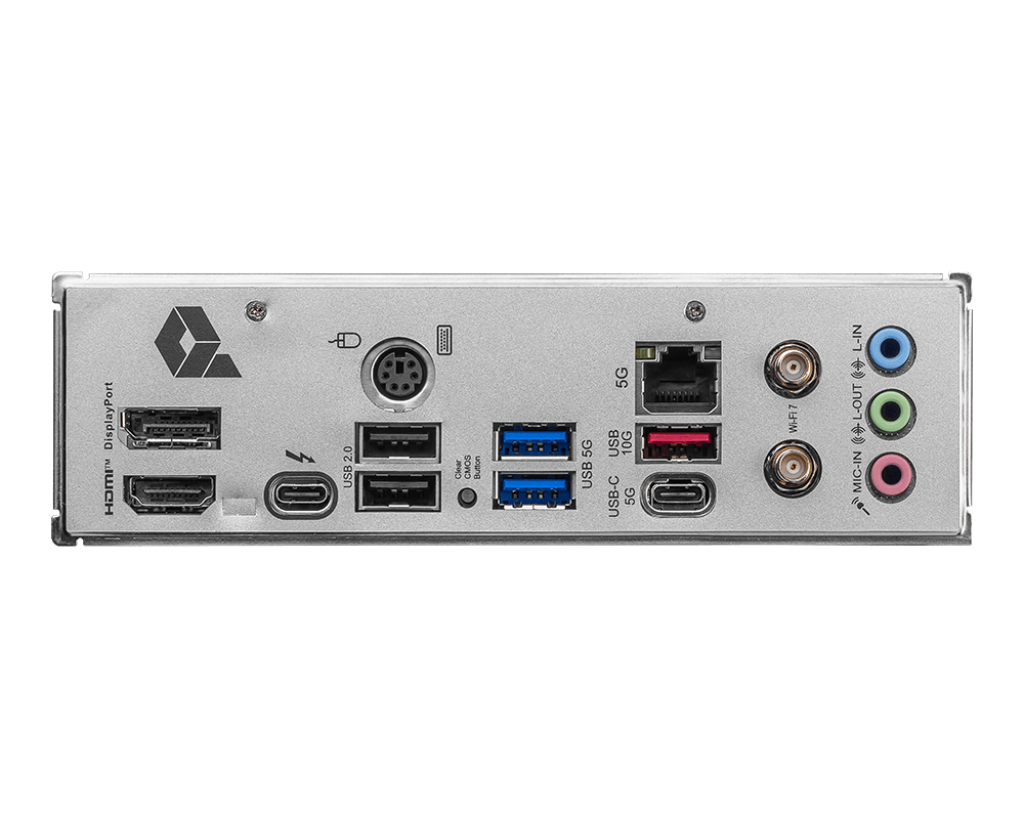

Back Panel Ports
DisplayPort
Keyboard/Mouse
USB 5Gbps Type-A
5G LAN
Wi-Fi/Bluetooth
Audio Ports
HDMI
Thunderbolt 4 (Type-C)
USB 2.0
Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-C
