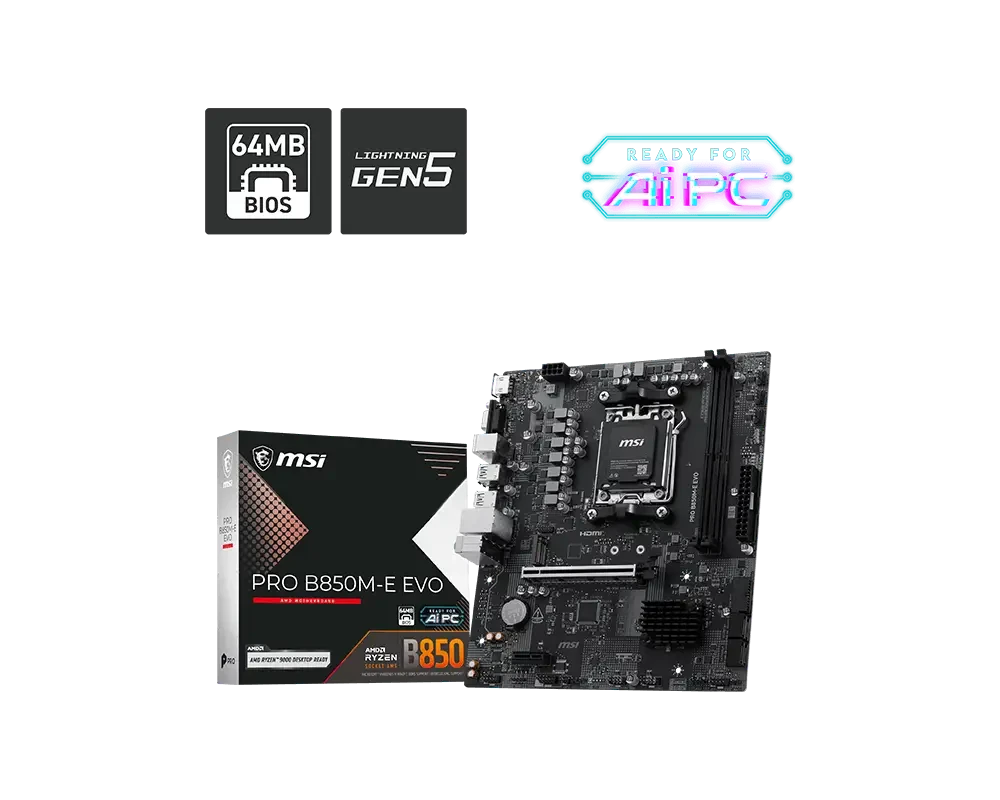

MSI PRO B850M-E EVO DDR5 AM5 Motherboard

PRO B850M-E EVO Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) Ultra Performance: Direct 6+2+1 Power System with P-PAK, an 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material EZ DIY: EZ PCIe Clip II Lightning Fast Experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience Specifications: Chipset AMD B850 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Memory 2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 8000+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.• The DIMM slots on this motherboard only have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. Onboard Graphics 1x HDMI™Support HDMITM 2.1 port with HDR, maximum resolution of 4K 60Hz*1x D-SubSupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) Audio Realtek® ALC8977.1-Channel High Definition Audio Storage 1x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices4x SATA 6G (Qty)M2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) RAID Supports RAID 0, RAID 1 , and RAID 10 for SATA storage devices USB 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front) LAN Realtek® 8125 2.5G LAN Internal IO 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports LED FEATURE 4x EZ Debug LED OPERATING SYSTEM Support for Windows® 11 64-bit PCB Info mATX243.84mmx215mm
