| CPU | Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzenô4000 G-Series Desktop Processors |
| Chipset | AMD A520 Chipset |
| Memory | 2x DDR4 memory slots, support up to 64GB |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE | |
| 1DPC 1R max speed 4600 MHz | |
| 1DPC 2R max speed 3866 MHz | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Expansion Slot | 1x PCIe 3.0 x1 slot |
| 1x PCIe x16 slot | |
| 1. The supported specification depends on installed processor. | |
| Onboard Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz | |
| Maximum shared memory of 16 GB | |
| 1. Available for the processor with integrated graphics. | |
| 2. Graphics specifications may vary depending on the CPU installed. | |
| Storage | AMD A520 Chipset |
| 4x SATA 6Gb/s ports | |
| 1x M.2 slot (Key M) (from AMD Processor) | |
| Supports PCIe 3.0 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| 1. The supported specification depends on installed processor. | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | AMD A520 Chipset |
| 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| AMD Processor | |
| 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| Audio | RealtekÆ ALC892/ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1x RealtekÆ RTL8111H Gigabit LAN controller |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 4-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 1x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1xTPM module connector | |
| 1x Clear CMOS jumper | |

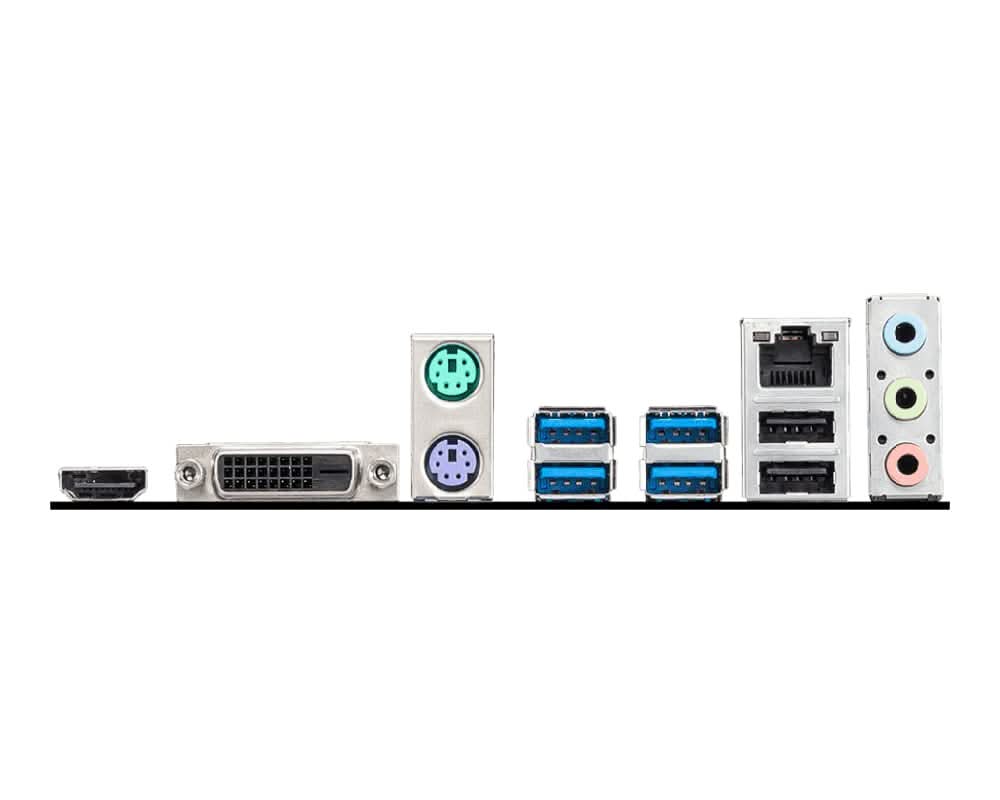

| Back panel ports | 1. LAN port |
| 2. HDMI | |
| 3. DVI-D | |
| 4. Keyboard / Mouse | |
| 5. USB 3.2 Gen 1 5Gbps Type-A | |
| 6. USB 3.2 Gen 1 5Gbps Type-A | |
| 7. USB 2.0 Ports | |
| 8. Audio Connectors | |
| Dimensions | Micro-ATX Form Factor |
| 9.3 in. x 7.9 in. (23.6 cm x 20 cm) | |
| MOUNTING | 8 mounting holes |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
