Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO„ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. € The DIMM slots on this motherboard have double-sided latches. € Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product€™s Support page or visit Brand Website.
Graphics Port
1x HDMI,2x Type-C DisplayPort
Expansion Slots
3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot € Supports PCIe 5.0 x16 (For Ryzen„ 9000/ 7000 Series processors) € Supports PCIe 4.0 x8 (For Ryzen„ 8700/ 8600/ 8400 Series processors) € Supports PCIe 4.0 x4 (For Ryzen„ 8500/ 8300 Series processor)
Wireless Networking
WiFi 7,Bluetooth 5.4

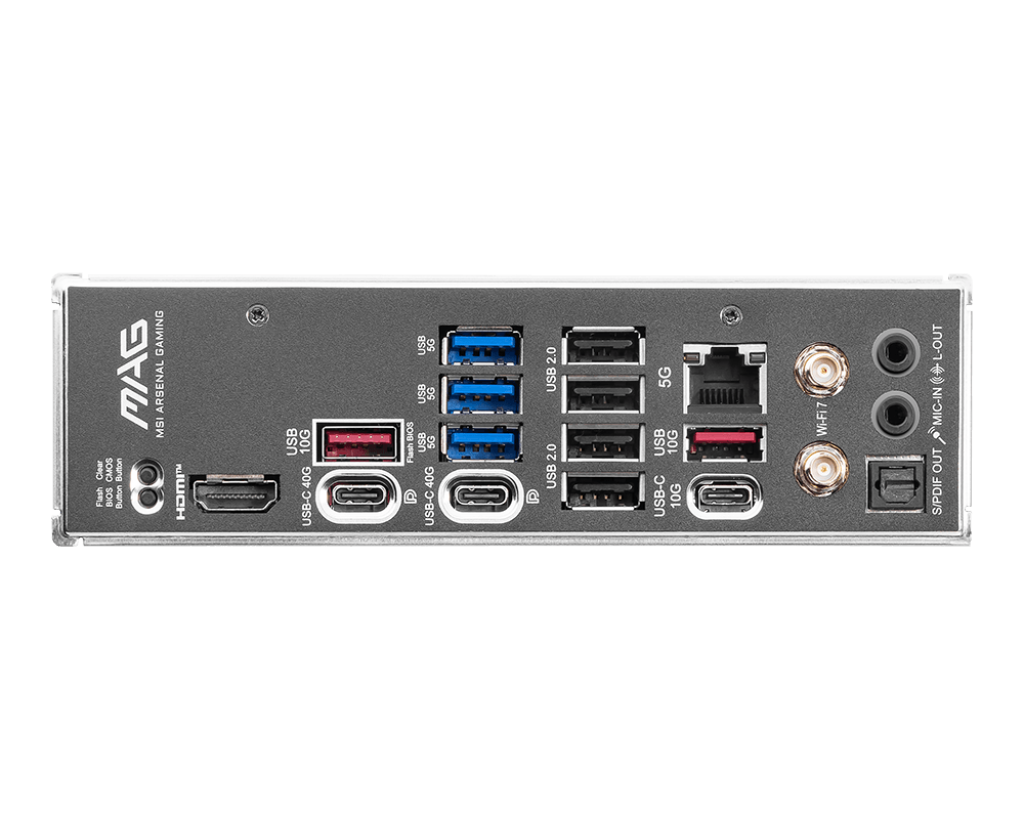

Back Panel I/O Ports
Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI„ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A
Internal I/O Connector
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
