Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, up to 5100(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
From the manufacturer:
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

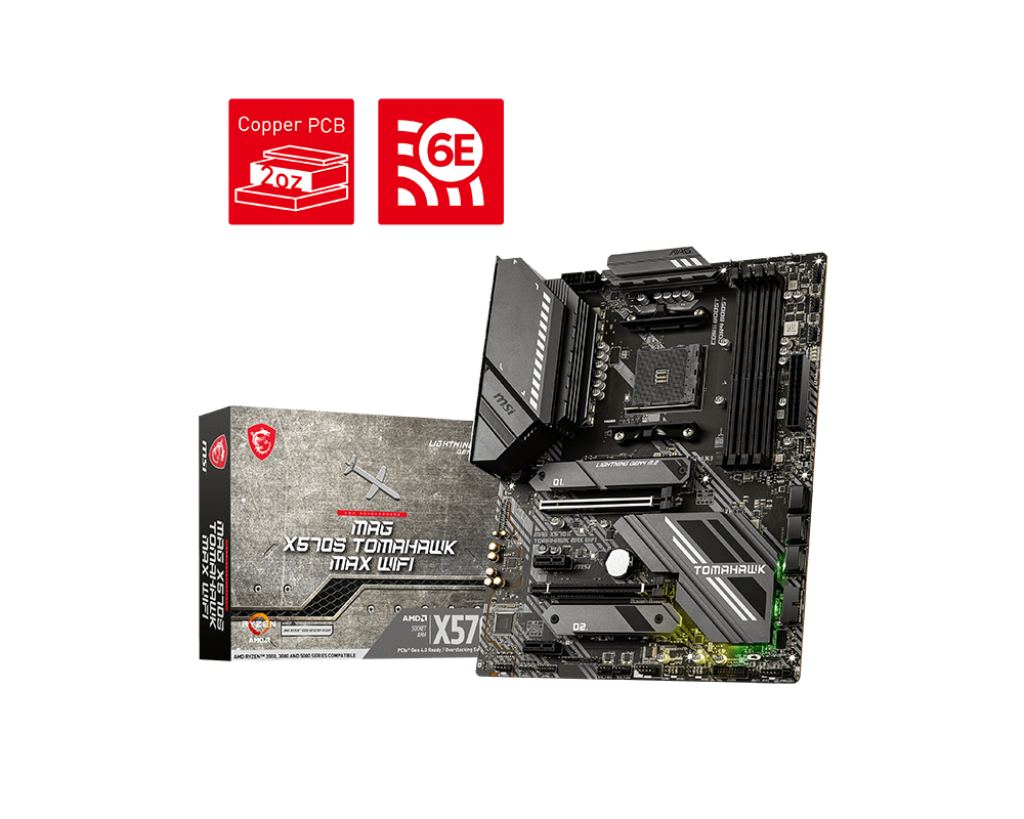

MAG X570S TOMAHAWK MAX WIFI
Conquer the Battlefield
The MAG X570S TOMAHAWK MAX WIFI is an upgraded variant of the MAG X570 TOMAHAWK WIFI, and features faster SDRAM capabilities, superior M.2 capacity, better audio performance, improved HDMI connectivity, and state-of the-art Wi-Fi/Bluetooth.
Supports AMD Ryzen 5000 Series Processors (AM4)
2 x M.2 Gen4 x4 slots (64GB/s)
2 x PCI-e 4.0 x16 slots (support AMD CrossFire Technology)
4 x DIMMS with DDR4 Boost: Dual Channel (5100 MHz / OC)
7.1 HD Audio with Audio Boost 5
2.5G LAN Ethernet
HDMI 2.1, USB 3.2 Gen 2 A & C ports (10Gb/s)
Intel Wi-Fi 6E AX210, Bluetooth 5.2
Full X570 Capabilities, Enhanced Design
Ryzen 5000 Series Ready
The MAG X570S TOMAHAWK MAX WIFI motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Form Factor: ATX
Socket Type: AMD AM4
Chipset: AMD X570
12 + 2 Mirrored Power Arrangement
With its 4+8 pin power connectors (60A) and exclusive Core Boost technology, the MAG X570S TOMAHAWK MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
2-Phase SoC Power
12-Phase Mirrored Power Arrangement
Digital PWM IC
Integrated Cooling Features
VRM Cooling: Features dual thermal dissipation pads (7 W/mK) and 2 aluminium heatsinks (1 extended).
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
Chipset Cooling: New & enlarged passively-cooled chipset heatsink generates zero noise.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
2 x PCI-e 4.0 x16 GPU Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCI-e 4.0/3.0 x16 slots with Steel Armor
1 x PCI-e 4.0/3.0 x16 slot (CrossFire supported)
2 x PCI-e 3.0 x1 slots
Technical Details:
Brand
MSI
Manufacturer
MSI, No. 69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan · Tel: +886-2-3234-5599 #1356 · Email:acs@msi.com.
Series
MAG
Form Factor
atx
Item Height
30 Millimeters
Item Width
24 Centimeters
Product Dimensions
30.5 x 24 x 3 cm; 1 kg
Batteries
1 AA batteries required.
Item model number
7D54-001R
Processor Socket
Socket AM4
RAM Size
6 GB
Memory Technology
DDR4
Memory Clock Speed
1866 MHz
Graphics Card Interface
PCI Express
Connectivity Type
Wi-Fi
Wireless Type
5.8 GHz Radio Frequency, 5 GHz Radio Frequency, 2.4 GHz Radio Frequency
Wattage
3600
Are Batteries Included
No
Lithium Battery Energy Content
210 Milliamp Hours (mAh)
