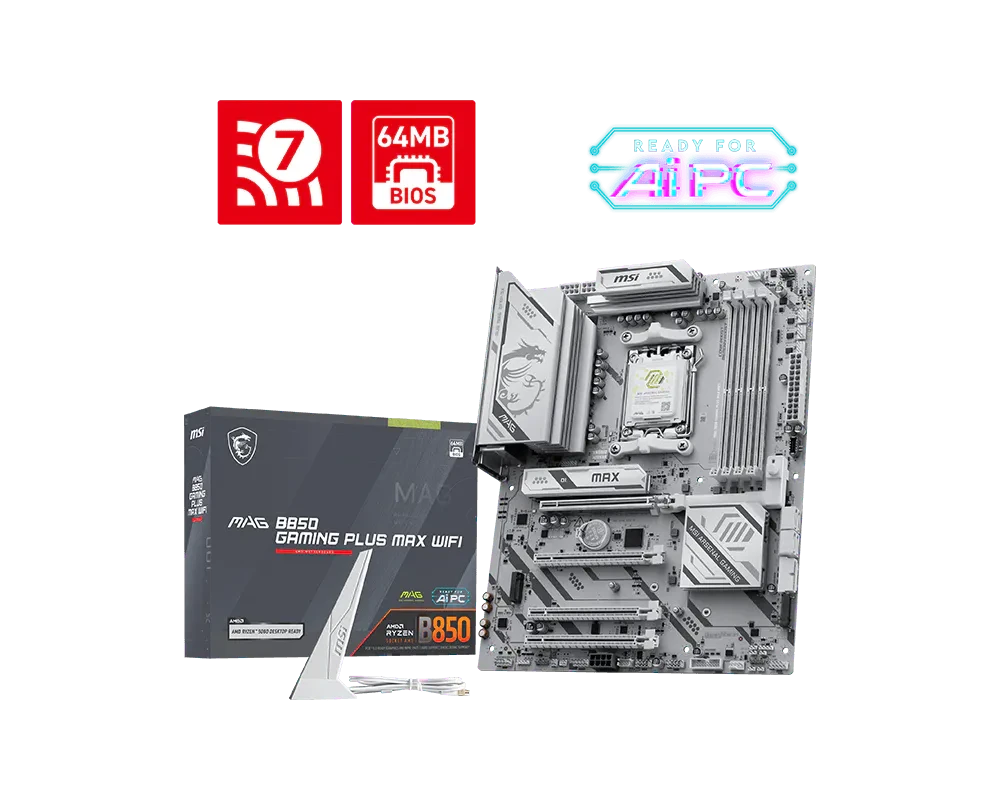

MSI MAG B850 GAMING PLUS MAX WIFI MOTHERBOARD

Model Name
MAG B850 GAMING PLUS MAX WIFI


CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors


Chipset Socket
AMD Socket AM5


Chipset
AMD B850 Chipset


Expansion Slot
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4 slot, 2x PCIe 3.0 x1 slots


Display Interface
Supports 4K@60Hz (DisplayPort 1.2 HBR) – Requires Processor Graphics


Memory Support
4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)


Storage
1x M.2 Gen5 x4 128Gbps slot; 1x M.2 Gen4 x4 64Gbps slot; 1x M.2 Gen4 x2 32Gbps slot; 4x SATA 6Gbps ports


USB Ports
3x USB 10Gbps (2 Type-C + 1 Type-A); 6x USB 5Gbps (1 Type-C + 5 Type-A); 8x USB 2.0


LAN
Realtek 5G LAN


Wireless / BT
Wi-Fi 7 Solution, Bluetooth 5.4


Audio
8-Channel (7.1) HD Audio with Audio Boost
