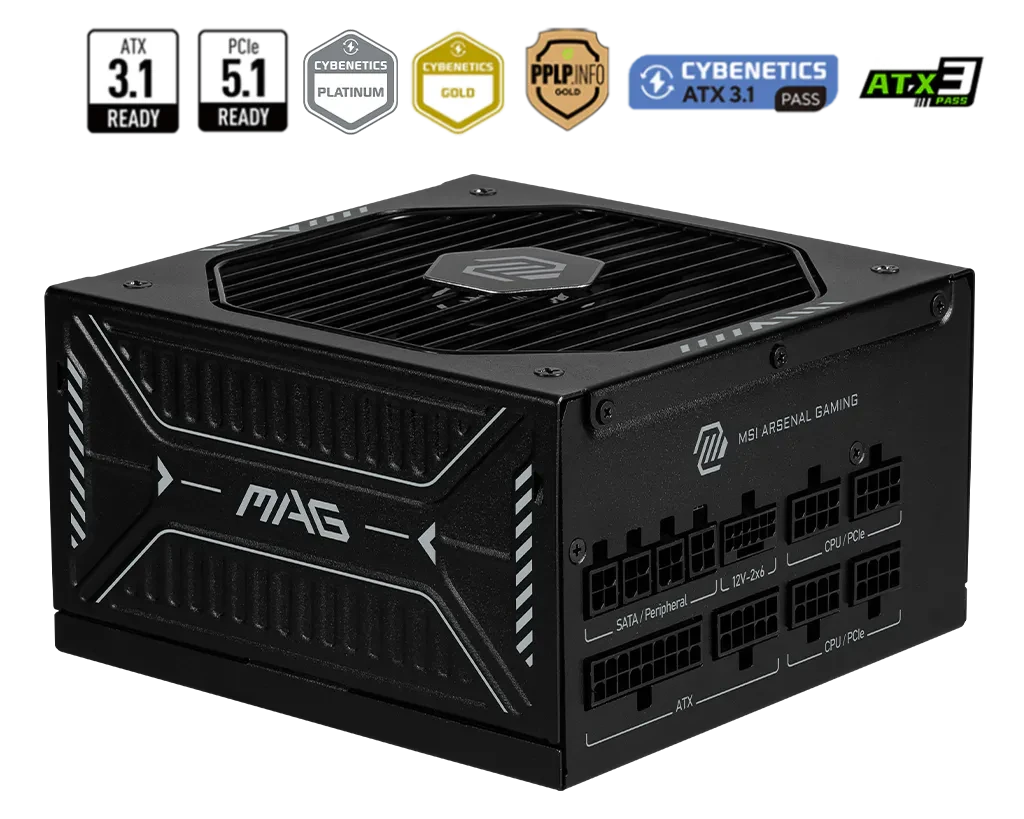

MSI MAG A1000GLS PCIE5 POWER SUPPLY

Modular


Yes (full modular)




Fan Bearing


Fluid Dynamic Bearing




Power Excursion


2200W (*up to 220% of the PSU's rated power for 100μs)




Input Voltage Range


100-240V~




Power Watt


1000W




Input Frequency


47-63 Hz




EPS (8 pin)


1




Efficiency


80 PLUS Gold (up to 90%)




PCI-E 5.1 (16 pin)


1 (600W)




ATX (24 pin)


1




Fan Size


135 mm




PCI-E (6+2 pin)


4




Dimension


150 x 150 x 86 mm




SATA (15 pin)


11




PFC Type


Active PFC




MOLEX (4 pin)


4




Protection


OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO




FDD (4 pin)


1
