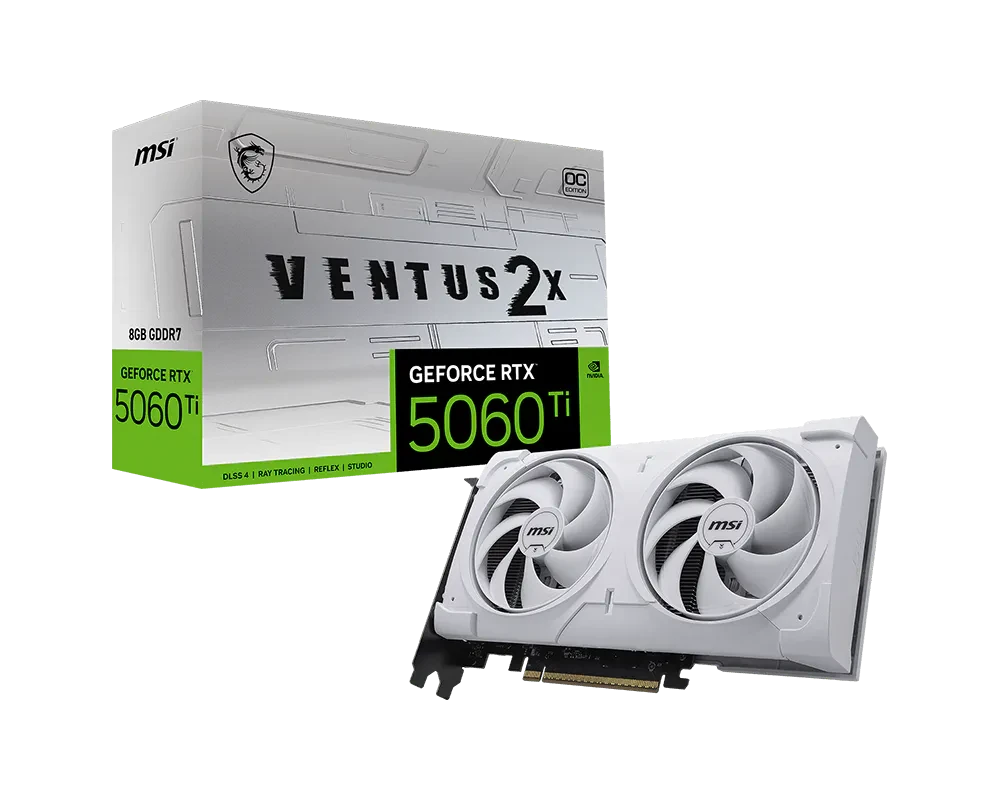

MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC WHITE PLUS GRAPHIC CARD

GeForce RTX 5060 Ti 8G VENTUS 2X OC WHITE PLUS

Powered by the NVIDIA Blackwell architecture and DLSS 4

Core Clock:Extreme Performance: 2617 MHz (MSI Center)Boost: 2602 MHz

STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.

MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.


DUAL-Fan Thermal Design
Two fans on a large heatsink ensure great cooling performance with a quieter experience.

Specifications:



 Marketing Name
 GeForce RTX 5060 Ti 8G VENTUS 2X OC WHITE PLUS



Memory
8GB GDDR7


Output

DisplayPort x 3 (v2.1b)HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)



Graphics Processing Unit
NVIDIA® GeForce RTX™ 5060 Ti


Interface
PCI Express Gen 5 x16 (uses x8)


Core Clock Speed (MHz)

Extreme Performance: 2617 MHz (MSI Center)Boost: 2602 MHz



Memory Interface
128-bit


Memory Clock Speed (MHz)
28 Gbps


OpenGL Version Support
4.6


Maximum Displays
4


HDCP Support
Y


DirectX Version Support
12 Ultimate


Card Dimension(mm)
227 x 126 x 41 mm


Card Weight (g)
600 g / 862 g


Power consumption (W)
180 W


Recommended PSU (W)
600 W


Digital Maximum Resolution
7680 x 4320


Power Connectors
8-pin x1


Mic-in/Headphone-out
1/1
