Ultra Performance:10+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
High-speed Connectivity:2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Lightning Fast Game experience:PCIe 4.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
EZ DIY:EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
Audio Boost:Reward your ears with studio grade sound quality for the most immersive gaming experience
Motherboard
Platform
AMD
Socket
AM5
Cpu Type
Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset
B850
Memory Speed
up to 8200+
Max Memory Support
256 GB
Supported Memory Type
DDR5
Channel Supported
Dual Channel
Memory Feature
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: € 1DPC 1R Max speed up to 8200+ MT/s € 1DPC 2R Max speed up to 6400+ MT/s € 2DPC 1R Max speed up to 6400+ MT/s € 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Graphics Port
1x HDMI, 1x DisplayPort
Expansion Slots
1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 slot € Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) € Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) € Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Wireless Networking
WiFi 6E,Bluetooth 5.3

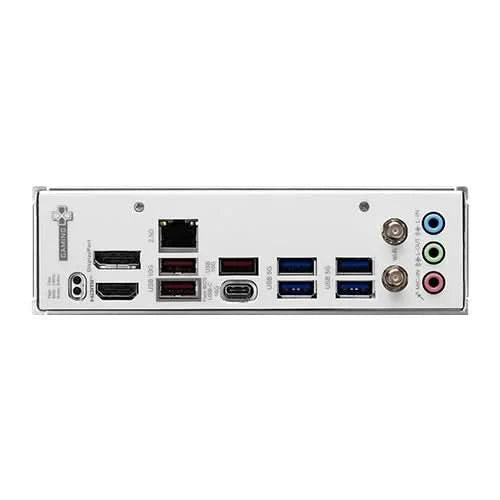

Back Panel I/O Ports
Clear CMOS Button DisplayPort 1.4 2.5G LAN USB 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A)
Internal I/O Connector
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor
Micro-ATX
Warranty
3 Years
Note
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
