| Chipset | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors |
| LGA 1700 | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 6800+ MHz | |
| ï 1DPC 2R Max speed up to 6400+ MHz | |
| ï 2DPC 1R Max speed up to 6000+ MHz | |
| ï 2DPC 2R Max speed up to 5600+ MHz | |
| Supports IntelÆ XMP 3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Graphics | 1x HDMIô |
| Support HDMIô 1.4, maximum resolution of 4K 30Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| EXPANSION SLOT | 1x PCI-E x16 slot |
| 2x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 1x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| LAN | RealtekÆ RTL8111H Gigabit LAN |
| Audio | RealtekÆ ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Printer Port (JLPT) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| LED FEATURE | 4x EZ Debug LED |

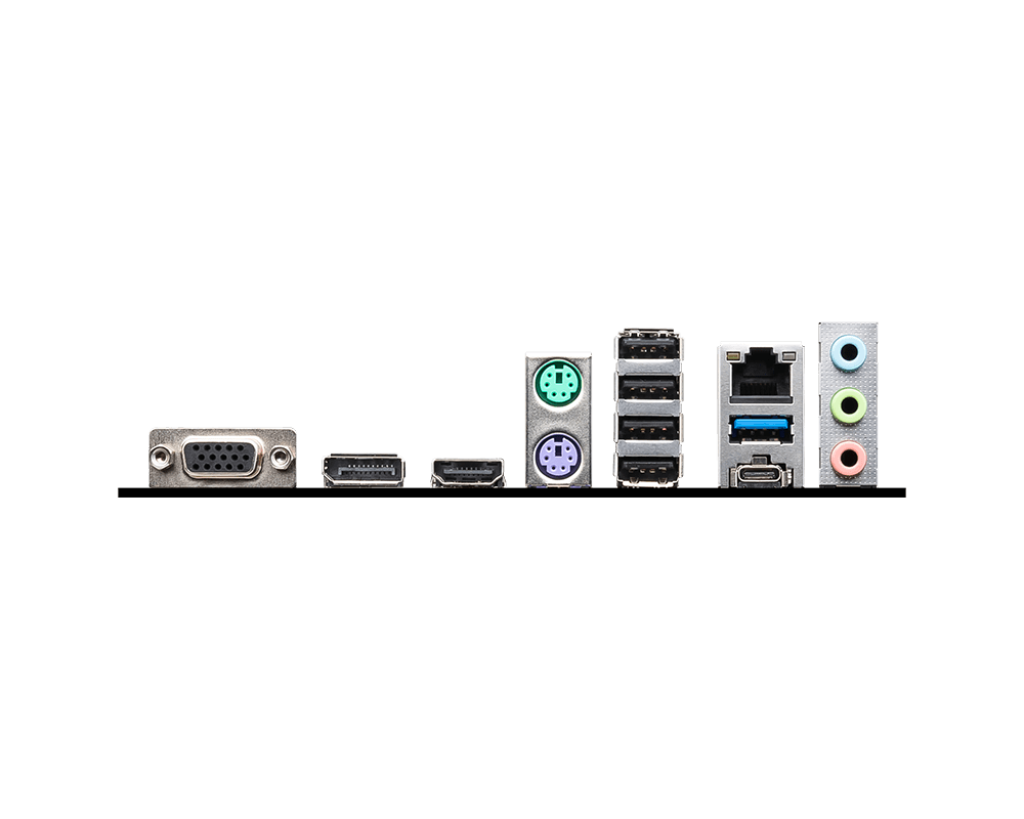

| BACK PANEL PORTS | VGA |
| DisplayPort | |
| HDMIô | |
| Keyboard / Mouse | |
| USB 2.0 | |
| LAN port | |
| Audio Connectors | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-C) | |
| OPERATING SYSTEM | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| PCB Dimension | mATX |
| 243.84mmx243.84mm | |
| Warranty | 3 Years |
| Featured | Yes |
|---|---|
| brand | MSI |
