| Processor | Supports 12th/13th Gen IntelĠ Coreī Processors, PentiumĠ Gold and CeleronĠ Processors |
| LGA 1700 | |
| Chipset | INTEL B760 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | |
| Max. overclocking frequency: | |
| ƒ¯ 1DPC 1R Max speed up to 4800+ MHz | |
| ƒ¯ 1DPC 2R Max speed up to 4600+ MHz | |
| ƒ¯ 2DPC 1R Max speed up to 4400+ MHz | |
| ƒ¯ 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports IntelĠ Extreme Memory Profile (XMP) | |
| Expansion Slot | 1x PCI-E x16 slot |
| 2x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) | |
| Onboard Graphics | Support HDMIƒ´ 1.4, maximum resolution of 4K 30Hz* |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| 1x HDMIƒ´ | |
| 1x DisplayPort | |
| 1x VGA | |
| Audio | RealtekĠ ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 2x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G port | |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| LAN | RealtekĠ RTL8111H Gigabit LAN |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 1x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Printer Port (JLPT) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| LED Feature | 4x EZ Debug LED |

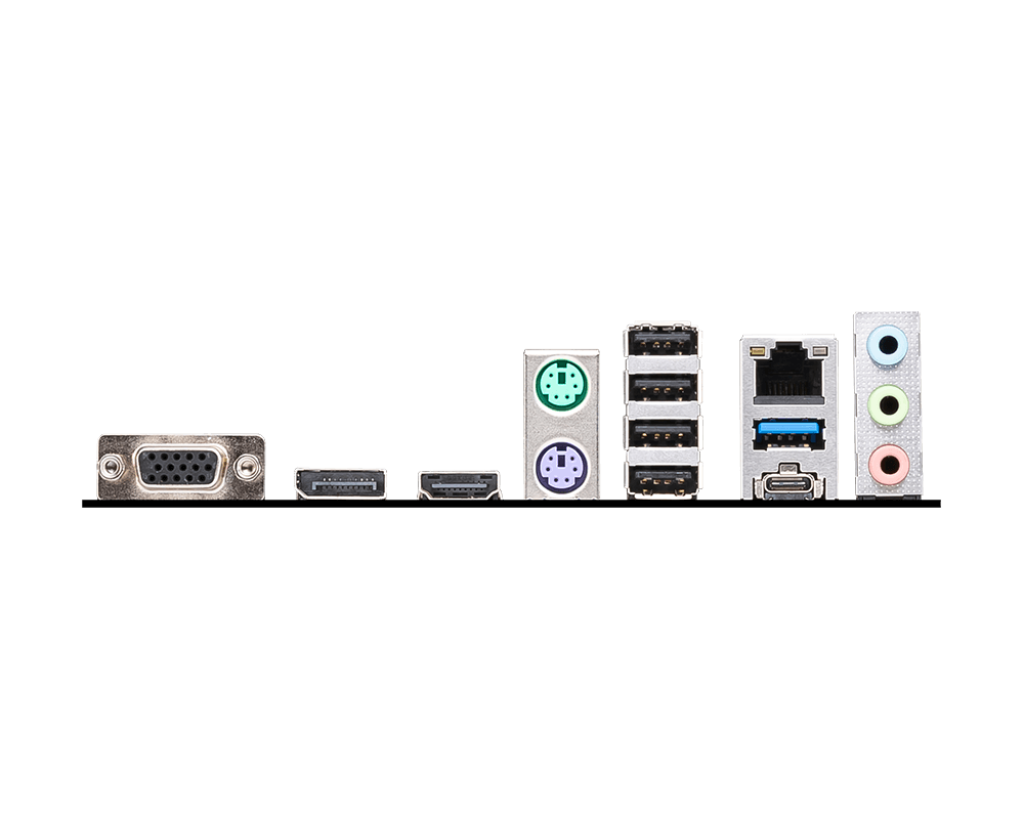

| Back Panel Ports | VGA |
| DisplayPort | |
| HDMIƒ´ | |
| Keyboard / Mouse | |
| USB 2.0 | |
| LAN port | |
| Audio Connectors | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-C) | |
| Operating System | Support for WindowsĠ 11 64-bit, WindowsĠ 10 64-bit |
| Dimensions | mATX |
| 243.84mmx243.84mm | |
| Warranty | 3 Years |
| Featured | Yes |
|---|---|
| brand | MSI |
