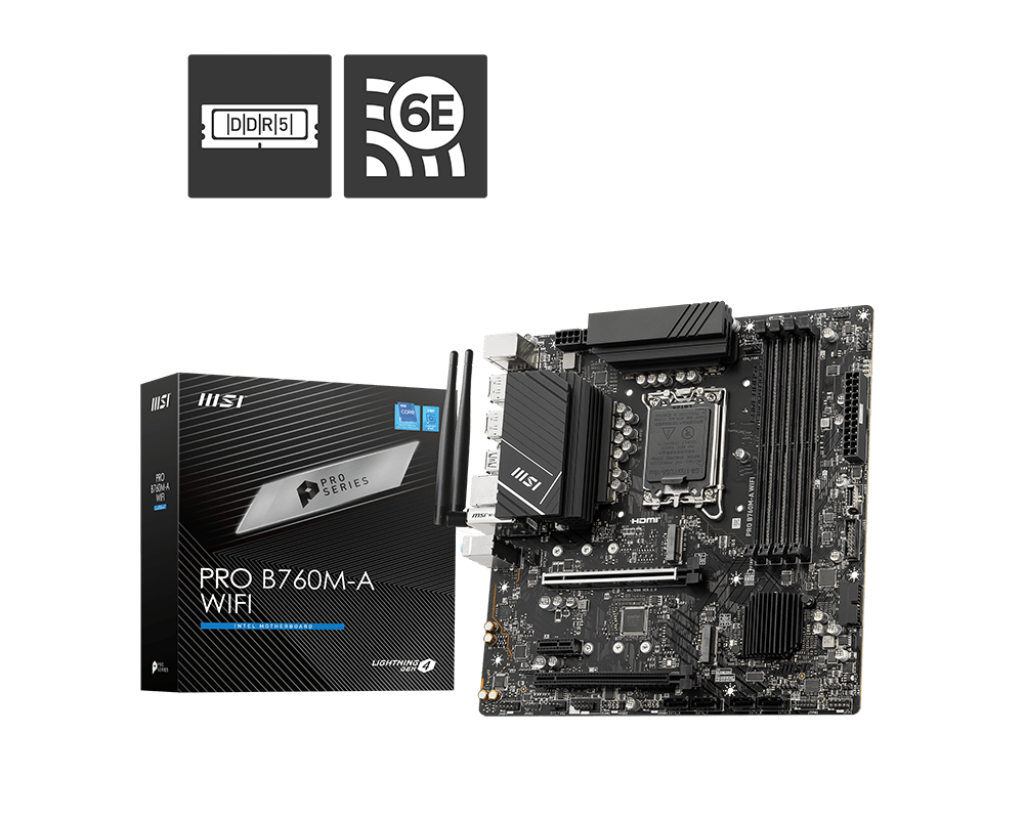

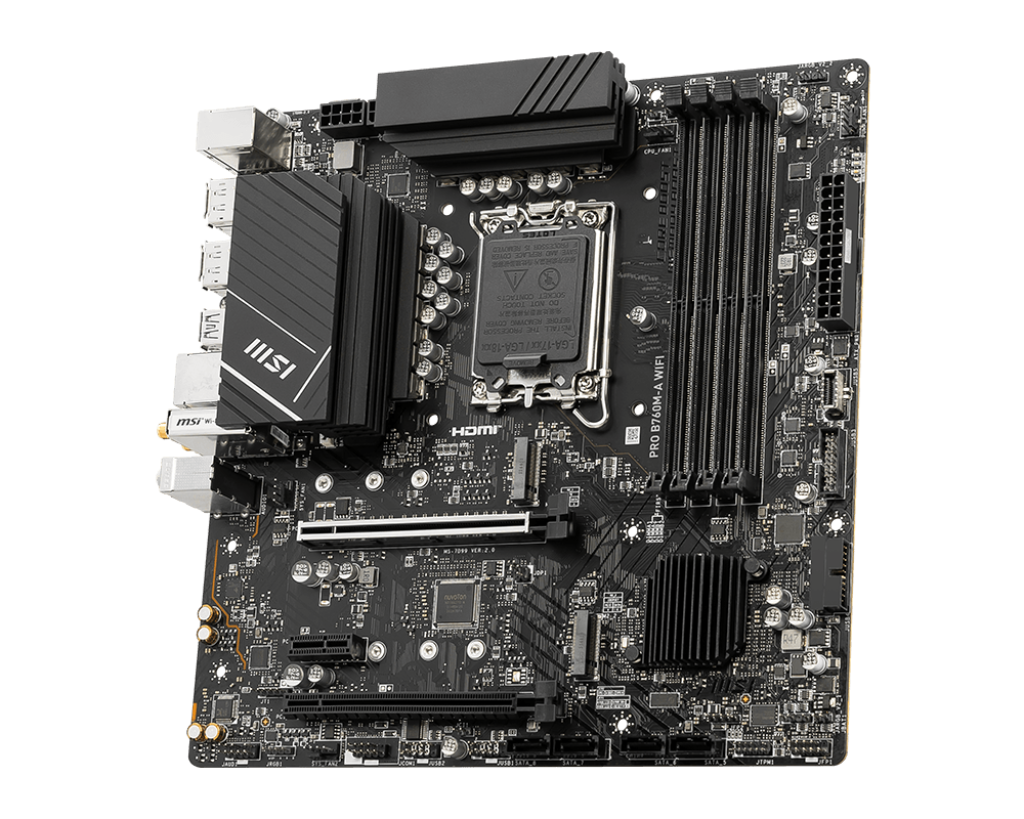

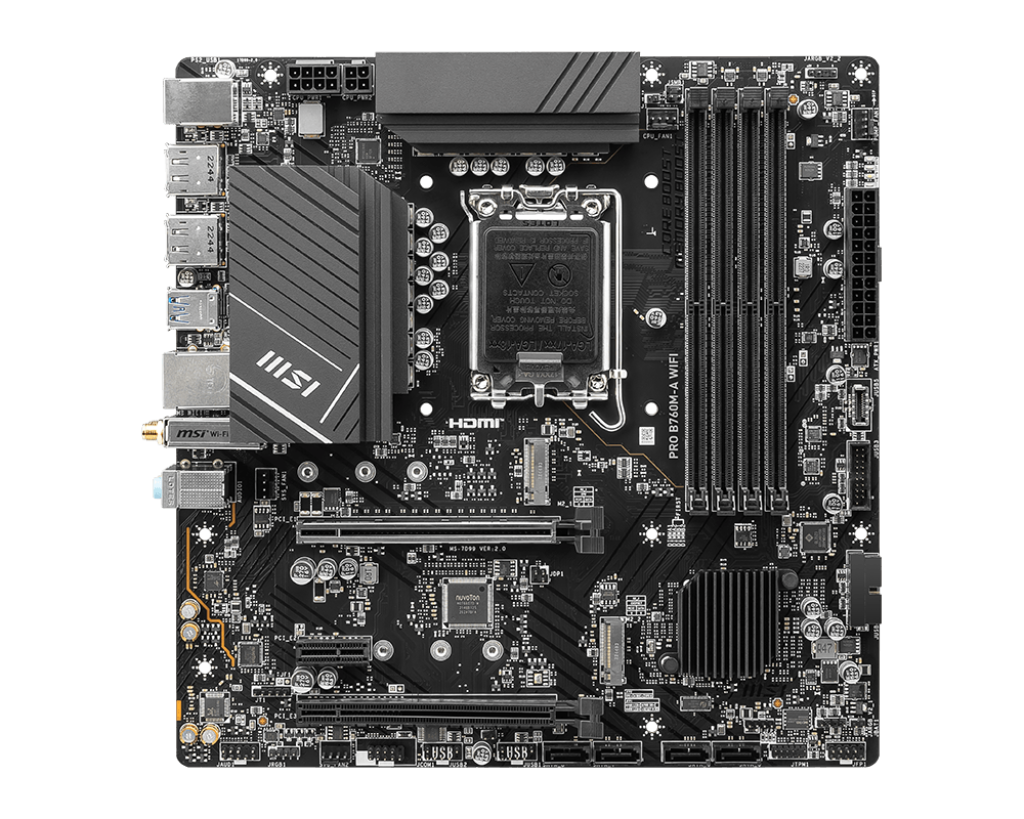

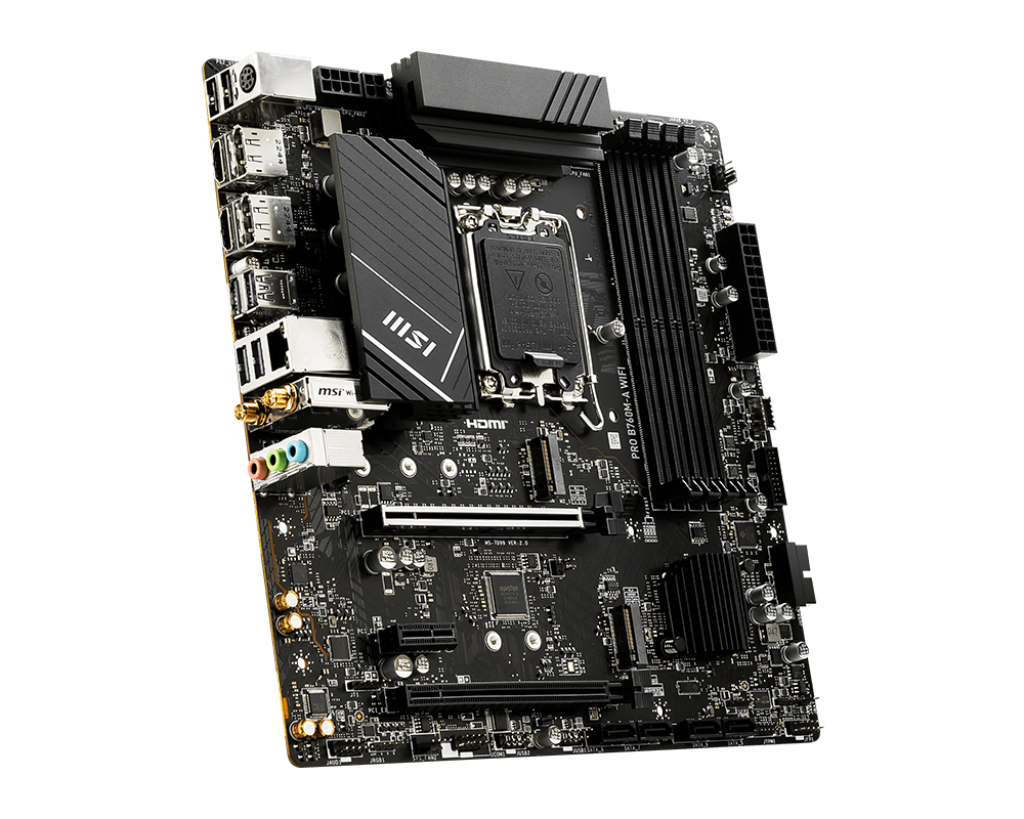

MSI B760M-A PRO WIFI DDR5 INTEL LGA1700 MOTHERBOARD

Be the first to review this product

Special Price ₹14,750.00 Regular Price ₹29,999.00

Details

Specifications

Model	PRO-B760M-A-WIFI-DDR5
Chipset	INTEL B760
CPU Support	Supports 12th/13th Gen Intelƒ† Coreƒ´ Processors, Pentiumƒ† Gold and Celeronƒ† Processors
LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB
Memory Support 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
ƒ¯ 1DPC 1R Max speed up to 6800+ MHz
ƒ¯ 1DPC 2R Max speed up to 6400+ MHz
ƒ¯ 2DPC 1R Max speed up to 6000+ MHz
ƒ¯ 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intelƒ† Extreme Memory Profile (XMP)
Onboard Graphics	Support HDMIƒ´ 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
2x HDMIƒ´
2x DisplayPort
Expansion Slot	2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
LAN	Realtekƒ† RTL8125BG 2.5G LAN
Wireless Lan & Bluetooth	Intelƒ† Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetoothƒ† 5.3, FIPS, FISMA
Audio	Realtekƒ† ALC897 Codec
7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C
LED Features	4x EZ Debug LED

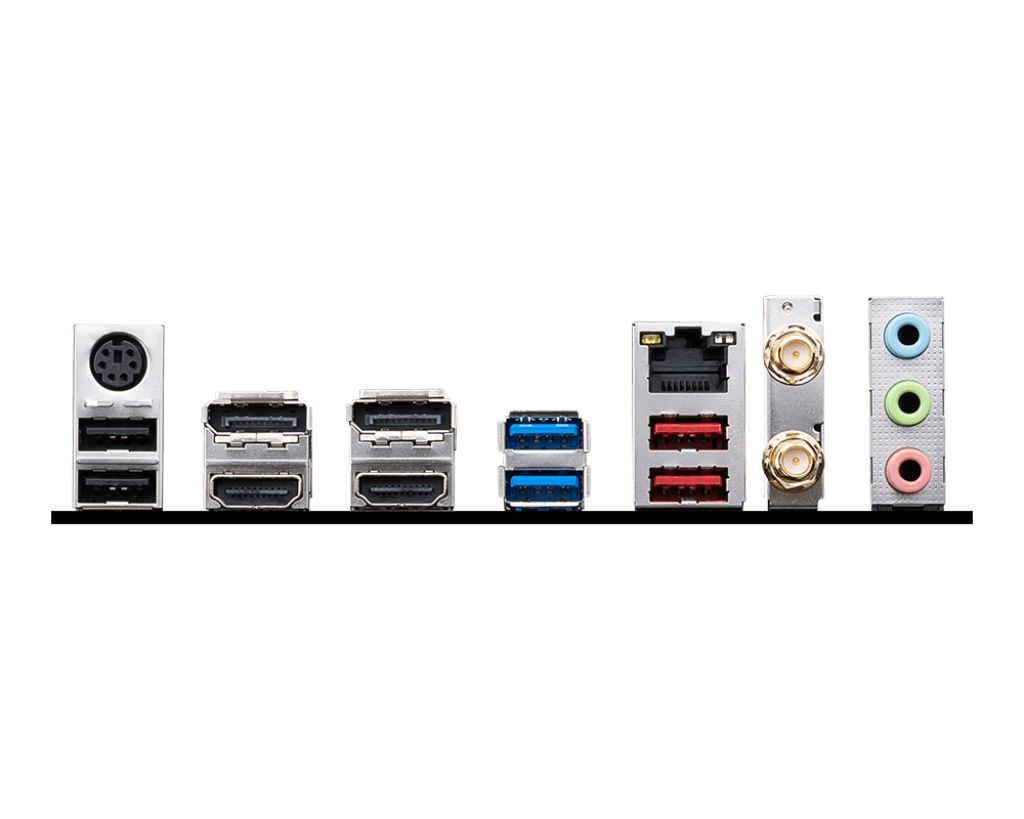

Back Panel Ports	Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMIƒ´
USB 3.2 Gen 2 10Gbps (Type-A)
Operating System	Support for Windowsƒ† 11 64-bit, Windowsƒ† 10 64-bit
PCB Info	mATX
243.84mmx243.84mm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years

More Information

More Information
Featured	Yes
brand	MSI
