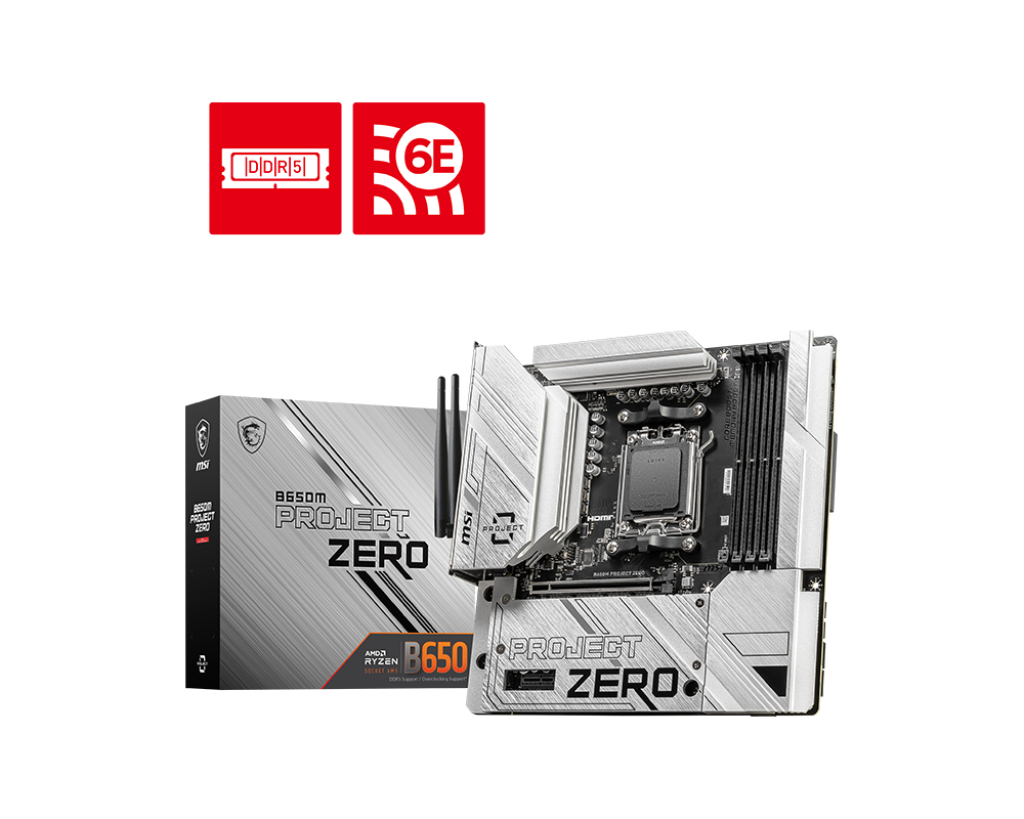

B650M PROJECT ZERO
Absolute Simplicity
B650M PROJECT ZERO features the back-connect design, which allows for a cleaner front view and easier cable management, showcasing the beauty of simplicity.
- Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
- Direct 10 phase VRM Power with 80A SPS
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 6400MHz OC)
- 2 x PCI-e 4.0 x16 slots
- Lightning Gen4 M.2 & M.2 Shield Frozr
- 7.1 HD Audio with Audio Boost
- USB 3.2 Gen 2x2 Type-C (20Gbps)
- Realtek 2.5G LAN, Wi-Fi 6E & Bluetooth 5.3

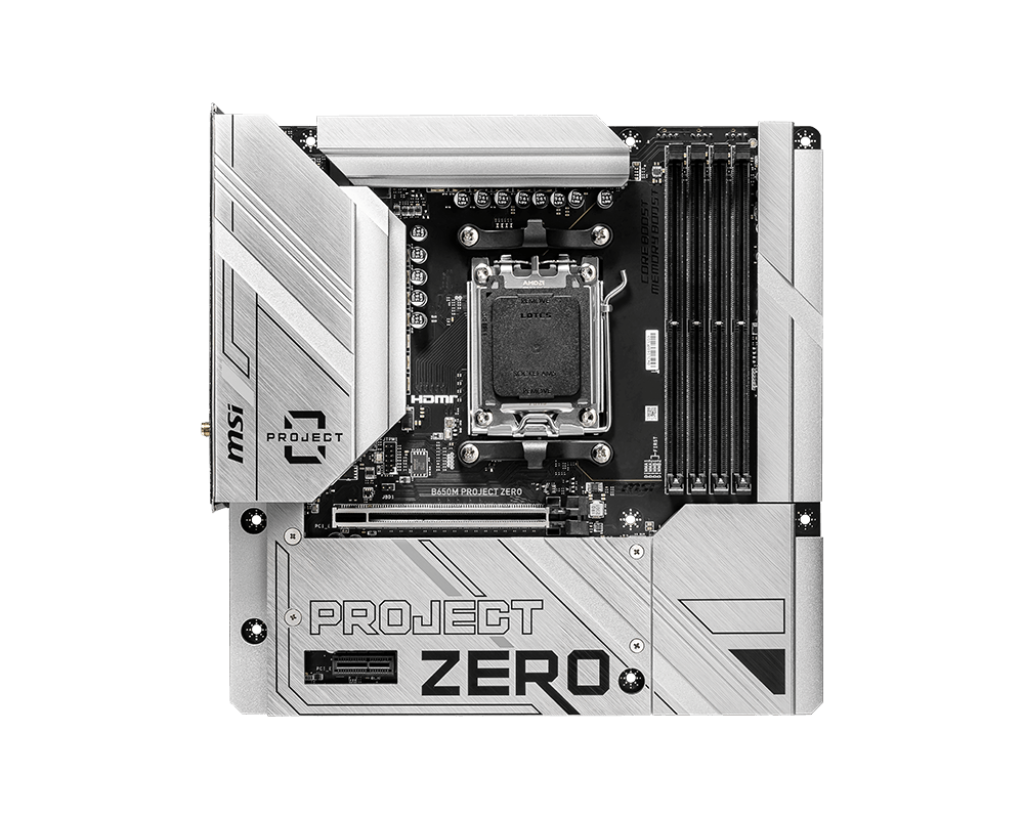

Cleaner Front View

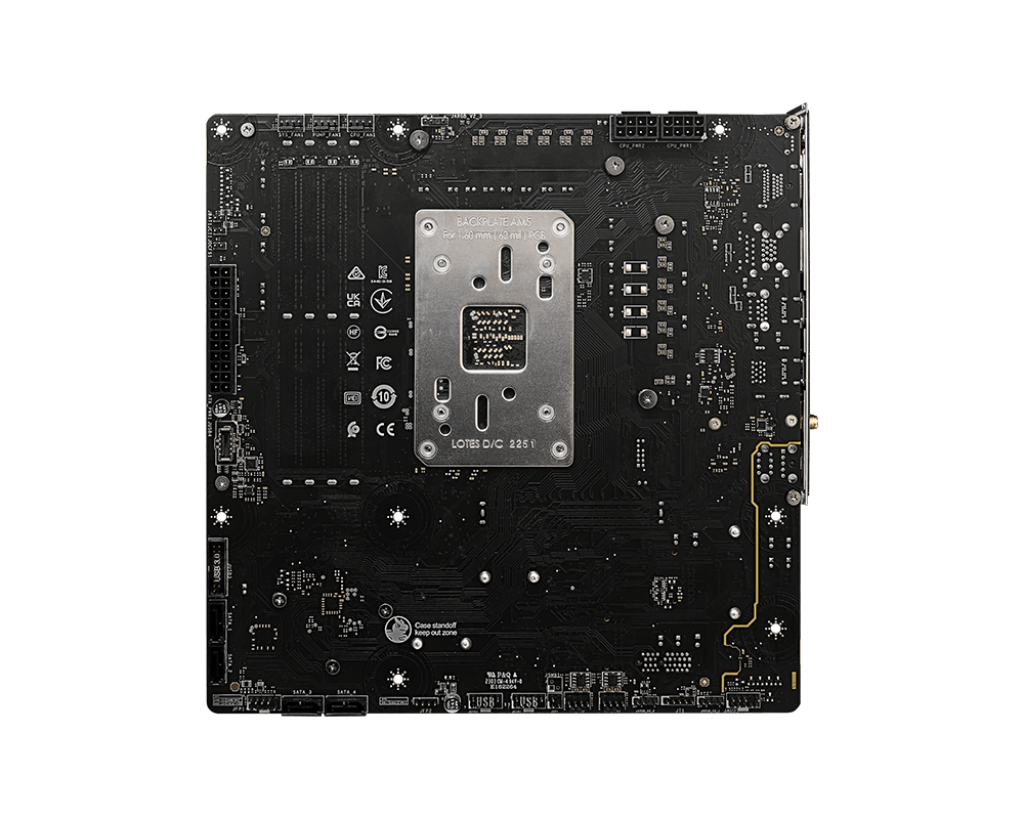

the B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Back-Connect Design
Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless. Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.
Supports AMD Ryzen 7000 Processors
The B650M PROJECT ZERO motherboard supports AMD Ryzen 7000 processors. Form Factor: Back-connect Micro-ATX* Socket Type: AM5 Chipset: AMD B650 *Requires a compatible case.
Direct 10+2 VRM Power Design (80A)
With its dual 8 pin power connectors and exclusive Core Boost technology, the B650M PROJECT ZERO is able to sustain heavy CPU power loads to support system-demanding game settings: 1. Digital PWM IC 2. Direct 10-Phase CPU Power (80A) 3. 2-Phase SOC Power 4. 1-Phase MISC Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
4 x DDR5 Dual Channel (7600+ MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7600+ MHz, supports Intel XMP.
1 x Fortified PCI-e 4.0 x16 Slot
MSI PCI Express Steel Armor slot are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
Gen4 M.2 Connectors
The B650M PROJECT ZERO motherboard features MSI's Gen4 M.2 slots: 2 x Gen4 x4 64Gbps slots* *2 with M.2 Shield Frozr
