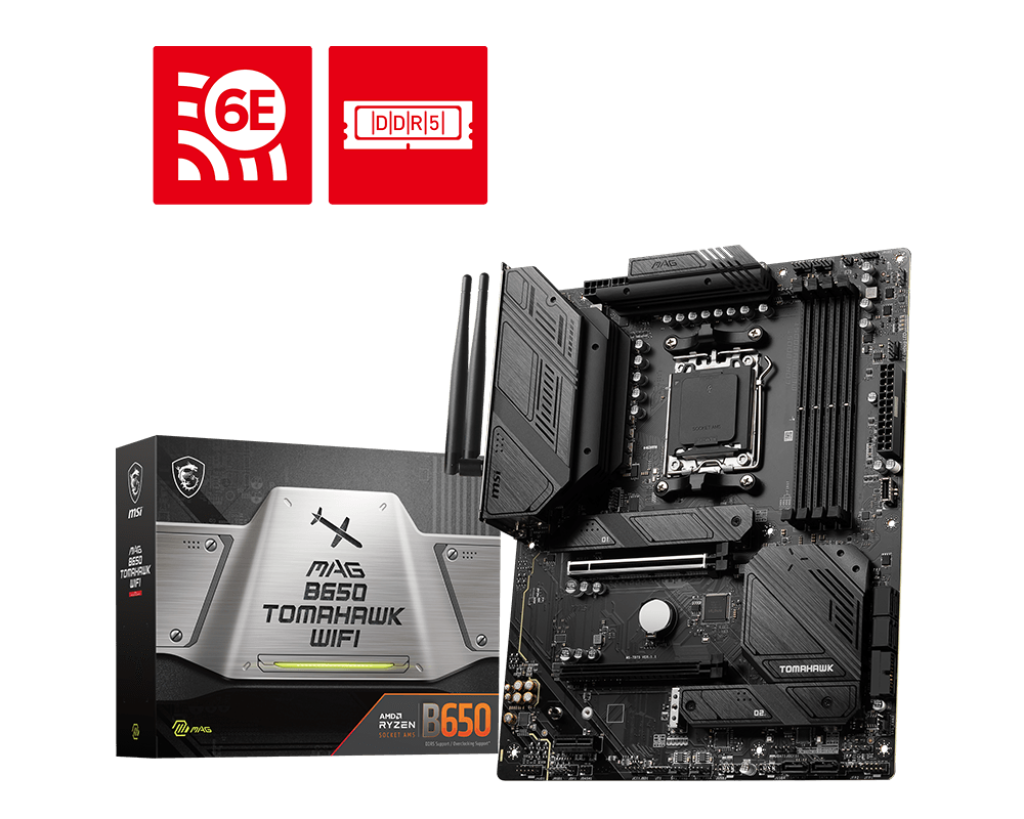

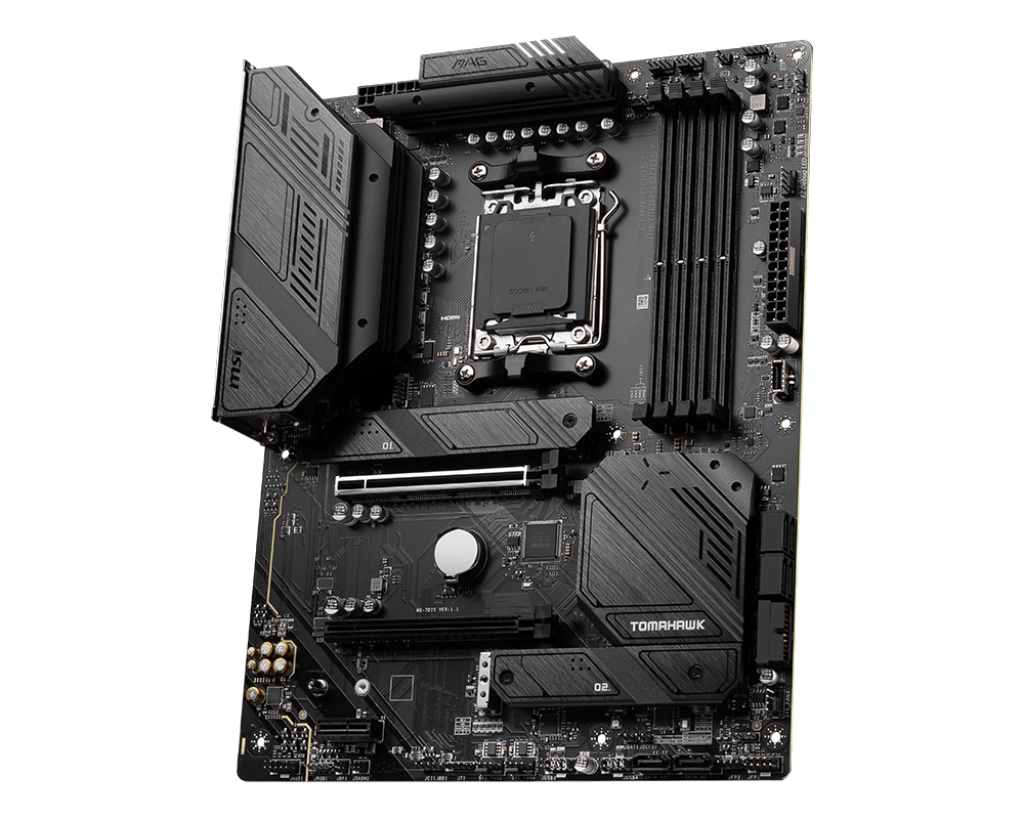

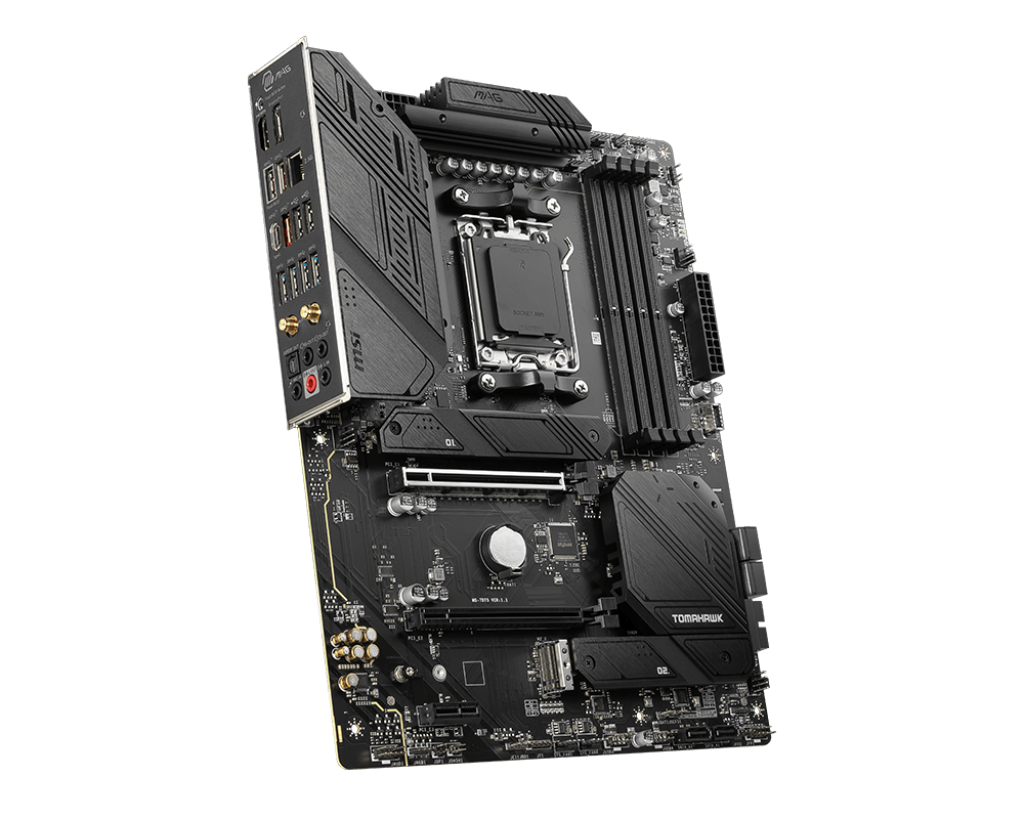

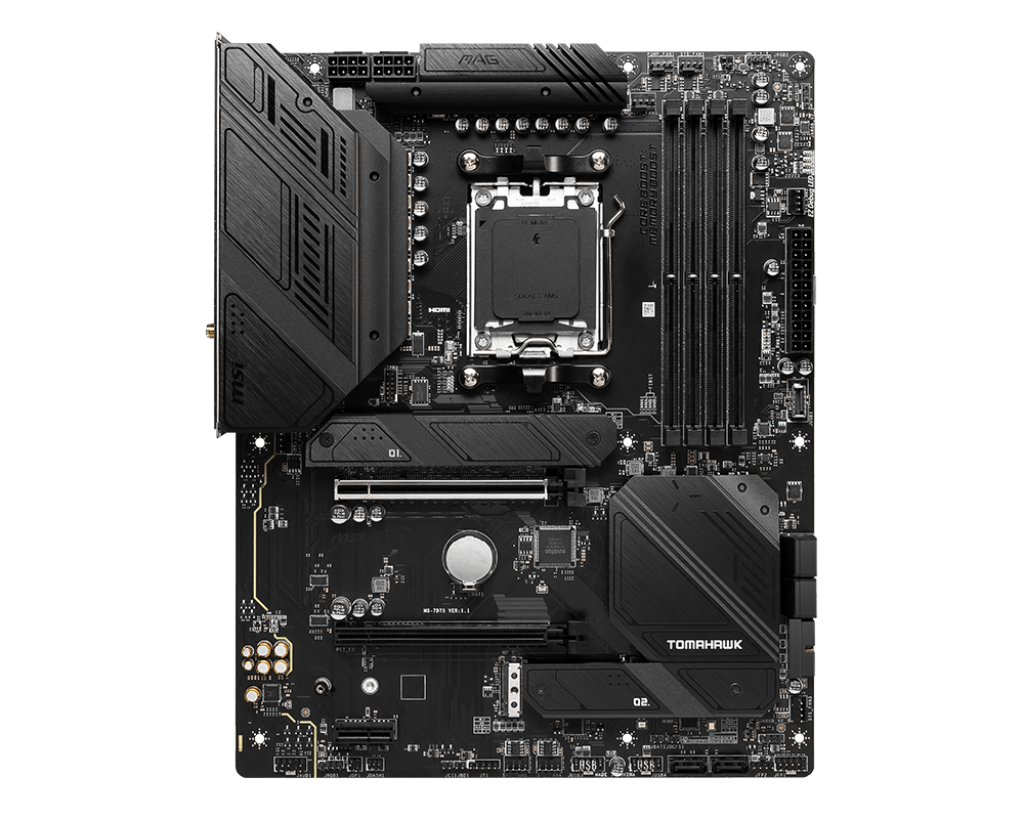

MSI B650 MAG TOMAHAWK WIFI AMD AM5 MOTHERBOARD
MSI B650 MAG TOMAHAWK WIFI AMD AM5 MOTHERBOARD
Special Price
₹21,850.00
Regular Price
₹45,999.00
Customers are viewing this product
SKU:
ETK-Computer-Accessories-483
In stock
Specifications
| Chipset | AMDB650 |
| CPU SUPPORT | Supports AMD Ryzen 7000 Series Desktop Processors |
| Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz |
| Onboard Graphics | 1x HDMI |
| 1x DisplayPort Support HDMITM 2.1 with HDR |
| maximum resolution of 4K 60Hz Support DP 1.4 maximum resolution of 8K 60Hz |
| EXPANSION SLOT | 2x PCI-E x16 slot |
| Support x16/ x4 |
| 1x PCI-E x1 slot |
| PCI_E1 PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) |
| PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , |
| supports 2280/2260 devices M.2_2 (From CPU) |
| supports up to PCIe 4.0 x4 |
| supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 |
| supports 2280/2260 devices 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

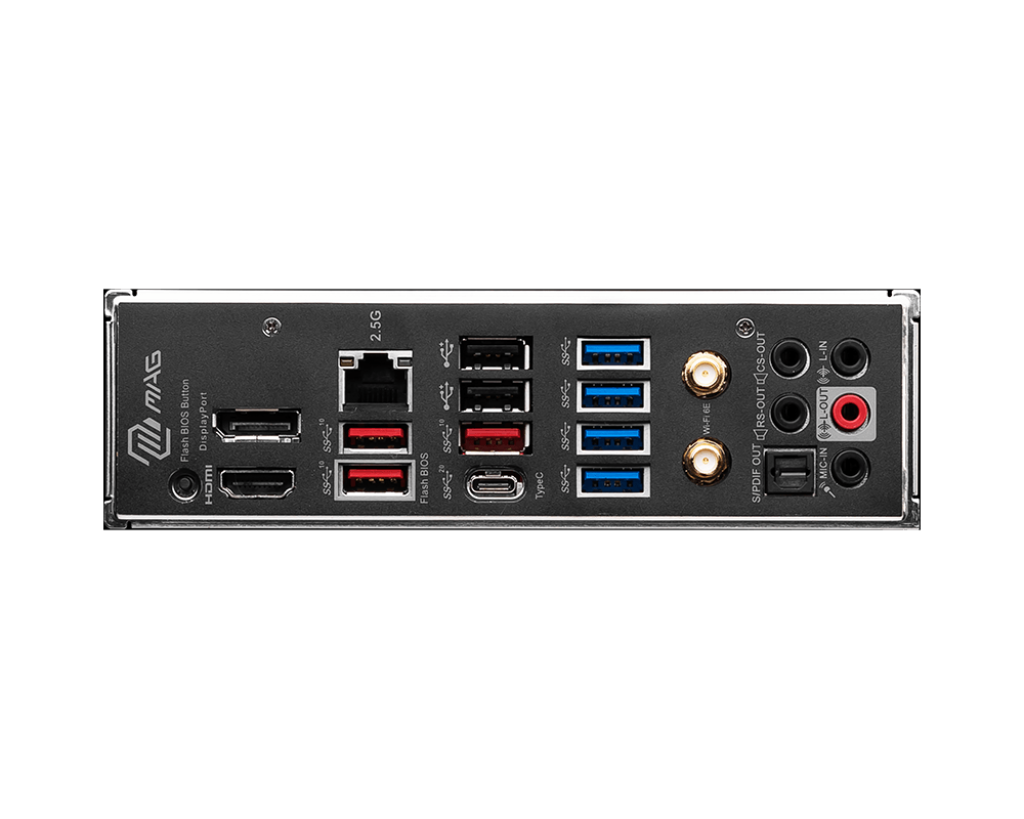

| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) |
| 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) |
| 1x USB 3.2 Gen2 Type C (Front) |
| 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | RealtekÆ RTL8125B 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX |
| Supports 20MHz, |
| 40MHz, |
| 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports BluetoothÆ 5.2 |
| Audio | RealtekÆ ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Pump Fan |
| 6x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Tuning Controller connector(JDASH) |
| 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 2x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 |
| 2x USB 3.2 Gen1 Type A |
| 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
Warranty: 3 years
