ƒ¯ 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics
1x HDMIƒ´
Support HDMITM2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048—Š1536 50Hz, 2048—Š1280 60Hz, 1920—Š1200 60Hz
Expansion Slot
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Raid
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN
RealtekĠRTL8111H Gigabit LAN
Audio
RealtekĠALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED Feature
4x EZ Debug LED

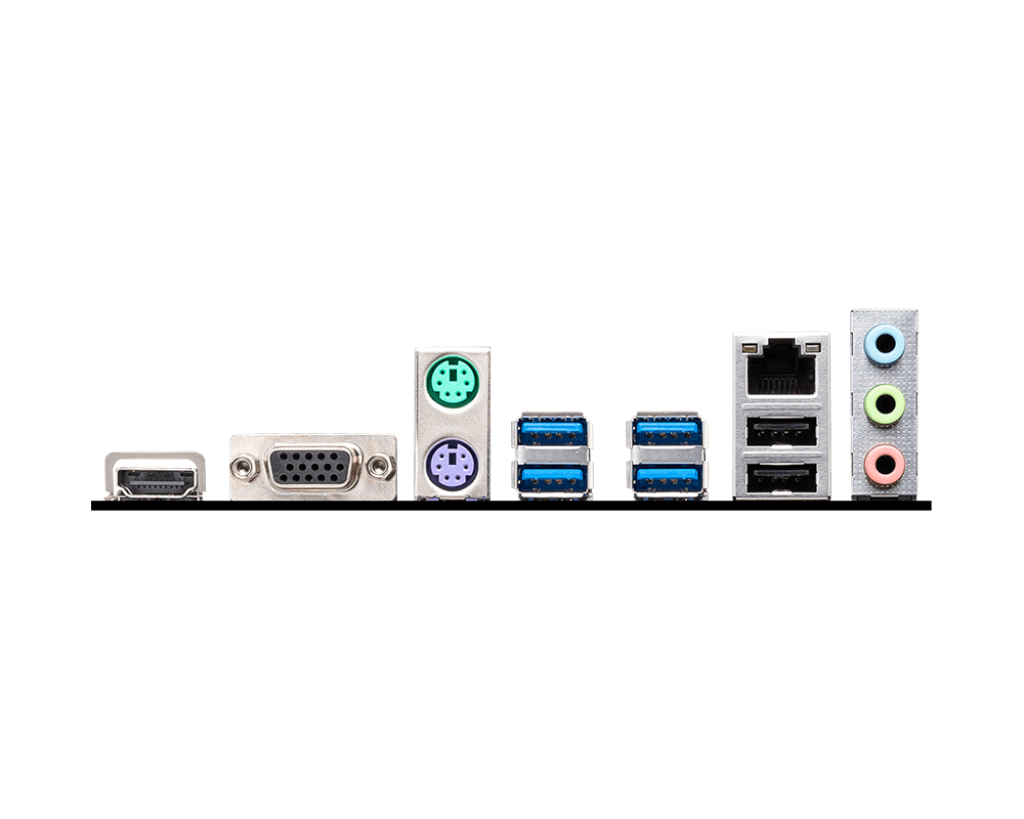

Back Panel Ports
1. HDMIƒ´
2. VGA
3. Keyboard/Mouse
4. USB 3.2 Gen 1 5Gbps (Type-A)
5. LAN port
6. Audio connectors
7. USB 2.0
Operating System
Support for WindowsĠ11 64-bit, WindowsĠ10 64-bit
PCB Dimension
mATX
211mmx243.84mm
Warranty
3 Years
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.Warranty: 3 years
