Features:
- L-Wireless Sync supported (required for use)
- UNIFAN interlocking system for streamlined cable management
- Available in two versions: LED and LCD (mixable in a single cluster)
- Two light zones for an enhanced visual experience
- Full software control for fan speed, lighting effects, and LCD screen display via L-Connect 3
- Noise-optimized and performance-oriented fan.
- LCP (liquid crystal polymer) fan blades are used for tight tolerance.
The UNI FAN TL Wireless and TL LCD Wireless feature LIAN LI€™s innovative wireless sync technology, utilizing a 2.4GHz wireless signal to control lighting effects and fan speed to further improve the PC building experience while delivering efficient cooling, dazzling lighting, and quiet operation.
WIRELESS TRANSMISSION, EASY INSTALLATION
By adopting 2.4GHz wireless technology, the UNI FAN TL Wireless Series eliminates the need for traditional hub connections, significantly simplifying the installation process and enhancing user experience.
INNOVATIVE L-WIRELESS CONTROLLER
Instead of using the traditional connection method, the L-Wireless Sync Controller controls both lighting and fan speeds without connecting the cable to the controller.The fans can be powered via a 4-PIN fan header on the motherboard or a SATA power cable.
For the LCD versions, a USB 2.0 9-PIN cable connection to the motherboard is required to set the LCD screen.
The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard
ONE CONTROLLER FOR ALL
The L-Wireless Controller supports UNI FAN TL Wireless, UNI FAN SL Wireless, Strimer Wireless, and more future products.
PERSONALIZED REMIX, STYLE ON DISPLAY
UNI FAN TL Wireless and TL LCD wireless now can be mix-matched into a group, offering versatile configurations and empowering creativity.

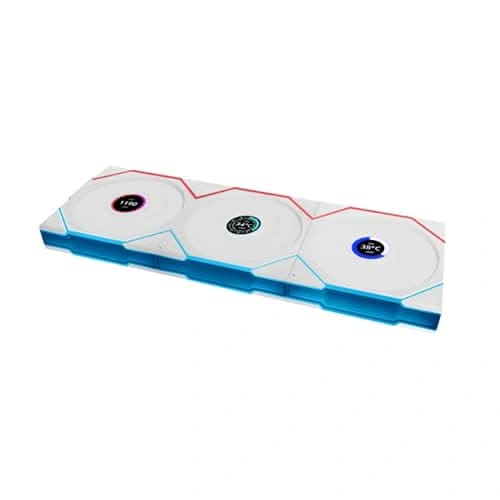

PRACTICAL AND STYLISH LCD SCREEN
The UNI FAN TL LCD Wireless carries forward the legacy of the world€™s first LCD-equipped fan. It features a 1.6€ circular LCD screen with 60Hz refresh rate (upgraded from 30Hz) that integrates seamlessly with LIAN LI€™s L-Connect 3 software, offering exceptional customizability.
PERFORMANCE DETAIL AT A GLANCE
Monitor CPU and GPU temperature and load with new built-in animated hardware sensors displayed directly on the screen.For clusters of 3 LCD fans, multiple data points can be displayed simultaneously.
- CONTROLLER: Yes
- CONNECTOR TYPE: 4-PIN PWM + 9-PIN USB x1,3-12V PWM to SATA x1
- FAN DIMENSION: 120x124x28mm
- FAN SPEED: 0,350~1900 RPM
- MAX AIR PRESSURE: 2.9 mmH2O (Maximum)
- MAX AIRFLOW: 62 CFM (Maximum)
- ACOUSTIC NOISE: 27 dBA (Maximum)
- INPUT POWER: 7.08W
- MATERIAL: PBT&PA66
- BEARING TYPE: Fluid Dynamic Bearing (FDB)
- OPERATE VOLTAGE: DC12V & 5V
| | Cabinet Fan |
| LED | ARGB |
| Size | 120 mm |
| Pack | Triple |
| Fan Controller | Yes |
| Warranty | 3 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
