Laptop, Power Adaptor, User Guide, Warranty Documents
Model Number
16ARX8
Part Number
82WM00B5IN
Model Name
16ARX8
Series
Legion Pro 5
Color
Onyx Grey
Type
Gaming Laptop
Suitable For
Gaming
Power Supply
300W Slim Tip (3 Pin)
MS Office Provided
Yes
Processor & Memory Features
Processor Brand
AMD
Processor Name
Ryzen 7 Octa Core
Processor Variant
7745HX
Chipset
AMD SoC Platform
Clock Speed
Base Frequency 3.6 GHz, Max Turbo Boost at 5.1 GHz
RAM
16 GB DDR5
Memory Slots
2
Expandable Memory
Up to 32 GB
Cache
32 MB
RPM
5200
Storage Type
SSD
SSD Capacity
1 TB
Dedicated Graphic Memory Type
GDDR6
Dedicated Graphic Memory Capacity
8 GB
Graphic Processor
NVIDIA GeForce RTX 4060
Number of Cores
8
Operating System
Windows 11 Home
Supported Operating System
Windows 11
Port & Slot Features
Mic In
Yes
RJ45 (Ethernet)
Yes, 100/1000M (RJ-45)
USB Ports
3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 1 (Always On), 1 x USB-C 3.2 Gen 2 (Support Data Transfer and DisplayPort 1.4), 1 x USB-C 3.2 Gen 2 (Support Data Transfer, Power Delivery 140W, and DisplayPort 1.4)
HDMI Port
1 x HDMI 2.1 (Up to 8K/60Hz)
Hardware Interface
M.2 2280 PCIe 4.0 x 4 NVMe
Display & Audio Features
Touchscreen
No
Screen Size
16 inch (40.64 cm)
Screen Resolution
2560 x 1600 Pixels
Screen Type
WQXGA, IPS, 500nits, Anti-glare, 100% sRGB, 240Hz, DisplayHDR 400, Dolby Vision, FreeSync, G-Sync, Low Blue Light, High Gaming Performance
Speakers
Dual 2W Stereo Speakers
Internal Mic
Dual Array Microphone
Sound Chip
High Definition (HD) Audio, Realtek ALC3306 Codec
Sound Properties
Nahimic Audio
Connectivity Features
Wireless LAN
Wi-Fi 6E, 11ax 2x2
Bluetooth
v5.1
Dimensions & Weight
Dimensions
363.4 x 260.35 x 22.45 mm
Weight
2.5 Kg
Additional Features
Disk Drive
Not Available
Web Camera
Full HD 1080p with E-Shutter
Security Chip
Firmware TPM 2.0 Enabled
Keyboard

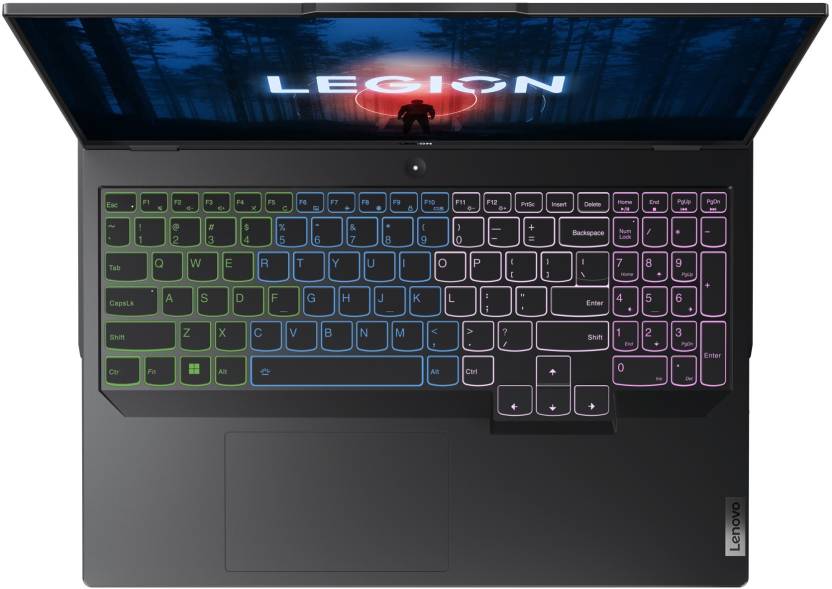

4-Zone RGB Backlit, English
Backlit Keyboard
Yes
Included Software
Microsoft Office Home & Student 2021
Additional Features
Integrated 80Wh Battery, Legion Coldfront 5.0 Cooling System
Warranty
Warranty Summary
1 Year Onsite Warranty + 1 Year Legion Ultimate Support
