Features:

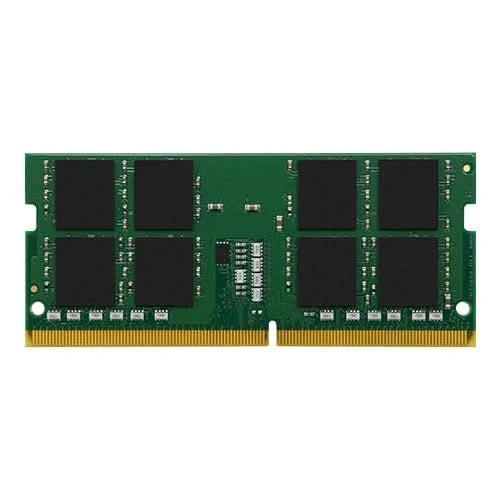

This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM),1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free
Memory-(Ram)
Model
KVR56S46BS8-16
Product Series
VALUE
Memory Type
DDR5
Capacity
16GB
Lighting
N/A
Kit Type
16GB x 1
Speed
5600 MHz
Tested Latency
46-45-45
Tested Voltage
1.1 V
Dimm Type
SODIMM
Warranty
Limited Lifetime
Note
Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
