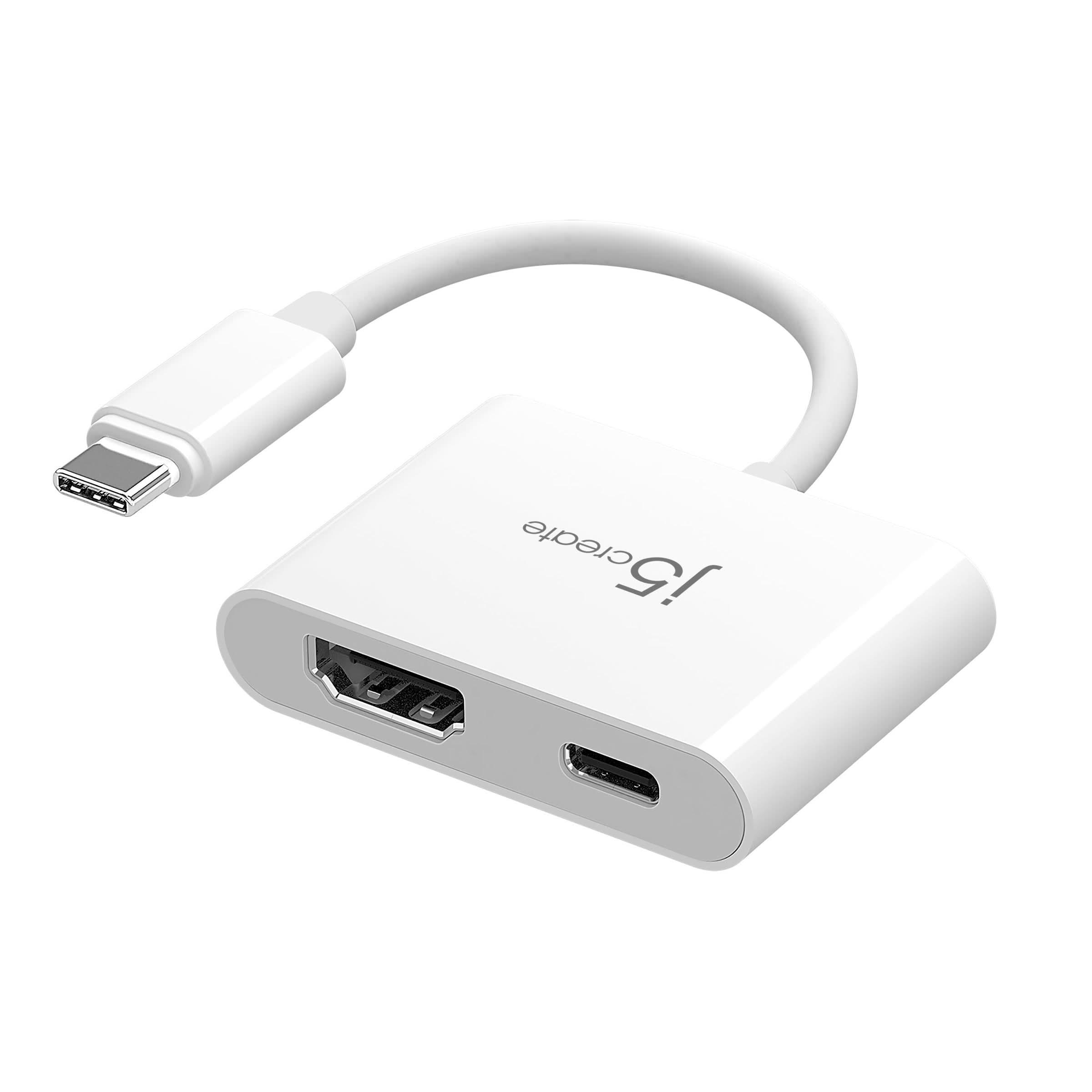

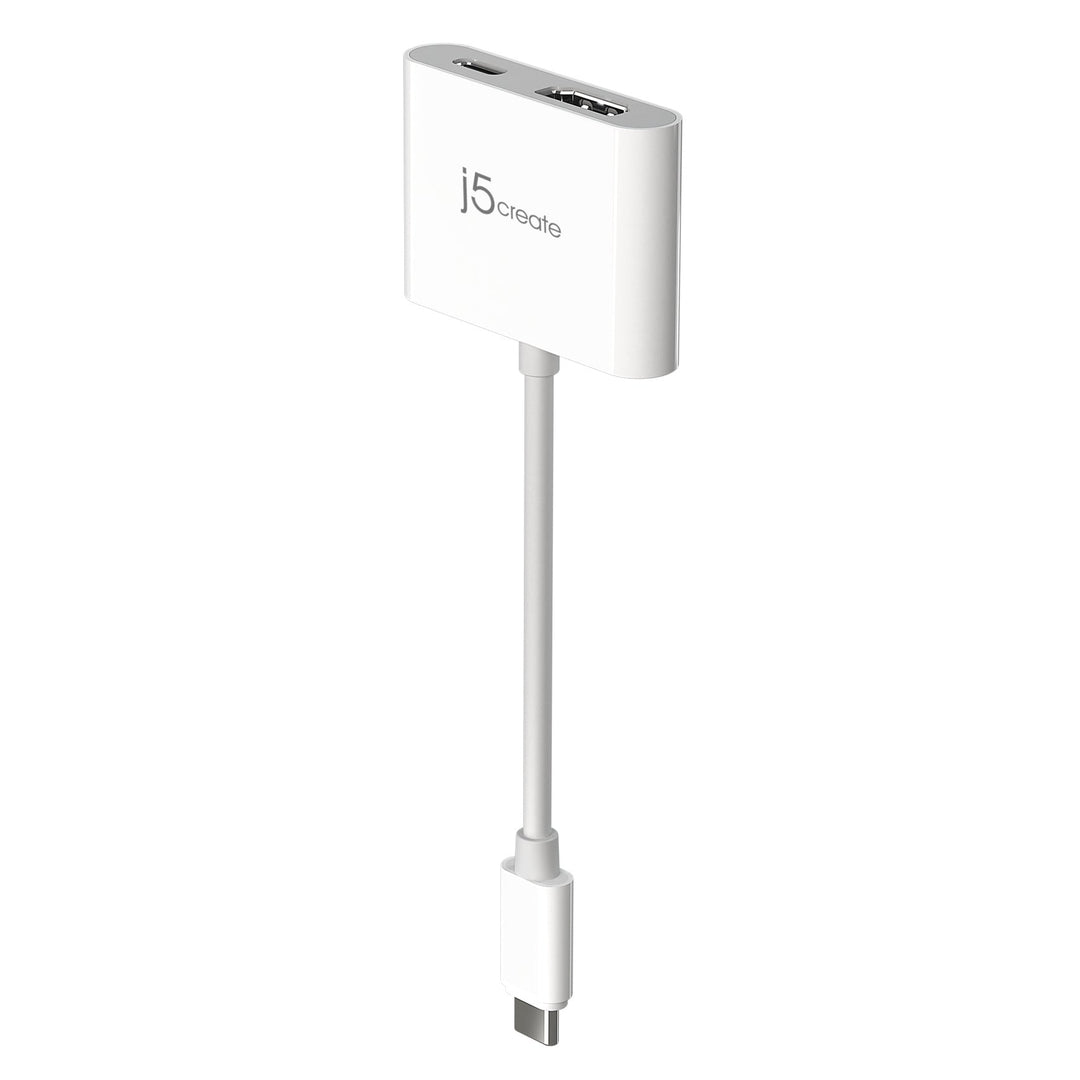

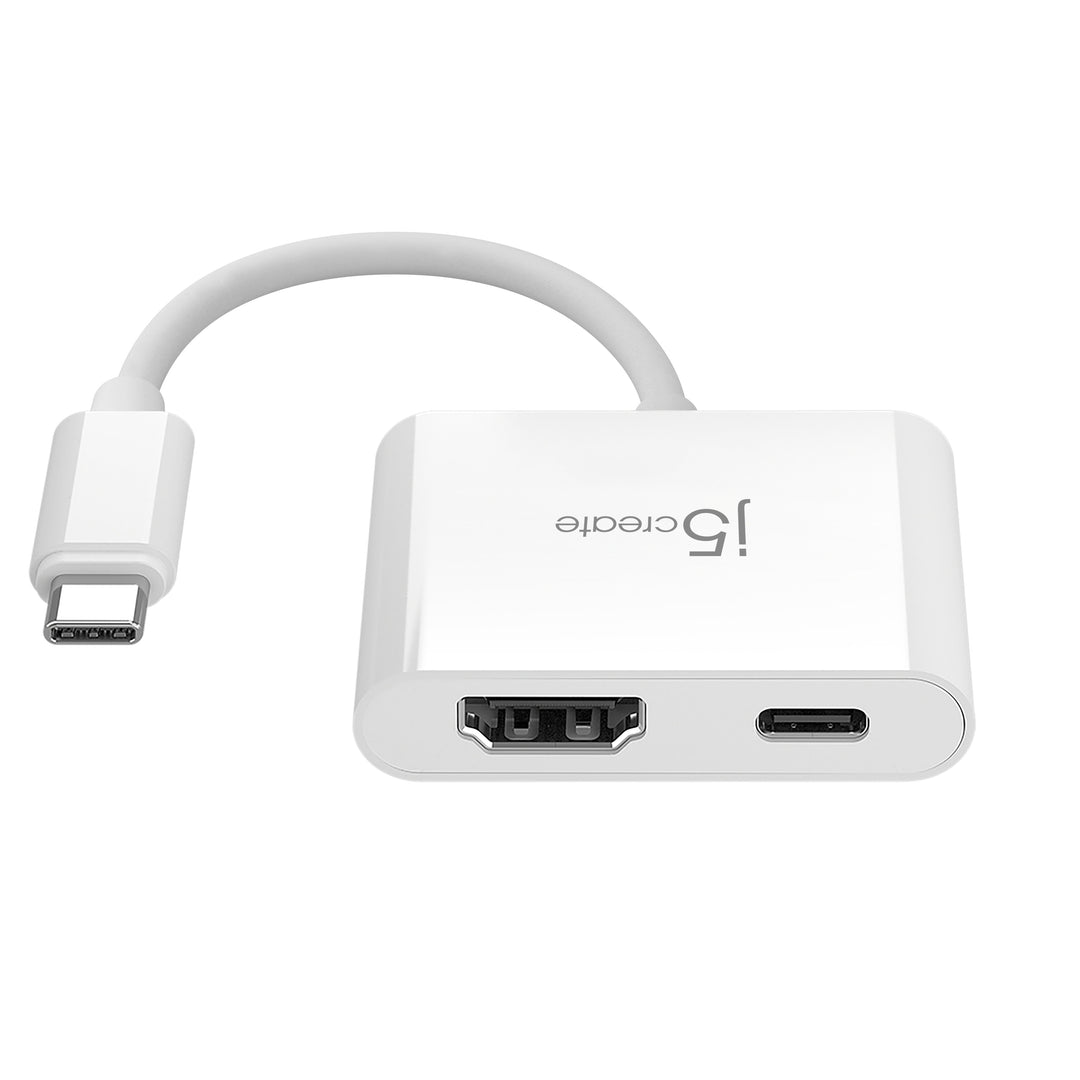

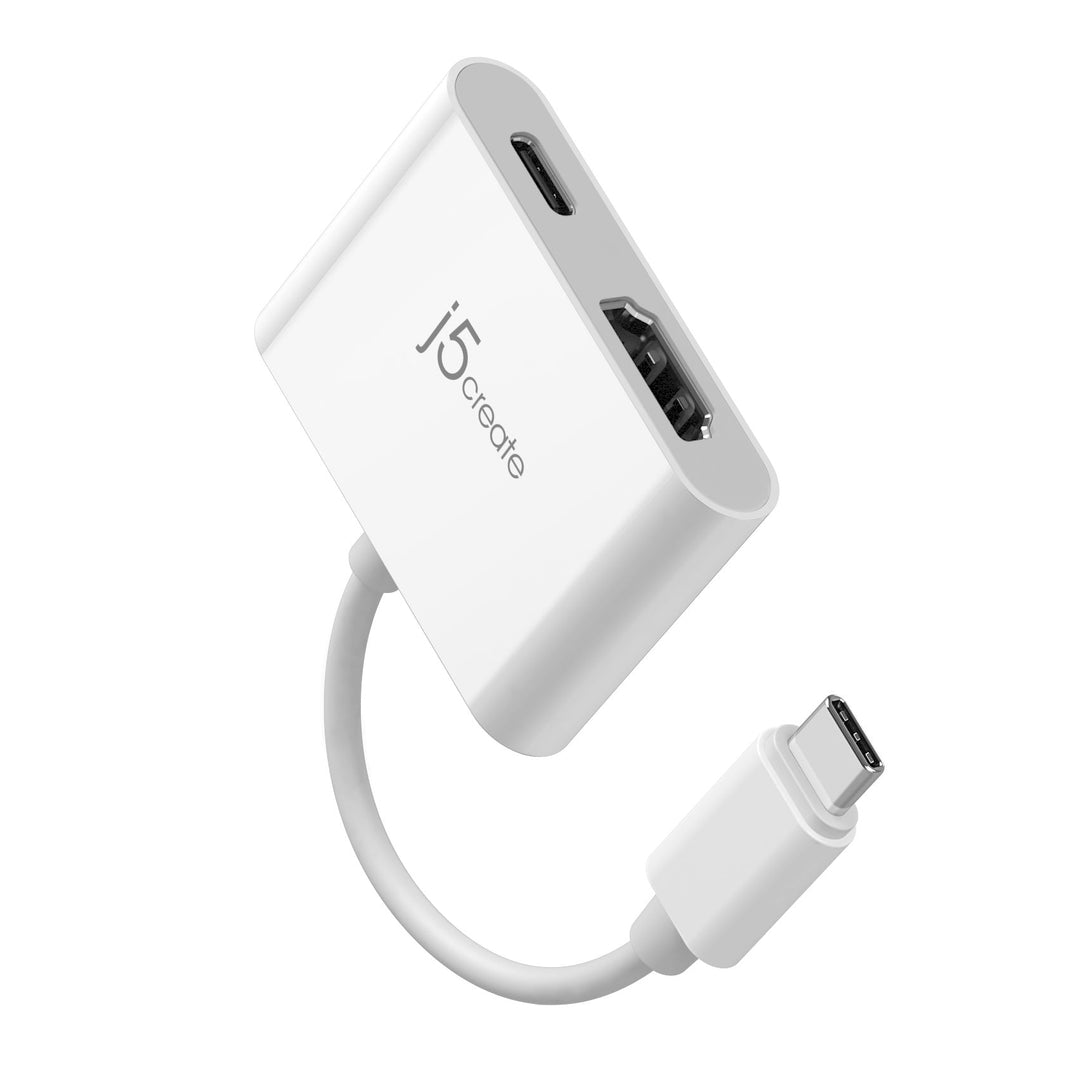

J5CREATE USB-C TO 4K HDMI WITH POWER DELIVERY ADAPTER



• • • Available DisplayPortâ„¢ Alt Mode over USB-C® port for video output
    • Available USBâ„¢ Power Delivery over USB-C® to support charging to a mobile device.


    Special Notes:

• • DisplayPortâ„¢ Alternative mode is required to output to a display via the HDMIâ„¢ port.

    • Power adapter not included. If applicable, please use your computer’s OEM power adapter.
    • Your mobile device might require more power than your charger allows when using the adapter and charging your device simultaneously. To ensure the JCA152 powers and charges your mobile device while in use, a power adapter with a wattage rated higher than the OEM power adapter may be required.





    Specifications




    Hardware
    Warranty	2 Year Limited
    Host Connector	USB-Câ„¢
    Video Output	HDMIâ„¢
    USB-Câ„¢ Pass-Through	N/A
    Power Source	Bus-powered, Self-powered
    Audio Supported	Yes
    Ports	1 - USB-C® 100W PD for upstream charging 1 - HDMI™ Output
    Performance
    Maximum Display Resolution	3840 x 2160 @ 30 Hz 2560 x 1440 @ 144 Hz 1920 x 1080 @ 144 Hz
    Maximum Display Refresh Rate	N/A
    Displays Supported	1
    Audio Channel	HDMIâ„¢ 2.1
    Power
    Power Delivery	Up to 100W via USB-C®
    Power Consumption	≥ 350 mA
    Input Current	Up to 20V
    Input Voltage	Up to 5A
    Output Current	Up to 20V
    Output Voltage	UP to 4.75A
    Physical Specifications
    Color	White
    Enclosure Type	ABS Plastic
    Cable Length	3.23 in. (82 mm)
    Product Height	0.43 in. (11 mm)
    Product Width	1.97 in (50 mm)
    Product Depth	1.38 in (35 mm)
    Product Weight	0.69 oz / 19.5 g
    Storage Temperature	14 to 140°F (-10 to 65°C)
    Storage Humidity	< 85% non-condensing
    Operating Temperature	32 to 118°F (0 to 47°C)
    Operating Humidity	< 85% non-condensing




    Package Contents

    • 1 - JCA152 USB-C® to 4K HDMIâ„¢ Adapter with Power Delivery
    • 1 - Quick Installation Guide
