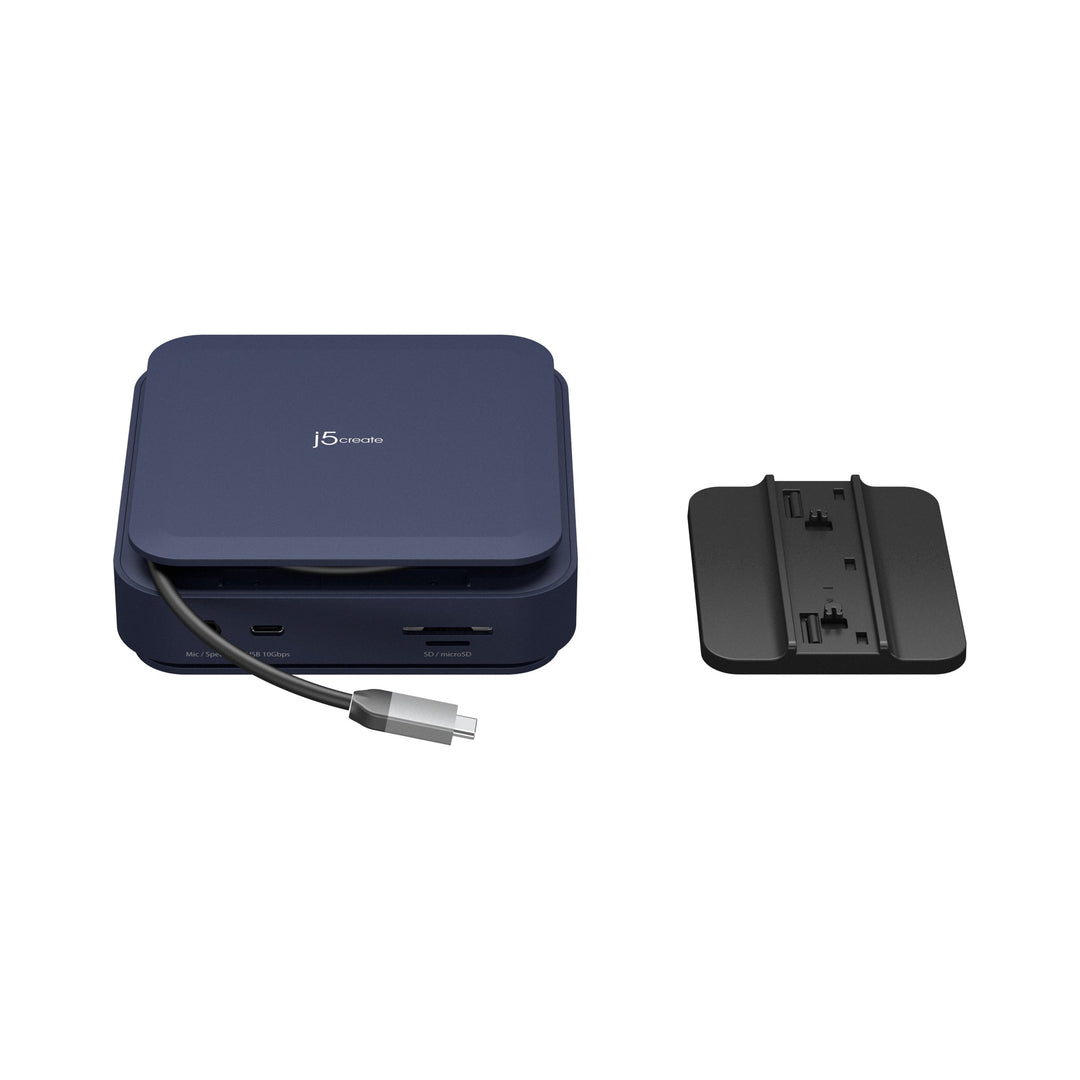

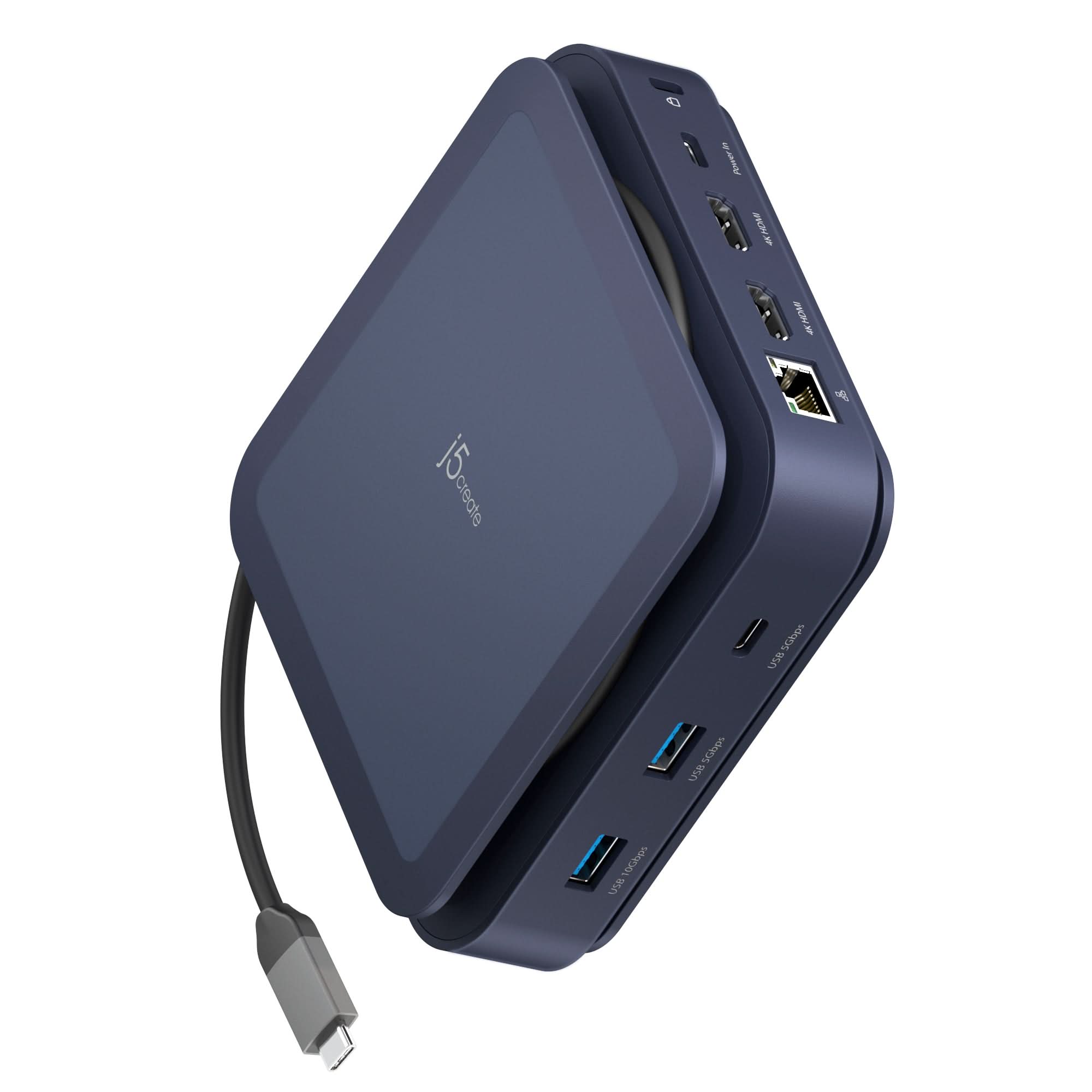

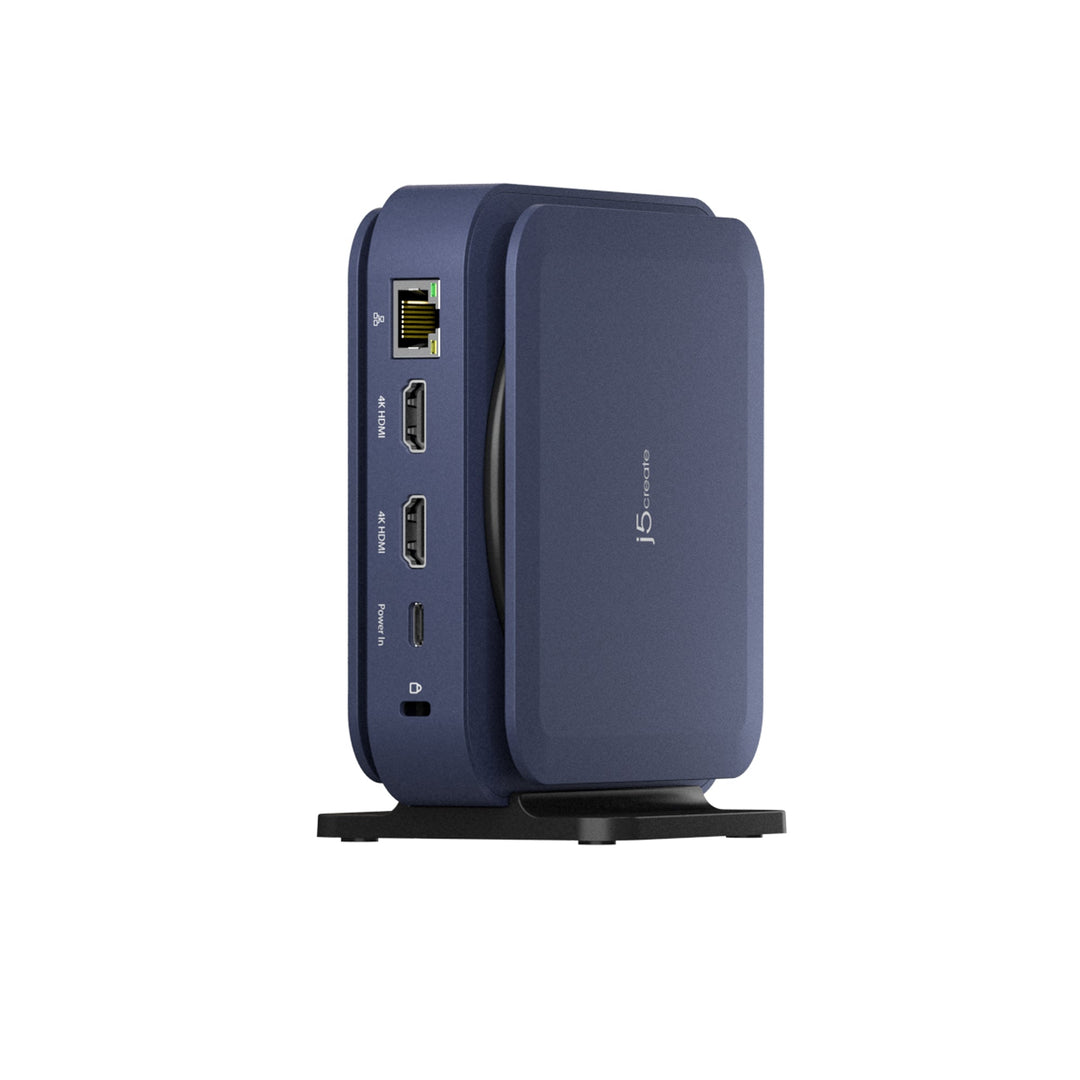

J5CREATE USB-C DUAL 4K HDMI DOCK
J5CREATE USB-C DUAL 4K HDMI DOCK
Special Price
₹11,018.00
Regular Price
₹14,690.00
Customers are viewing this product
SKU:
ETK-Computer-USB Cables-034
In stock
About the item

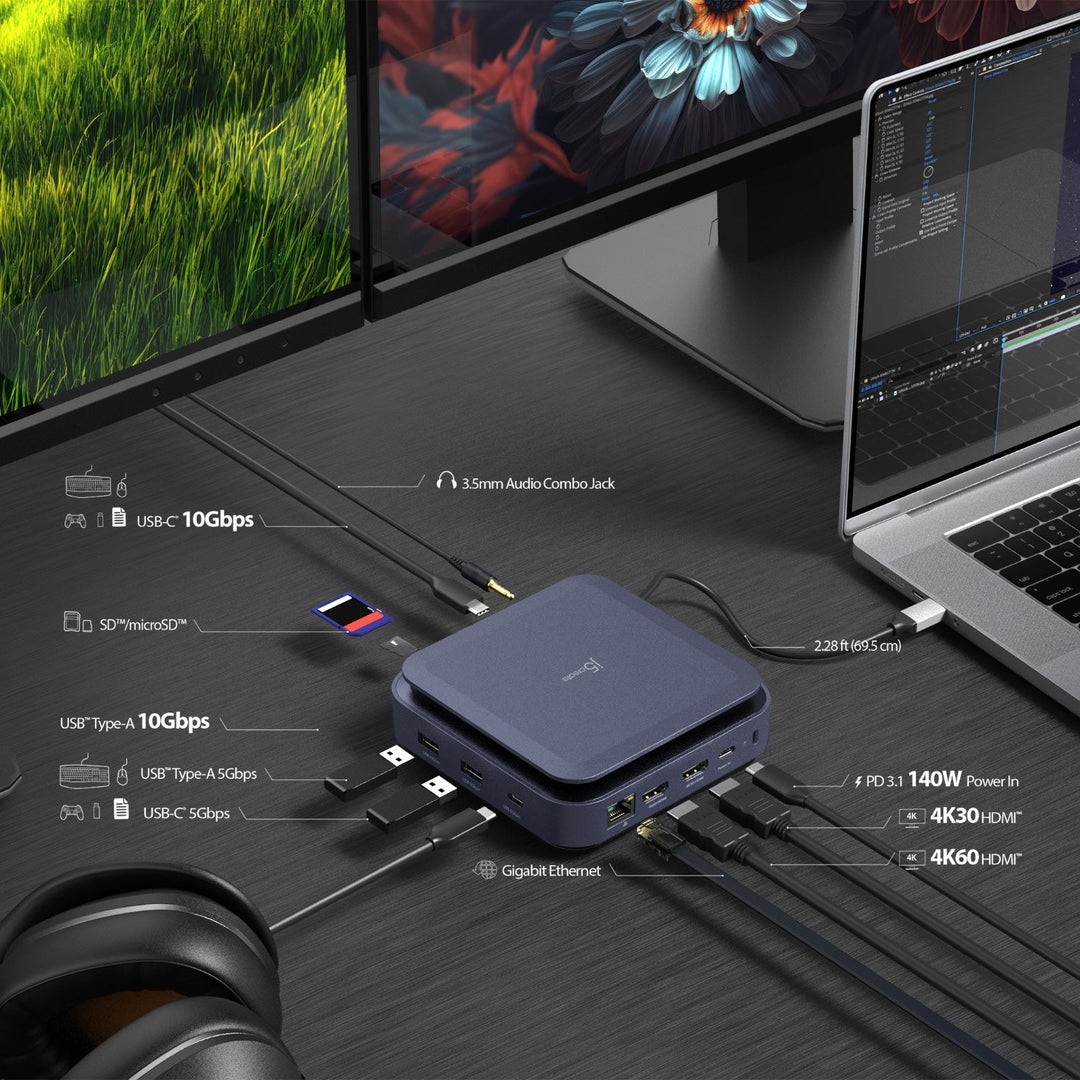

- Supports dual 4K HDMI„ (4K@60Hz + 4K@30 Hz)
- Supports Power Delivery 3.1 140W power in. Offers up to PD 130W pass-through charging to host.
- Two USB„ 10Gbps and two USB„ 5Gbps ports for connecting peripherals
- Reliable network connectivity via the Gigabit Ethernet
- Includes SD„/microSD„ card reader
- Cable storage compartment
- Security lock
Specifications
|
|
| Specification |
Details |
| Audio Supported |
Yes |
| Host Connector |
1 - USB-C® Male (PD 3.1 130W, 28V / 4.65A) |
| Network Interface |
Yes |
| Ports |
1 - USB-C® PD-in PD3.1 140W (28V/5A) |
|
2 - USB-C® 5Gbps & 10Gbps |
|
2 - USB„ Type-A 5Gbps & 10Gbps |
|
1 - Combo 3.5mm Audio Jack |
|
1 - HDMI„ (USB„ display max resolution 4K@30Hz) |
|
1 - HDMI„ (DP„-Alt max resolution 4K@60Hz) |
|
1 - RJ45 Gigabit Ethernet |
|
1 - SD„/microSD„ 3.0 |
| Power Source |
Bus-powered or self-powered |
| Video Output |
2 - HDMI„ Female |
| Warranty |
2 Year Limited |
| Performance |
2.1 Audio Channel via HDMI„ |
| Compatible Networks |
10/100/1000 Mbps |
| Displays Supported |
2 |
| Max Data Transfer Rate |
10Gbps |
| Max Display Refresh Rate |
60 Hz |
| Max Display Resolution |
3840 x 2160 |
| Power |
Input Current: Up to 5A |
|
Input Voltage: Up to 28V |
|
Output Current: Up to 4.65A |
|
Output Voltage: Up to 28V |
|
Power Consumption: ‰¤ 900 mA |
|
Power Delivery: Up to 140W via USB-C® |
| Physical Specifications |
Cable Length: 2.28 ft (69.5 cm) |
|
Color: Dark Blue |
|
Enclosure Type: Plastic |
|
Operating Humidity: < 85% non-condensing |
|
Operating Temperature: 30 to 116°F (-1 to 41°C) |
|
Product Depth: Body: 5.12 in. (130 mm) |
|
Holder: 3.15 in. (80 mm) |
|
Product Height: Body: 1.71 in. (43.5 mm) |
|
Holder: 1.3 in. (33 mm) |
|
Product Weight: Body: 14.7 oz (416 g) |
|
Holder: 0.8 oz (22 g) |
|
Product Width: Body: 5.12 in. (130 mm) |
|
Holder: 5.12 in. (130 mm) |
|
Storage Humidity: < 85% non-condensing |
|
Storage Temperature: 0 to 155°F (-17 to 68°C) |
| Package Contents |
1 - JCD3196 Type-C Dock Dual 4K HDMI„ |
|
1 - Dock Holder |
|
1 - Quick Installation Guide (QIG) |
