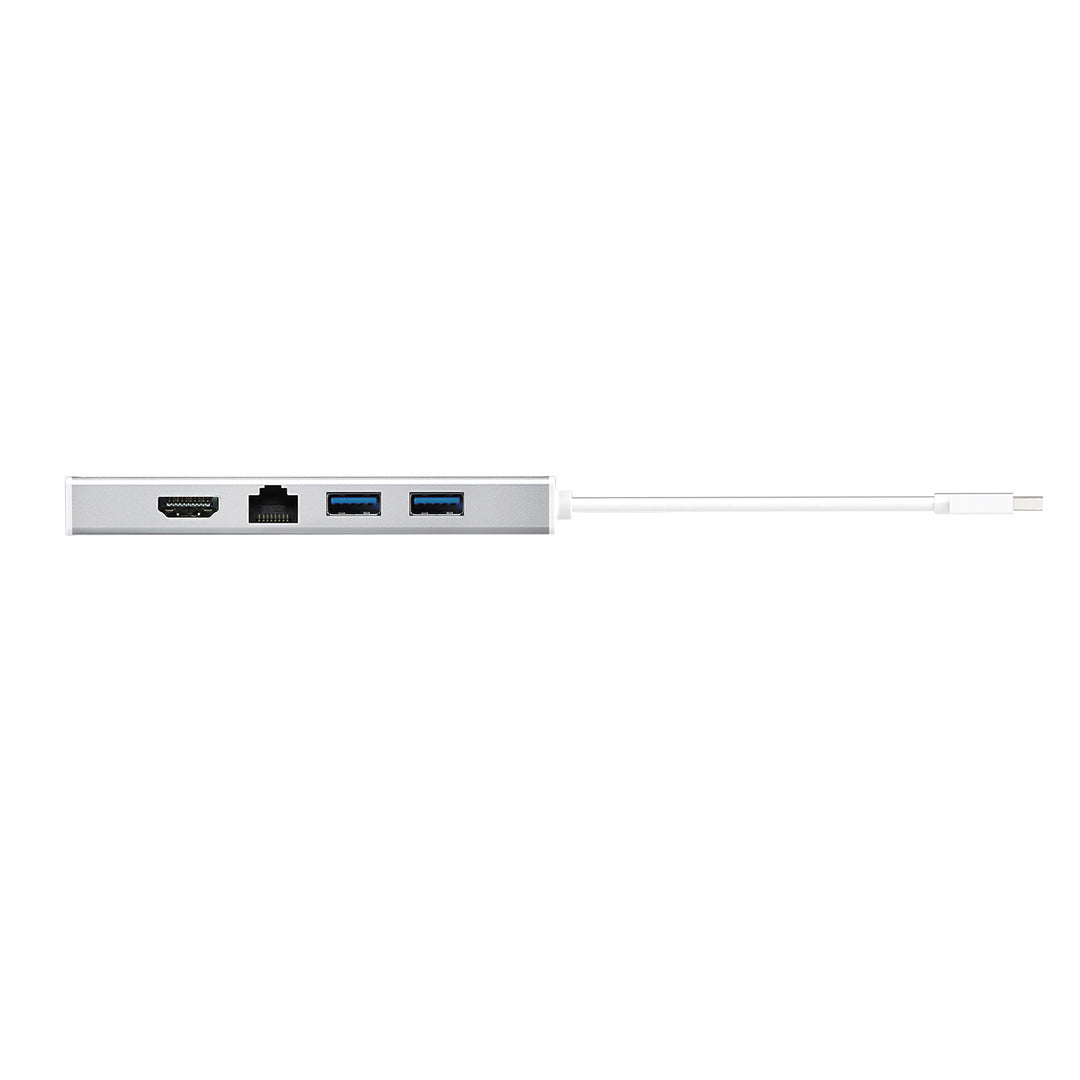

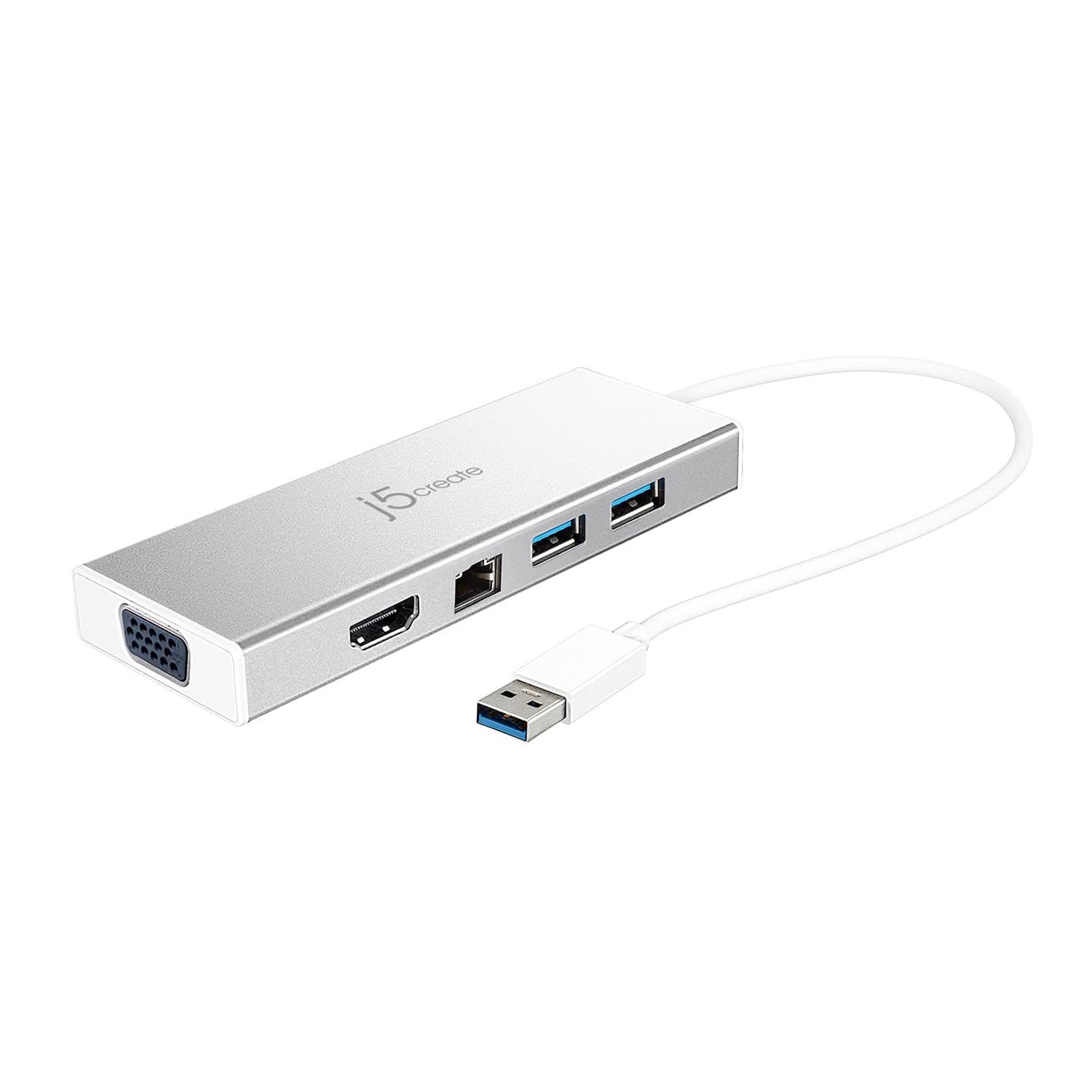

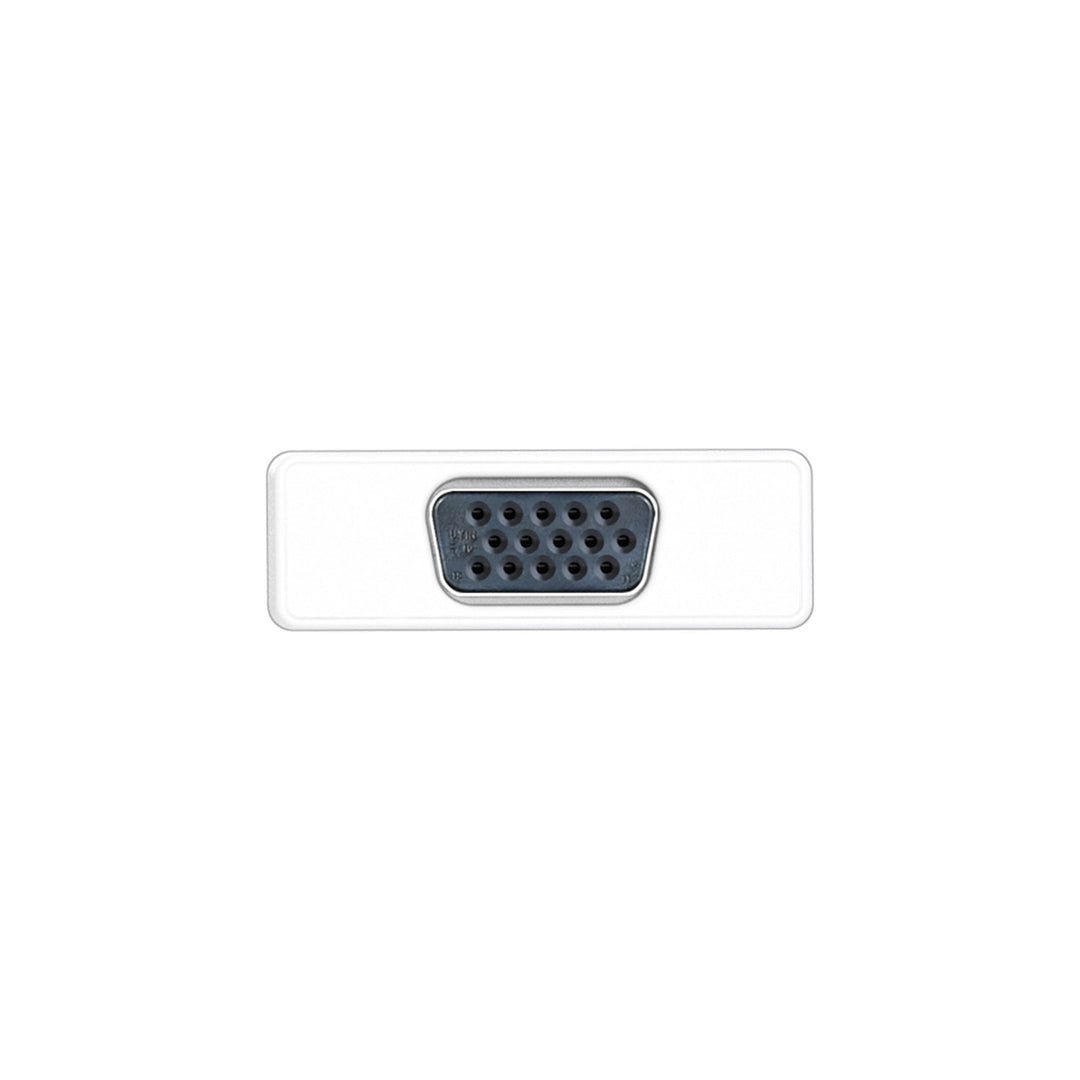

This dual-monitor USB„ 3.0 mini docking station features two USB„ 3.0 Type-A ports for connecting extra peripherals, an HDMI„ & VGA output port, providing up to 2048 x 1152 resolutions, as well as an integrated RJ45 Ether port for a reliable wired network connection.
With its space-saving, travel-friendly design, you can quickly set up a workstation while on the go!
Features
€ Create a dual-monitor setup with HDMI„ and VGA outputs and together with your laptop display, you can have a maximum of 3 displays € Compatible with USB„-enabled macOS® & Windows® laptops € Backwards compatible with USB„ 2.0 and 1.1 hosts and devices € Compact and lightweight design for maximum portability € 4 display modes: Mirror, Extended, Primary, or Rotation* € USB„ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB„ 2.0 € Reliable network connectivity via the Gigabit Ethernet port
System Requirements
Microsoft® Windows® 7 or later (32-bit or 64-bit) macOS® 10.9 or later
Available USB„ 3.0 port
For one 2K (1920x1080 @ 60 Hz) full-screen video playback
o CPU: Intel® Core„ i5 Quad Core or AMD„ equivalent
o RAM: 4 GB memory or higher
o GPU: Intel® HD Graphics 5000 or AMD„ equivalent
For two 2K (1920x1080 @ 60 Hz) full-screen video playback
o CPU: Intel® Core„ i7 Quad Core or AMD„ equivalent
o €˜Windows® Media Player€™ is recommended for Windows® 8.1/8/7 users
o €˜Movies & TV€™ is recommended for Windows® 10 users
Gigabit Ethernet requires driver installation on macOS®

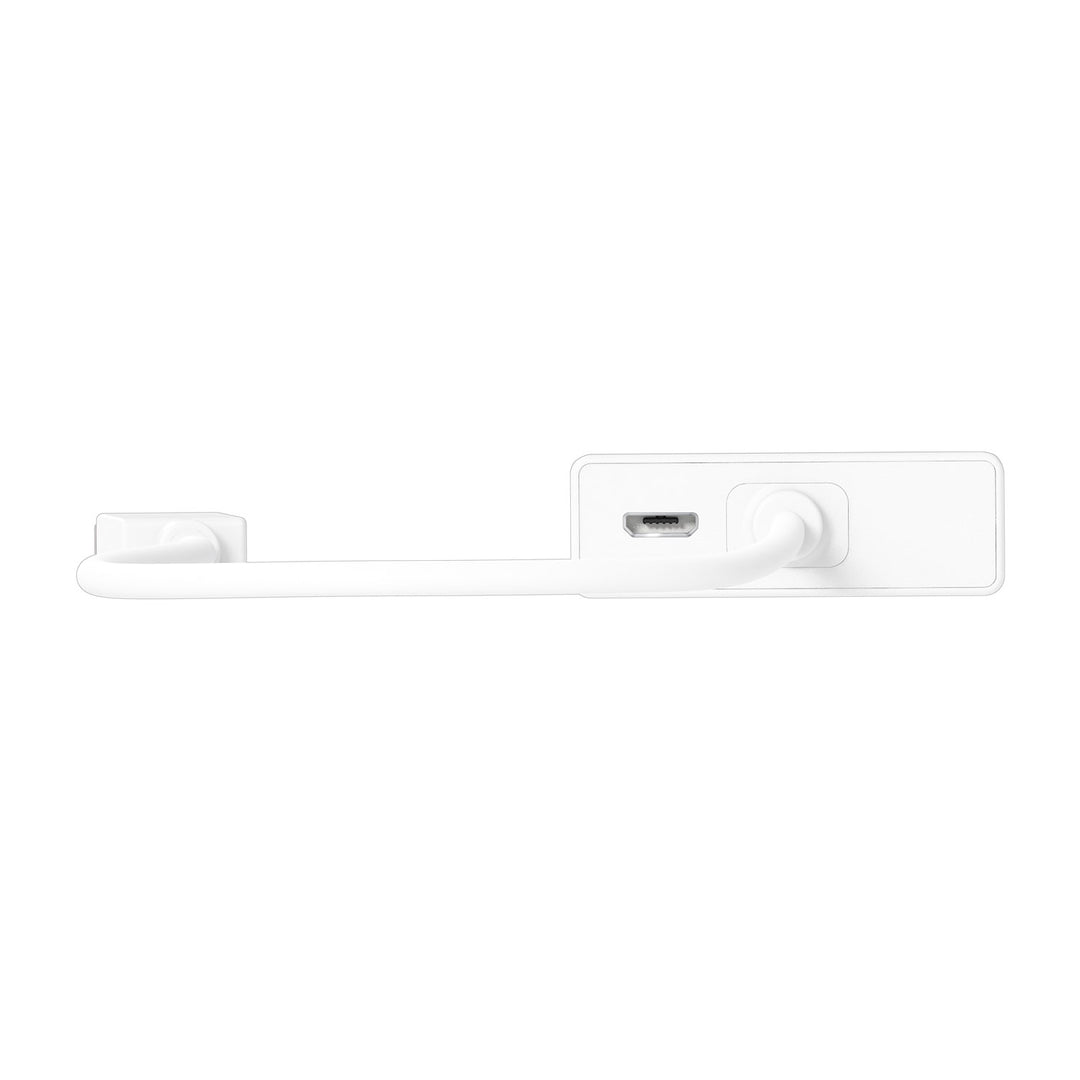

The micro USB„ Power In port is optional, but it is recommended when using with high-powered USB„ devices or with multiple peripherals at once.
macOS® 10.13.6 is limited to supporting only one additional display and your MacBook® must support AirPlay®
Rotation mode is supported on Windows® only
To ensure that your device is equipped with the most current driver, please visit our website at j5create.com and install the latest driver for this model
