J5CREATE USB 3.0 Multi-Adapter VGA & Gigabit Ethernet

Special Price ₹6,908.00 Regular Price ₹9,090.00

USB 3.0 SuperSpeed

  • • USB 3.0 SuperSpeed port
  • • Transfer rates of up to 5 Gbps, enable bulky file backup
  • • Backwards compatible with USB 2.0 and USB 1.1 devices
  • • Hot-swapping connect / disconnect without powering down
  • • Plug-and-play
  • • Compatible with Windows and Mac OS


USB 3.0 Display

  • • Supports display resolution: 2048x1152 @ 32 bit
  • • Supports 1080p Video Playback
  • • Supports Display Modes: Primary, Extended, Mirror
  • • Display Rotation: 0°, 90°, 180°, 270° (Please note: Rotation Mode functions on Windows only)


USB 3.0 Gigabit Ethernet

  • • Quickly add a Gigabit Ethernet port through USB 3.0
  • • USB 3.0 plug-and-play and backwards compatible with USB 2.0/1.1
  • • Transfer all your files almost instantly over a true Gigabit network.
  • • IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
  • • USB bus-powered
  • • Activity and Link LED indicators

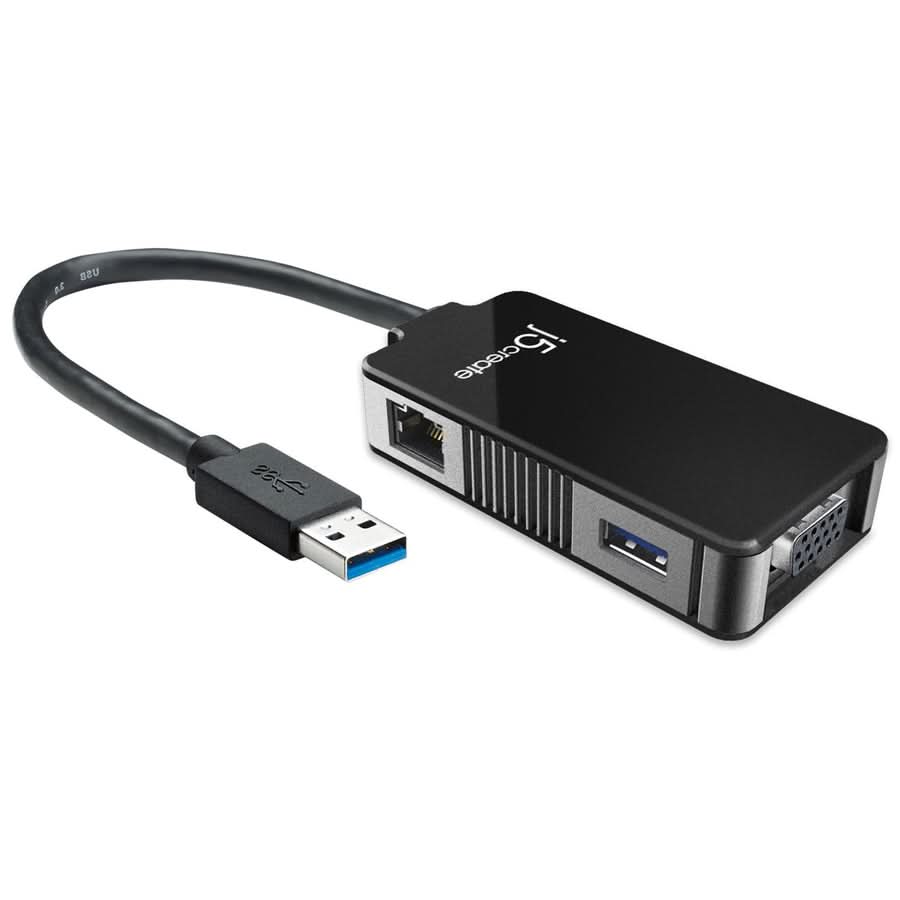

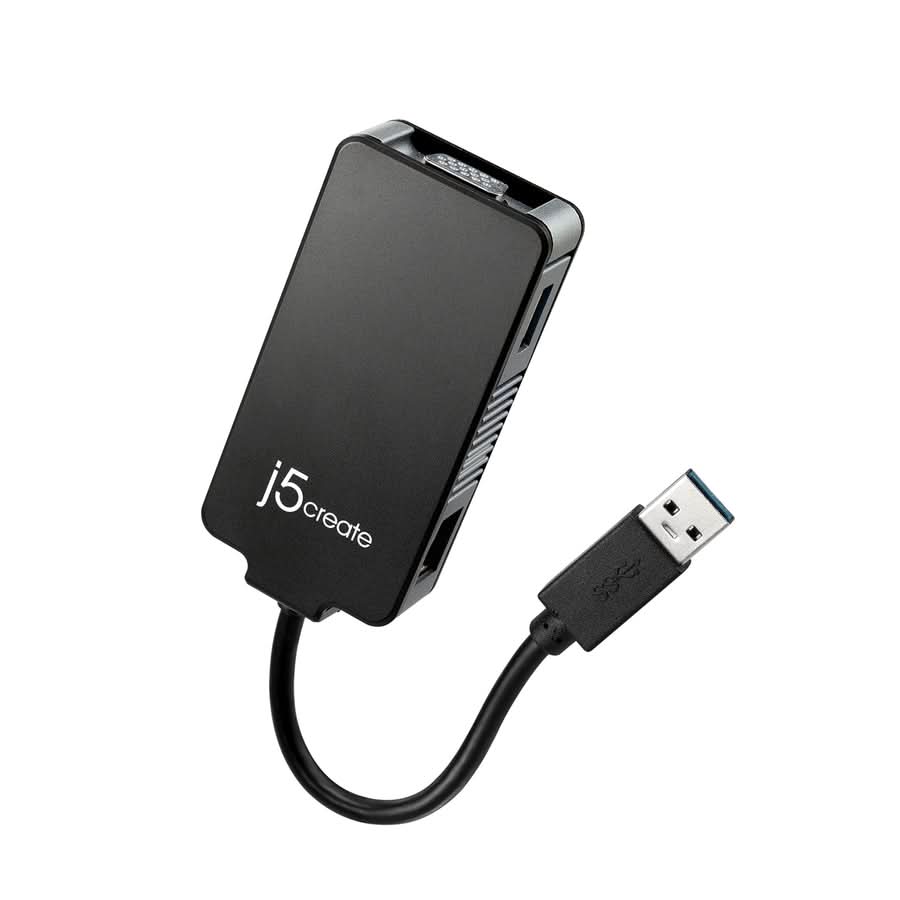

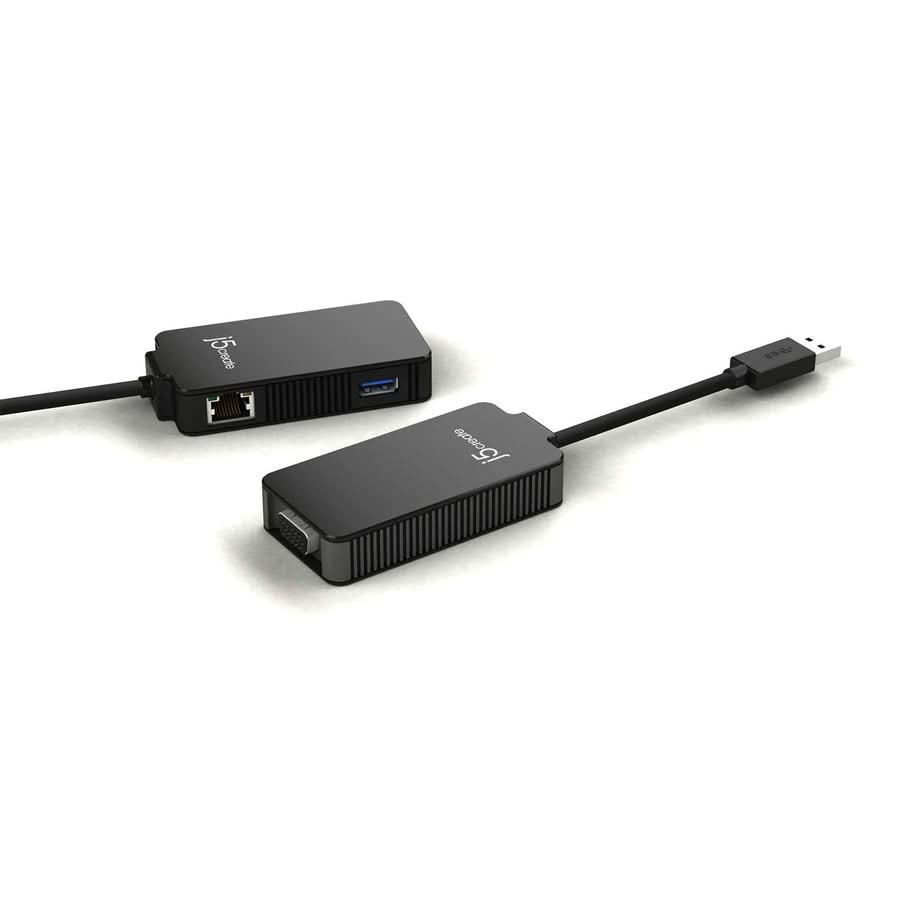

The JUA370 USB 3.0 Multi-Adapter VGA provides extra connectivity from your computer with 5 Gbps transfer speed. These pocket-sized multi-adapters allow you to add an additional USB computer peripheral, VGA Monitor or Gigabit LAN through your USB port.

With this Multi-Adapter, there's no need to open your computer to add an expensive graphics card. You can simply load the drivers, plug the adapter to the USB port, then plug in the VGA monitor cable into the adapter and you are ready.

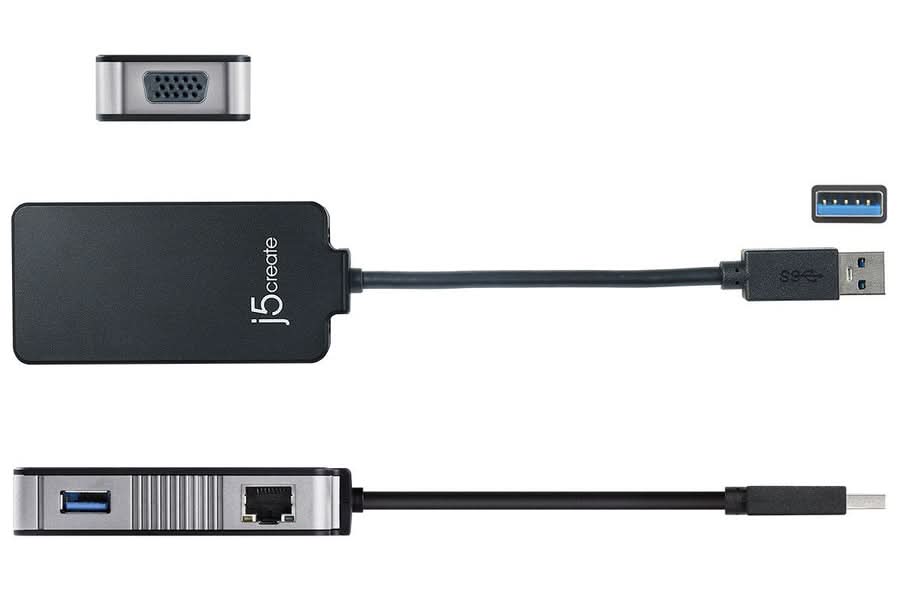

Interface

Host Interface

USB 3.0 Male Type-A connector

Video Interface

VGA-DB 15 pin Female connector

Ethernet Port

RJ-45 Female connector (Gigabit Ethernet)

USB Port

USB 3.0 Female connector

Power

Power Mode

Bus-powered

Functions

Display

Video Playback: 1080p
Display resolution: 2048 x 1152 @ 32 bit
Display Modes: Primary, Extended, Mirror
Display Rotation: 0°, 90°, 180°, 270°

Ethernet

Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes:

  • Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet, or Microsoft wake-up frame
  • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
  • Supports Jumbo Frame
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload



Physical Specifications

Dimensions

Main body:
43.75 (W) x 90.6 (H) x 18.6 (D) mm
Cable length: 14.5 cm

Weight

Approximately 58.5 g (including cable)



System Requirements

  • Microsoft® Windows® 10 or later
    macOS® 10.9 or later
  • Available USBâ„¢ 3.0 port

Note:
Due to constant advancements in technology we, at j5create, make it a priority to give you the latest drivers available for our products. To ensure that your device is equipped with the most current driver, please visit our driver page and install the latest driver for this model.

Package Contents

  • JUA370 USB 3.0 Multi-Adapter VGA & Gigabit Ethernet
  • Quick Installation Guide
  • Driver CD
More Information
Featured Yes
brand j5create
