2-SuperSpeed+ USB„ 3.1 Gen 2 ports provide up to 10 Gbps transfer speed, which is 2x faster than USB„ 3.0, and 20x faster than USB„ 2.0
Supports HDMI„ resolutions up to 4K @ 60 Hz with High Dynamic Range (HDR) and 3D vision
USB-C„ 3.1 Gen 2 with PD 3.0 provides up to 60W of charging power + data transfer
Memory card reader/writer slots allow for external memory access up to 2 TB, supporting microSD„ and SD„ 3.0 UHS-I with data transfer speeds up to 104 Mbps
Plug-and-play, no driver installation required
Specifications
Category
Specification
Hardware
Audio Supported
Yes
Host Connector
1 - USB-C„ 3.1 Male
1 - USB„ Type-A Male
Network Interface
N/A

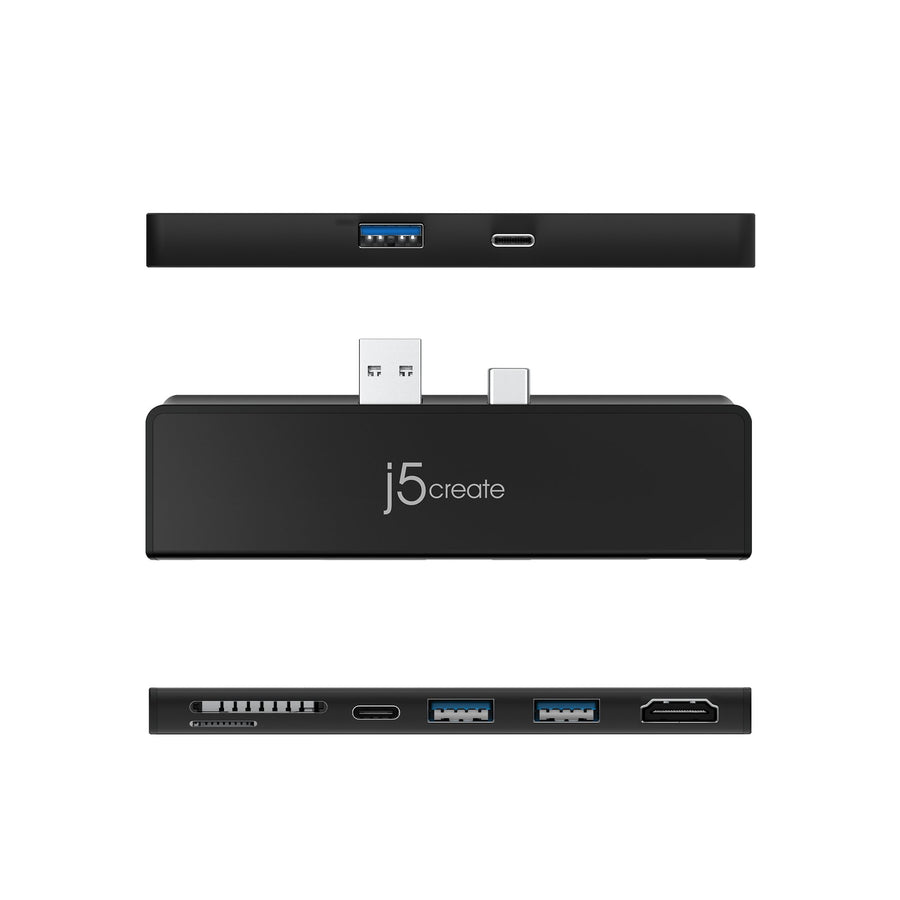

Ports
2 - USB„ 3.1 Gen 2 Type-A
1 - USB-C„ 3.1 Gen 2 (PD 3.0 + Data Transfer)
1 - microSD„ & SD„ Card Reader/Writer
1 - HDMI„
Power Source
Bus-powered or self-powered
Video Output
1 - HDMI„ Female
Warranty
2-Year Limited
Performance
Audio Channel
2.1 via HDMI„
Compatible Networks
N/A
Displays Supported
1
Max Data Transfer Rate
10 Gbps
Max Display Refresh Rate
60 Hz
Max Display Resolution
3840 x 2160
Power
Input Current
Up to 3A
Input Voltage
Up to 20V
Output Current
Up to 3A
Output Voltage
Up to 20V
Power Consumption
‰¤ 400 mA
Power Delivery
Up to 60W via USB-C„
Physical Specifications
Cable Length
N/A
Color
Black or Silver
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (-1 to 41°C)
Product Depth
0.37 in. (9.5 mm)
Product Height
4.65 in. (118 mm)
Product Weight
Silver: 1.57 oz (44.5 g)
Black: 1.68 oz (47.5 g)
Product Width
1.44 in. (36.5 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-17 to 68°C)
Package Contents

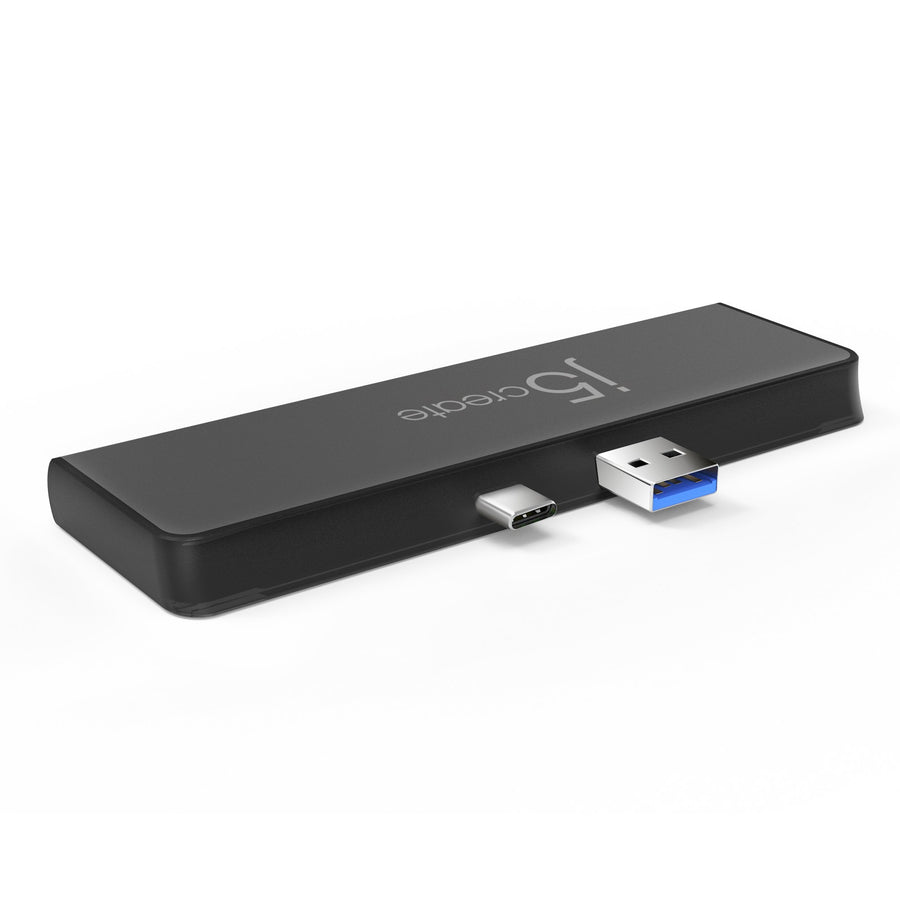

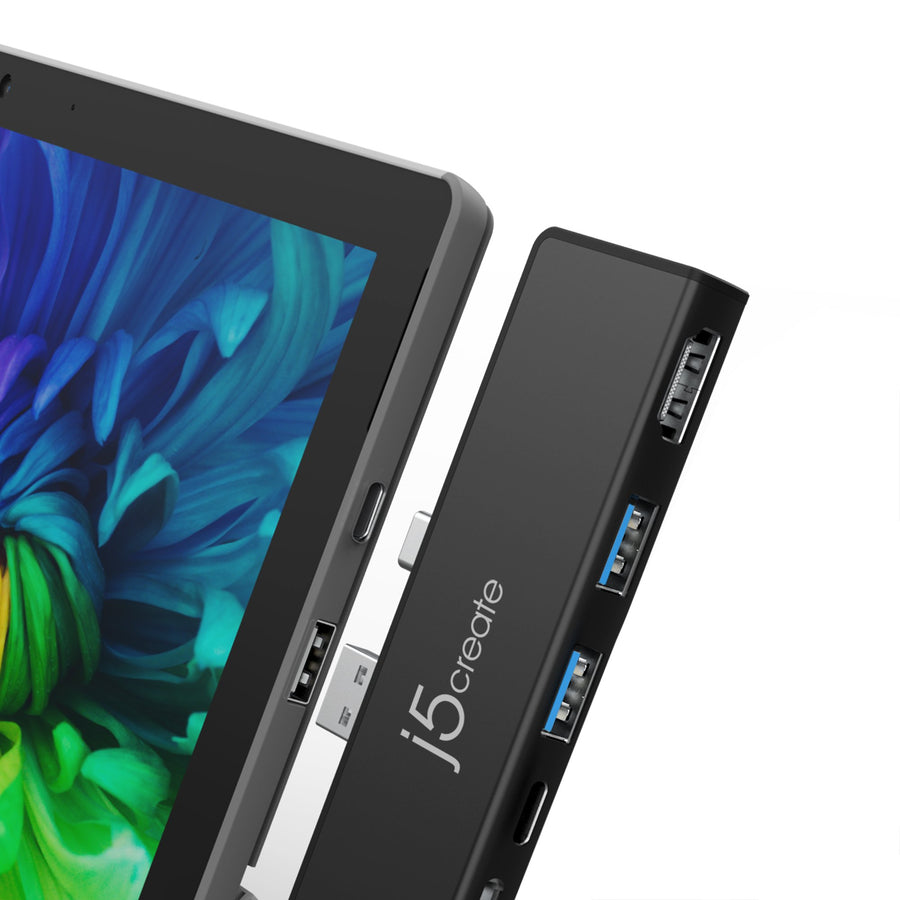

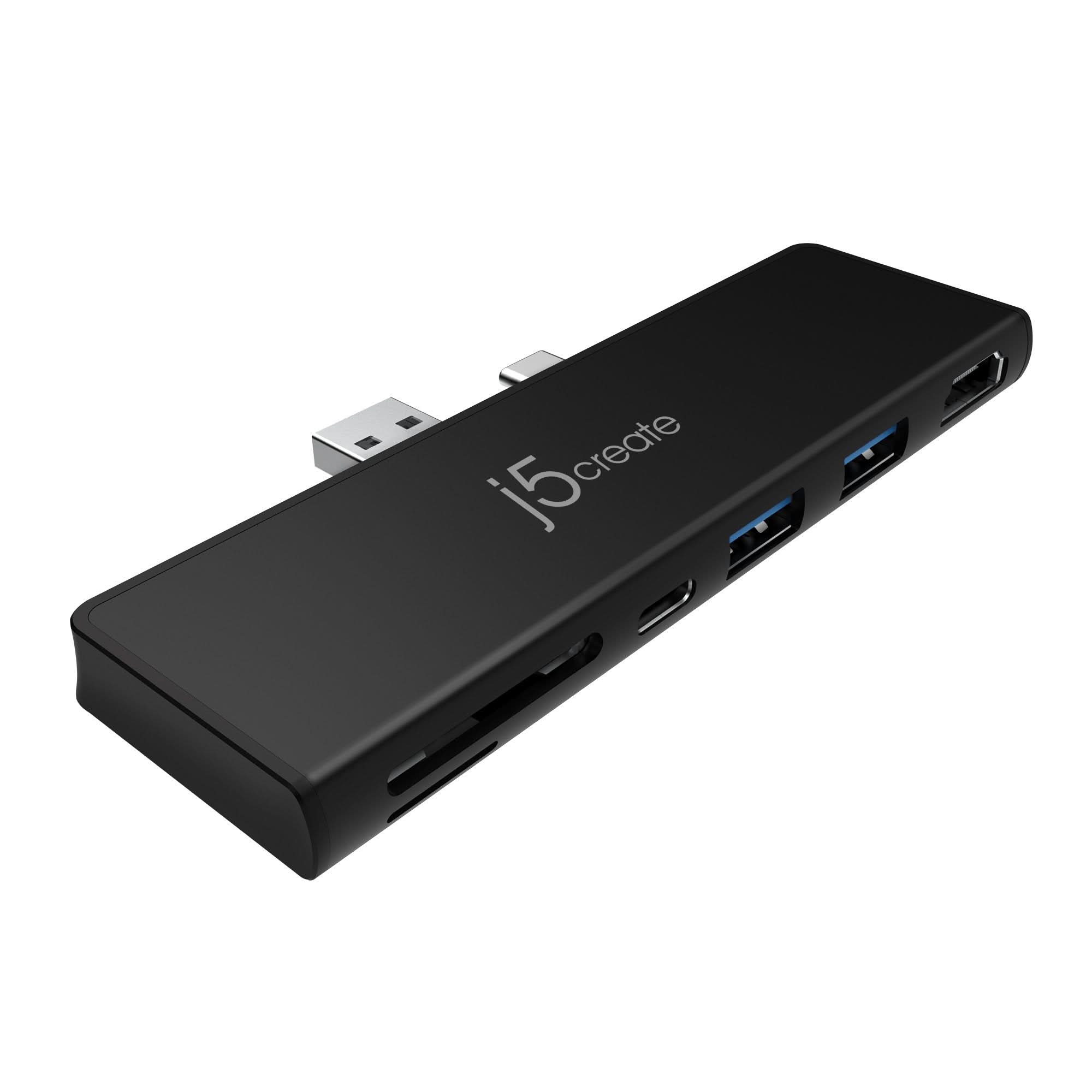

1 - JCD324 ULTRADRIVEMINIDOCK„ 7-in-1 for Surface„ Pro 7
