J5CREATE SCREENCAST 4K WIRELESS DISPLAY HDMI EXTENDER

Special Price ₹13,193.00 Regular Price ₹17,590.00

About This Product


The JVAW75 4K Wireless Display HDMI„ Extender comes with both a transmitter and receiver kit. With a receiver distance of up to 98.4 feet (30m) and minimal latency, it can deliver a 4K video and audio signal to an HDMI„ capable TV set, projector, or monitor.

Other HDMI„ sources, such as DVD players, Blu-ray„ players, PCs, notebooks and game consoles (ex. Sony® PlayStation„ 4 / 5, Nintendo Switch„) can be extended. The JVAW75 supports resolutions up to 4K and stereo digital audio through HDMI„ and is completely HDCP compliant so o you can watch your favorite streaming services.

Features



€ Cast 4K content wirelessly from your mobile device to a larger TV or display
€ Built-in antenna supports a wireless range up to 98.4 ft (30m)
€ High-speed audio and video transmission with low latency (less than 0.13s/130 ms)
€ With support of DRM technology and HDCP 1.4 compliance, you can watch your favorite shows/movies on your favorite streaming apps, such as Netflix®, Amazon® Prime Video„, Hulu„, DISNEY+„, and other streaming services
€ Supports 4K@30 and 1080@60 video
€ Built-in dual band (2.4 GHz and 5 GHz) offers a steady connection and smooth streaming experience
€ Compact design is great for home, office, school, or on-the-go
€ Compatible with a variety of wireless technologies, including Miracast„, AirPlay®, and Google„ Chromecast„



System Requirements

  • Available HDMI„ output device


Hardware

Warranty

1 Year Limited

Host Connector

HDMI„ male

Power Source

USB-C® Female

LED Indicators

HDMI„ Transmitter (TX):
-Solid White: Device is connected to the RX successfully and is able to be operated properly.
-Blinking (Slow): The device is ready and trying to connect to RX as Receiver is being connected up.
-Blinking (Fast): The device is processing to pair with RX.
-Light off: The device has malfunctioned, OR no power input.
HDMI„ Receiver (RX):
-Solid White: The device is power on and operating properly.

Ports

N/A

Infared

N/A

Performance

HDMI„ Compliance

HDMI„ v1.4

HDCP Compliance

HDCP 1.4

Audio Channel

2.1 via HDMI„

Display Output Supported Resolutions

3840 x 2160 @ 30 Hz
1920 × 1080 @ 60 Hz
1280 × 720 @ 60 Hz

RF Output Power

N/A

Security (Encryption)

WPA2

Infared Return Frequency

N/A

ESD Protection

N/A

OVP Protection

N/A

Wireless Protocols

Standard

IEEE 802.11ac

Frequency

2.4 GHz, 5 GHz

Range

Up to 10 €“ 30 meters
*Transmission range up to 98 ft /30m, if signal crosses walls, signal distance might be shortened to 32 ft /10 m

Channel Width

20 MHz, 40 MHz

Antenna Type

Internal antenna

Physical Specifications

Color

White/ Grey

Enclosure Type

Plastic

Cable Length

HDMI„ Transmitter (TX): 6 in. (152.3 mm)
HDMI„ Receiver (RX): 6 in. (152.3 mm)

Product Height

HDMI„ Transmitter (TX): 2.42 in. (61.47 mm)
HDMI„ Receiver (RX): 2.42 in. (61.47 mm)

Product Width

HDMI„ Transmitter (TX): 2.6 in. (66 mm)
HDMI„ Receiver (RX): 2.6 in. (66 mm)

Product Depth

HDMI„ Transmitter (TX): 0.67 in. (17 mm)
HDMI„ Receiver (RX): 0.67 in. (17 mm)

Product Weight

HDMI„ Transmitter (TX): 2.22 oz (63g)
HDMI„ Receiver (RX): 2.22 oz (63g)

Operating Temperature

+14 to +104°F (-10 to +40°C)

Operating Humidity

< 85% non-condensing

Storage Temperature

-4 to +122°F (-20 to +50°C)

Storage Humidity

< 85% non-condensing


Package Contents

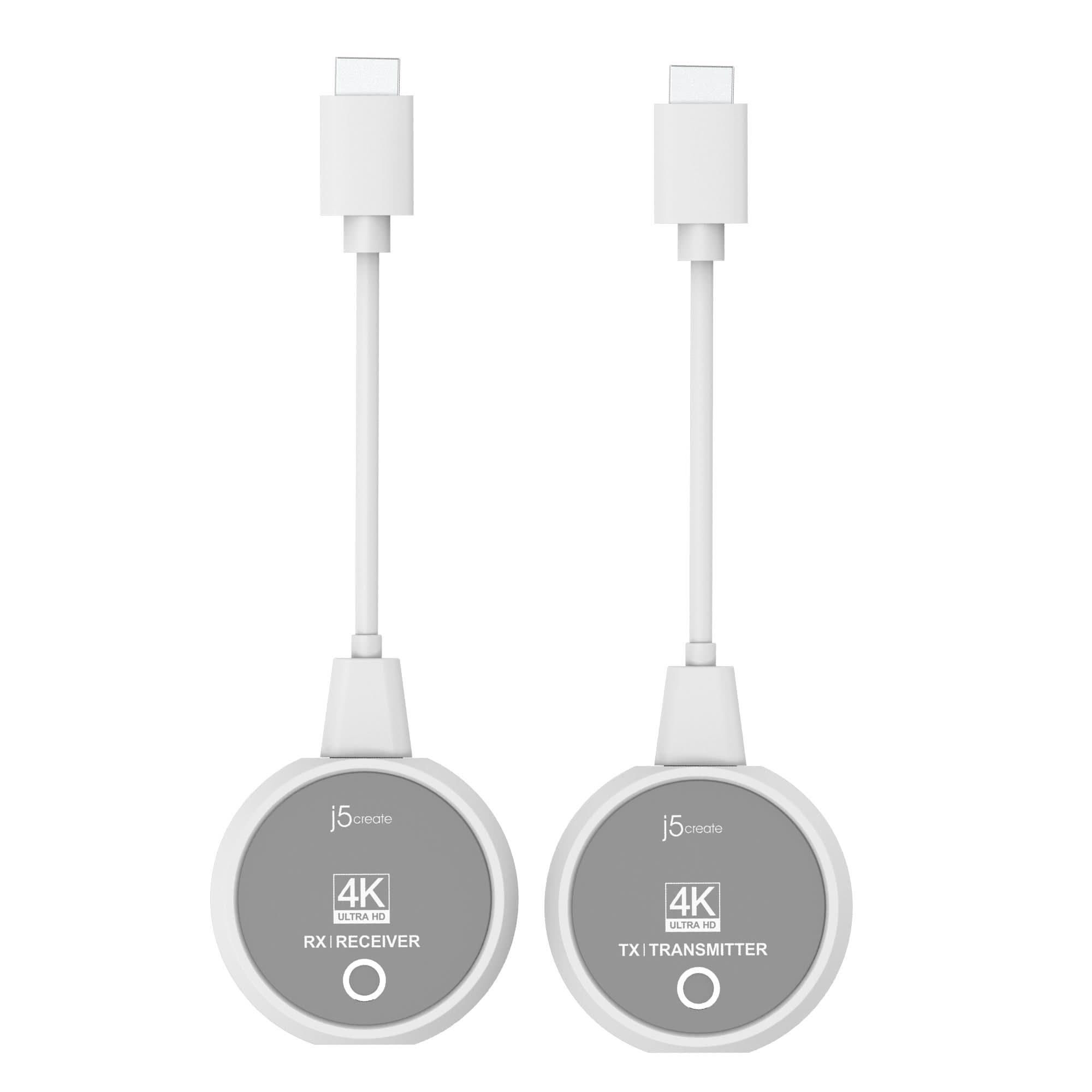

  • 1 €“ JVAW75 4K Wireless Display HDMI„ Extender (1 x Transmitter & 1 x Receiver)
  • 2 €“ USB-C® to USB„ Type-A power cable (Cable Length: 100 cm, Color: White)
  • 1 €“ HDMI„ extension cable (Cable Length: 60 cm, Color: White)
  • 1 - Quick Installation Guide (QIG)
