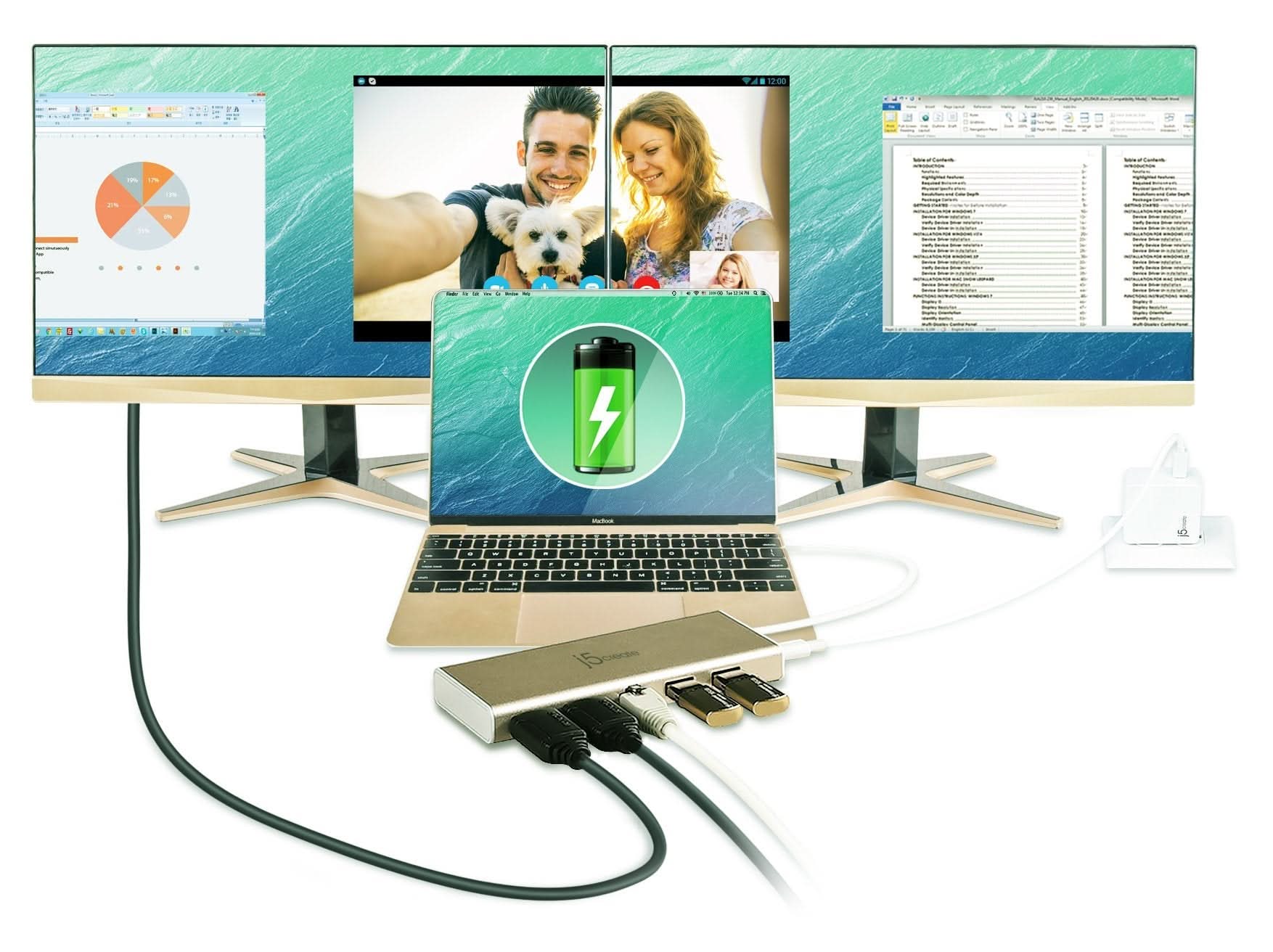

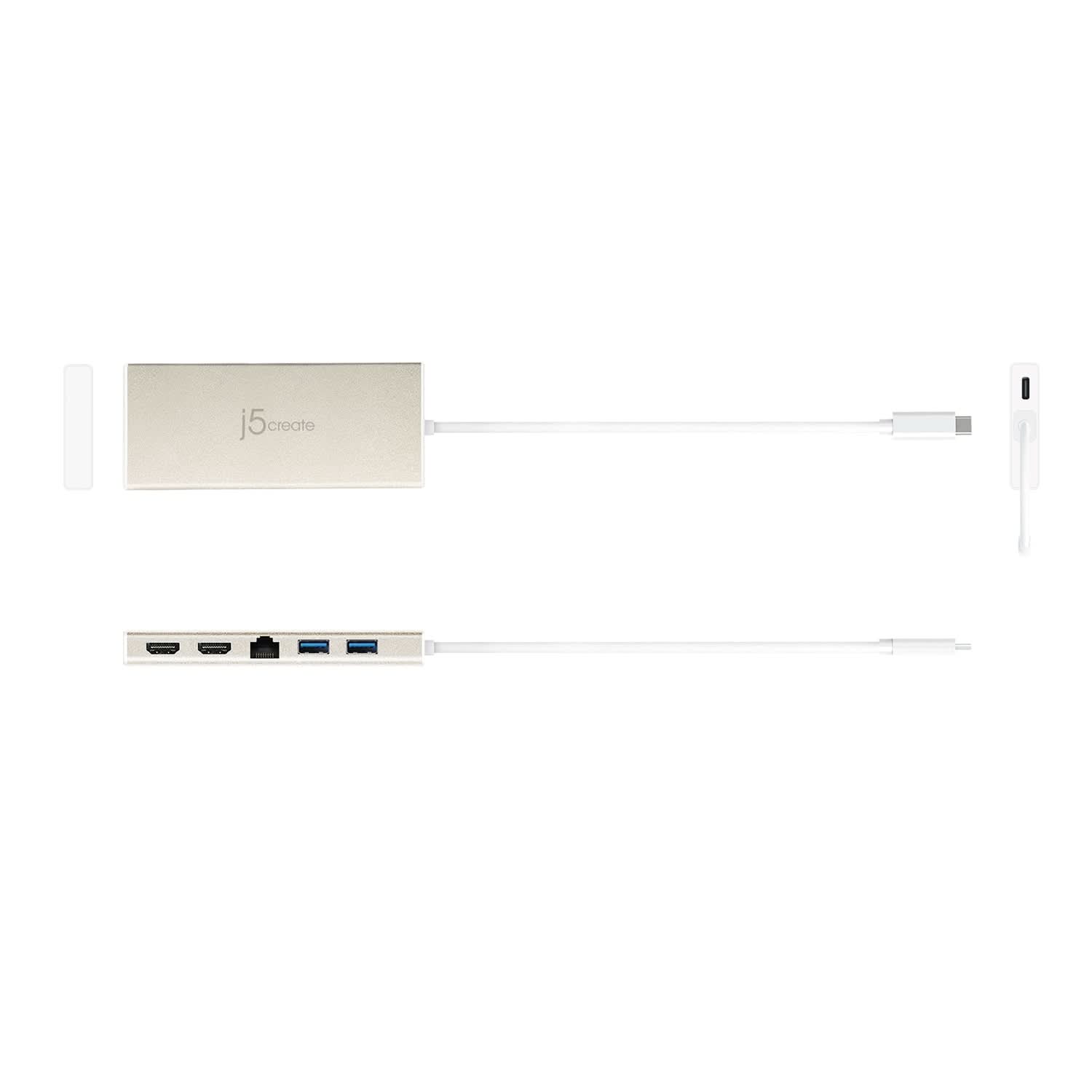

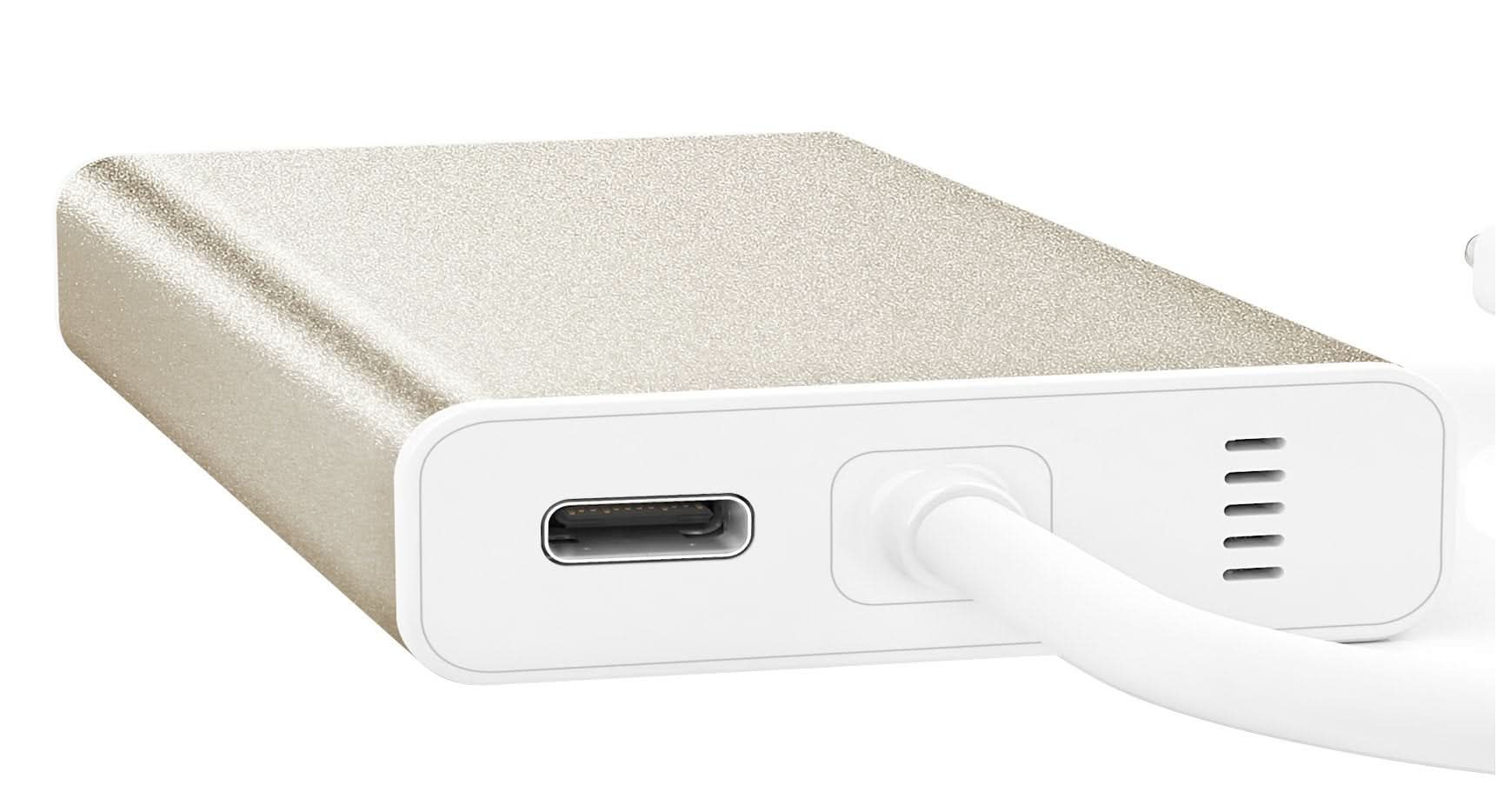

J5CREATE JCD381 USB Type Dual HDMI Mini Dock-Ethernet/ USB 3.1 HUB / PD2.0

• • Windows® 10 or later
  macOS® 10.14 or later
• • Available USB-C® port that supports USBâ„¢ Power Delivery 2.0 or 3.0. (USBâ„¢ 3.0 is recommended)
  Please refer to the manufacturer of your hardware for more information on your device.
• • For office applications / Web:
  • • CPU: Intel® Coreâ„¢ i3 Dual Core 2.8 GHz
  • • RAM: 2 GB memory or higher
• • For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback:
  • • CPU: Intel® Coreâ„¢ i5 Quad Core
  • • RAM: 4 GB memory or higher
• • For two 2K or one 4K (3840 x 2160 @ 30 Hz) full-screen video playback:
  • • CPU: Intel® Coreâ„¢ i7 Quad Core
  • • RAM: 8 GB memory or higher

• • The adapter can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
• • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• • One of the HDMIâ„¢ ports can output resolutions up to 4K, while the other can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use.
• • If you are using a high-powered USBâ„¢ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.

Package Contents

• • 1 - JCD381 USB-C® Dual HDMIâ„¢ Mini Dock
• • 1 - Quick Installation Guide

Special Notes

• Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
