€ Full 1080p resolution € USB„ 3.0 host connection € USB„ 3.0 charging connection x2 € Gigabit Ethernet connection € VGA connection € Audio connection € Microphone connection € HDMI„ connection € USB„ 3.0 connection x2 € Use up to 6 adapters with Windows® € Use up to 4 adapters with Mac® € Solid aluminum construction € Simple, easy to use and install

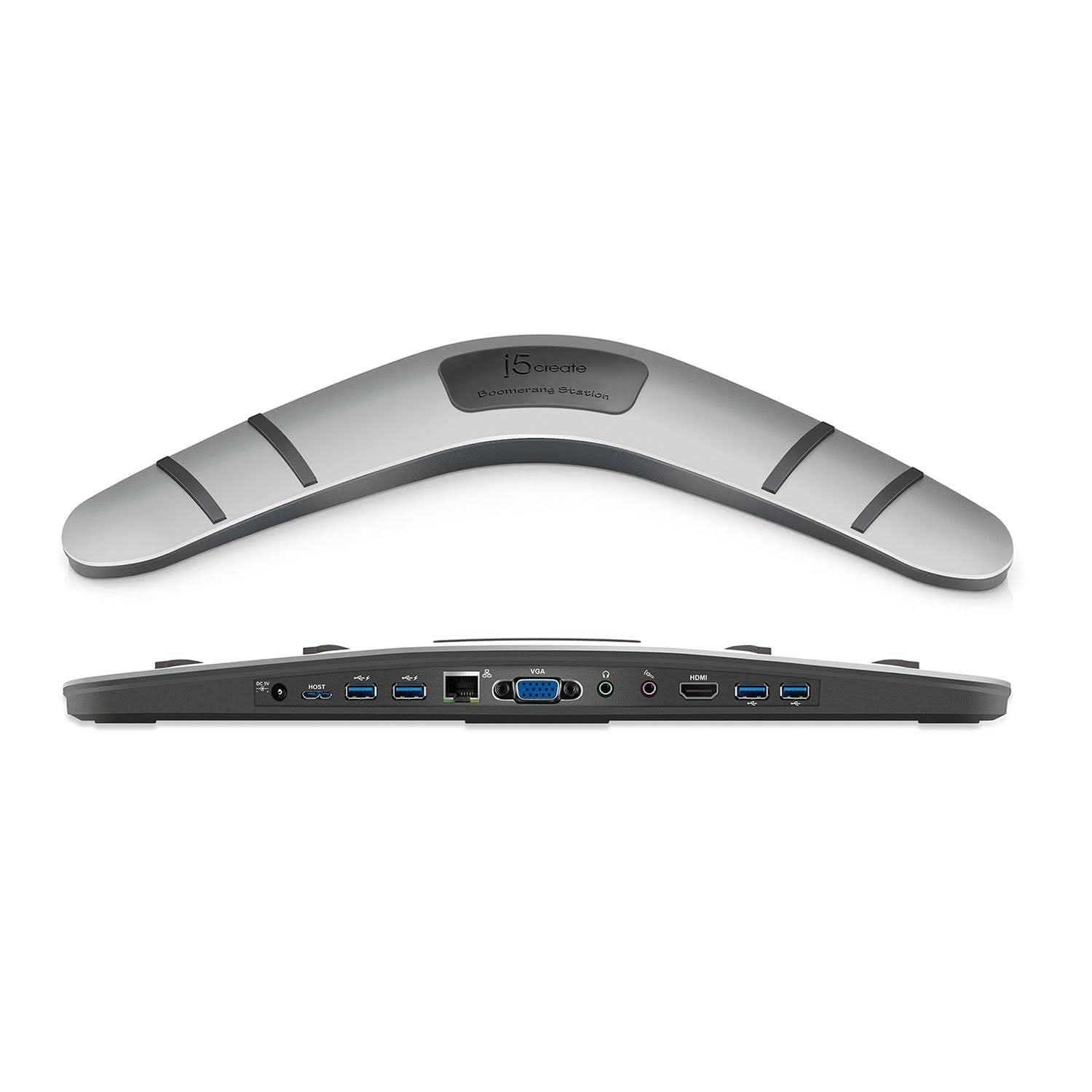

The JUD481 USB„ 3.0 Boomerang Docking Station enables you to add a second monitor instantly via HDMI„ and VGA connectors. When you need to get things done fast, simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone, etc. to your laptop with a single USB„ 3.0 cable. It is the perfect solution for expanding virtually any laptop into a full-sized workstation.
Interface
Host Interface
USB„3.0 Micro B Female connector
Cable
USB„3.0 Micro B to Type A
Video Interface
VGA-DB 15 pin Female connector
Standard HDMI„Female connector (with Audio)
Ethernet
RJ-45 Female connector (Gigabit Ethernet)
USB„Ports
USB„3.0 Female connector x4
USB„3.0 Battery Charging V.1.2 Charging port x2
(Two ports that provide additional power of up to 2A for fast-charging an iPad, smartphone, tablet, or similar products)
Audio Jack
Microphone: 3.5 mm stereo audio in Speaker: 3.5 mm stereo audio out
Power
Power Adapter
Input: AC 100-240V, 50 - 60 Hz Output: DC 5V/3A (US/JP/TW) or 5V/4A (EU/UK/AU/CN)
Power Mode
Self-Powered
Functions
Display
Video Playback:1080p Display Resolution: 2048 x 1152 @ 32 bit Display Modes:Primary, Extended, Mirror Display Rotation:0°, 90°, 180°, 270°
