J5CREATE 8K THUNDERBOLT 4 DOCKING STATION

Special Price ₹34,643.00 Regular Price ₹46,190.00

About This Product

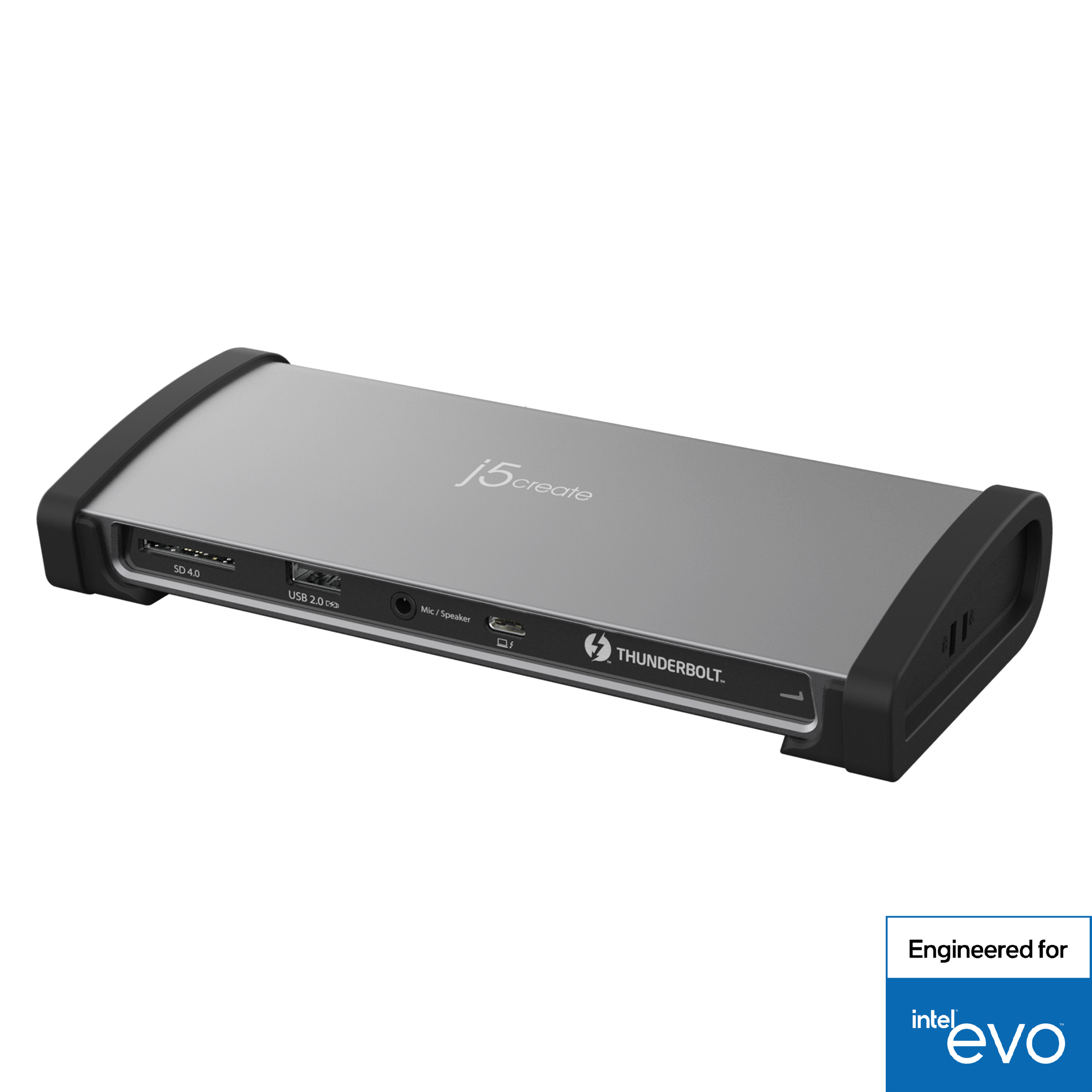

This Thunderbolt„ 4 Docking Station turns your Mac® or Windows® laptop into a full workstation with three Thunderbolt„ 4 outputs. Supports resolution up to dual display 4K or one display at 8K. Great for content creators, professionals, and enthusiast that require high resolution displays for the best visual experience.

With 96W Power Delivery, three USB„ 3.2 ports, and a USB-C® port, this docking station is perfect for your MacBook®, or Windows® laptop that support Thunderbolt„ 4 allowing you to add high-speed ports to your laptop. This Thunderbolt„ 4 docking station also has an RJ45 Gigabit Ethernet port, SD„ 4.0 memory card reader/writer, and combo audio jack for added flexibility.

All 11 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!

Features


€ Providing the ultimate connectivity for Thunderbolt„ 4 laptops
€ Intel® Thunderbolt„ 4 certified for reliability and compatibility
€ Capable of ultra-high data transfer speeds
€ Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality
€ Supports Thunderbolt„ daisy chain feature to connect more Thunderbolt„ devices
€ Perfectly made for MacBook Pro® (2021 and later) and Thunderbolt„4 laptops
€ 3 x Thunderbolt„ 4 USB-C® 40Gbps
€ Power adapter 135W AC adapter with up to 96W PD charge
€ Backwards compatible with Thunderbolt„ 3



System Requirements

  • Available Thunderbolt„ 4 port
  • Compatibility
      • - MacBook Pro® 2016 and later
      • - Surface Pro„ 8, Surface„ laptop studio
      • - 2021 iMac® M1, 2019/2017 iMac®, iMac Pro®, 2021 iPad Pro® M1

    *Compatibility is not limited to just the devices listed above

    *Please refer to the manufacturer of your computer for more information about your device


Hardware

Warranty

2 Year Limited

Host Connector

1 - Thunderbolt„ 4 Female

Video Output

3 - Thunderbolt„ 4 Female

Power Source

Self-powered

Network Interface

RJ45 (Gigabit Ethernet)

Audio Supported

Yes

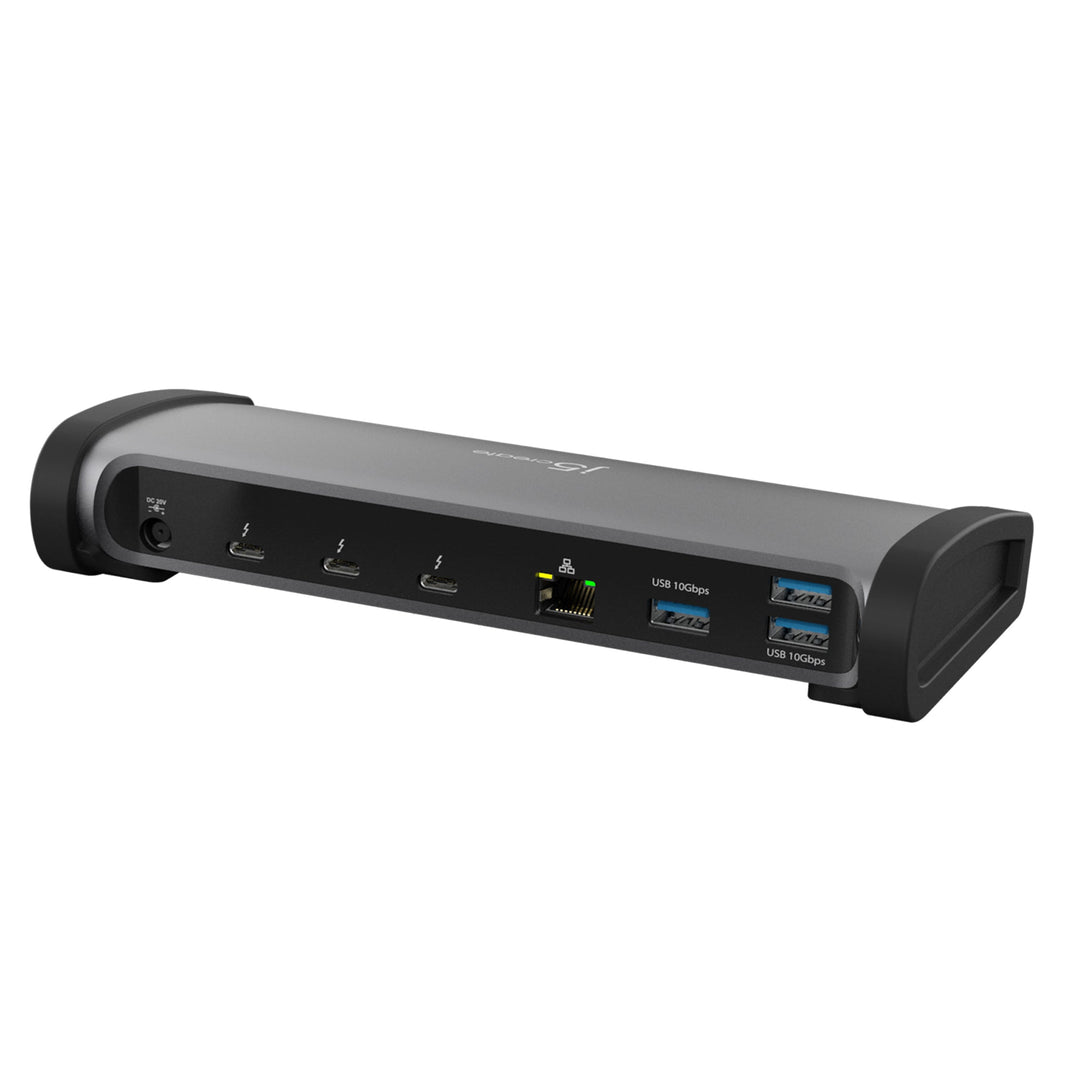

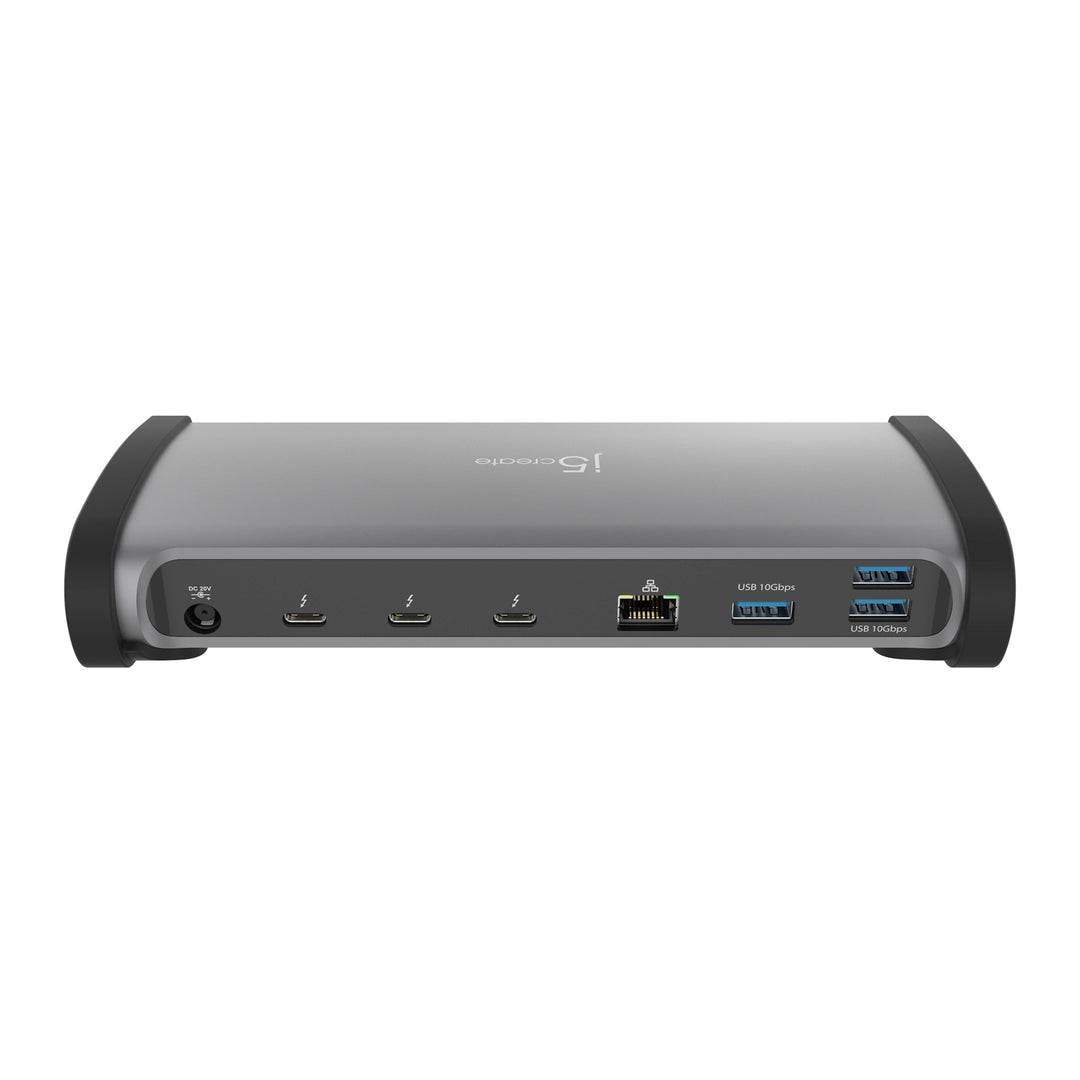

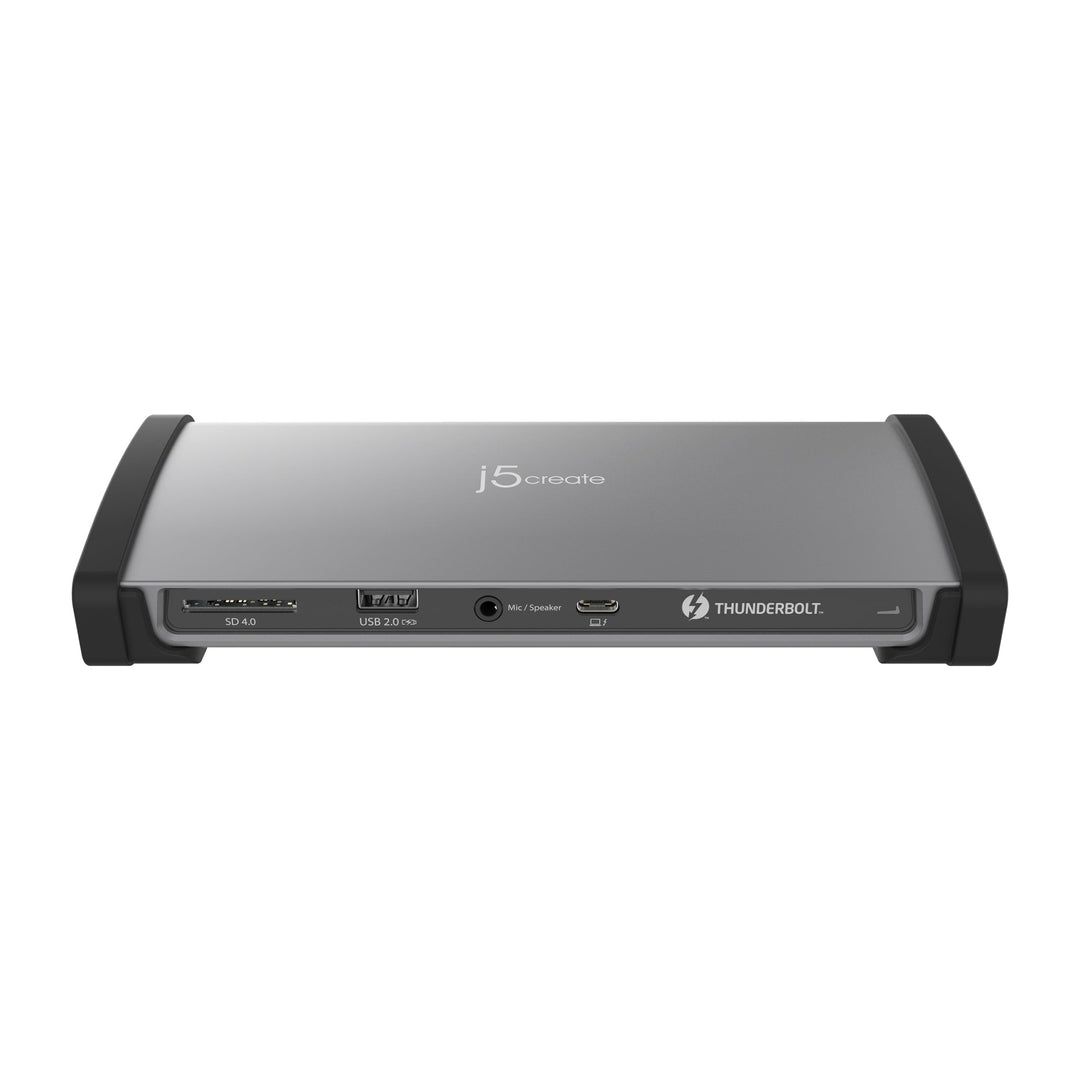

Ports

  • 1 - USB-C® Power Delivery 96W (Host)
  • 3 - Thunderbolt„ 4 USB-C® 40Gbps
  • 3 - USB„ 3.2 Type-A Gen 2 10Gbps
  • 1 - USB„ 2.0 Type-A with BC1.2 fast charging
  • 1 - SD„ 4.0 UHS-II 312 MB/s memory card reader/writer
  • 1 - 3.5 mm combo audio jack
  • 1 - RJ45 Gigabit Ethernet
Performance

Maximum Display Resolution


Thunderbolt„ Mode

2 - 4K @ 60 Hz

1 - 4K @ 120 Hz (Via DP„)

1 - 4K @ 144 Hz (with DSC)

1 - 8K @ 30 Hz

1 - 8K @ 60 Hz (with DSC)


MFDP Mode (Base on HBR3 Host)

1 - 4K @ 60 Hz

Maximum Display Refresh Rate

60 Hz via Thunderbolt„ 4

Maximum Data Transfer Rate

40Gbps

Displays Supported

2

Compatible Networks

10/100/1000 Base-T, auto-negotiating

Audio Channel

3 -Thunderbolt„ 4 / 3.5 combo audio jack

Power

Power Delivery

96W

Power Consumption

1.2A

Input Current

2.5A

Input Voltage

110V-240V

Output Current

6.75A

Output Voltage

20V

Physical Specifications

Color

Black / Space Grey

Enclosure Type

Aluminum

Cable Length

2.3 ft. / 70 cm

Product Height

7.64 in./194 mm

Product Width

3.32 in./ 84.39 mm

Product Depth

1.21in./ 30.85 mm

Product Weight

14.5 oz /411g

Storage Temperature

14 to 149°F (-10 to 65°C)

Storage Humidity

< 85% non-condensing

Operating Temperature

32 to 118°F (0 to 48°C)

Operating Humidity

< 85% non-condensing


Special Notes

  • An 8K-capable display is required for obtaining the 7680 x 4320 resolution
  • If connected to a USB„ 3.2 host port or under, or if using a USB„ 3.2 host cable or under, performance or functionality may be limited


Package Contents

  • 1 - JTD562 Thunderbolt„ 4 Docking Station
  • 1 - 135W AC adapter with up to 96W PD charge
  • 1 - Thunderbolt„ 4 to Thunderbolt„ 4 Cable (2.3 ft / 70 cm)
  • 2 - USB-C® to 4K DisplayPort„ Cable (JCA141)
  • 1 - Quick Installation Guide (QIG)
