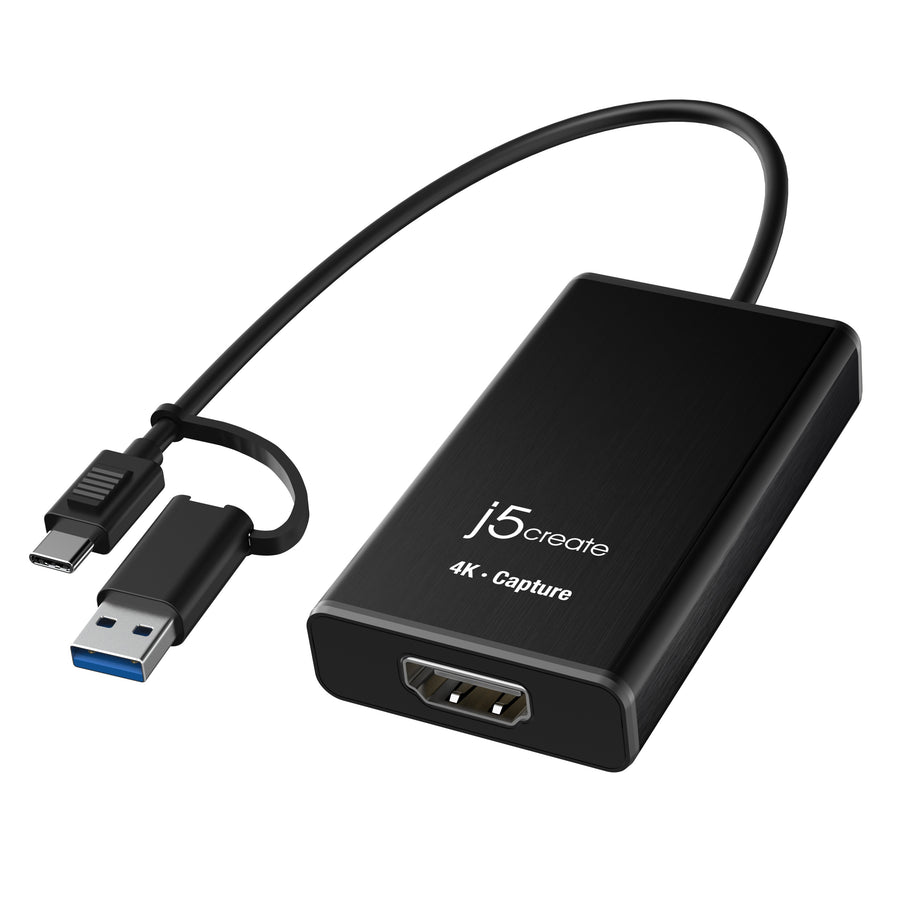

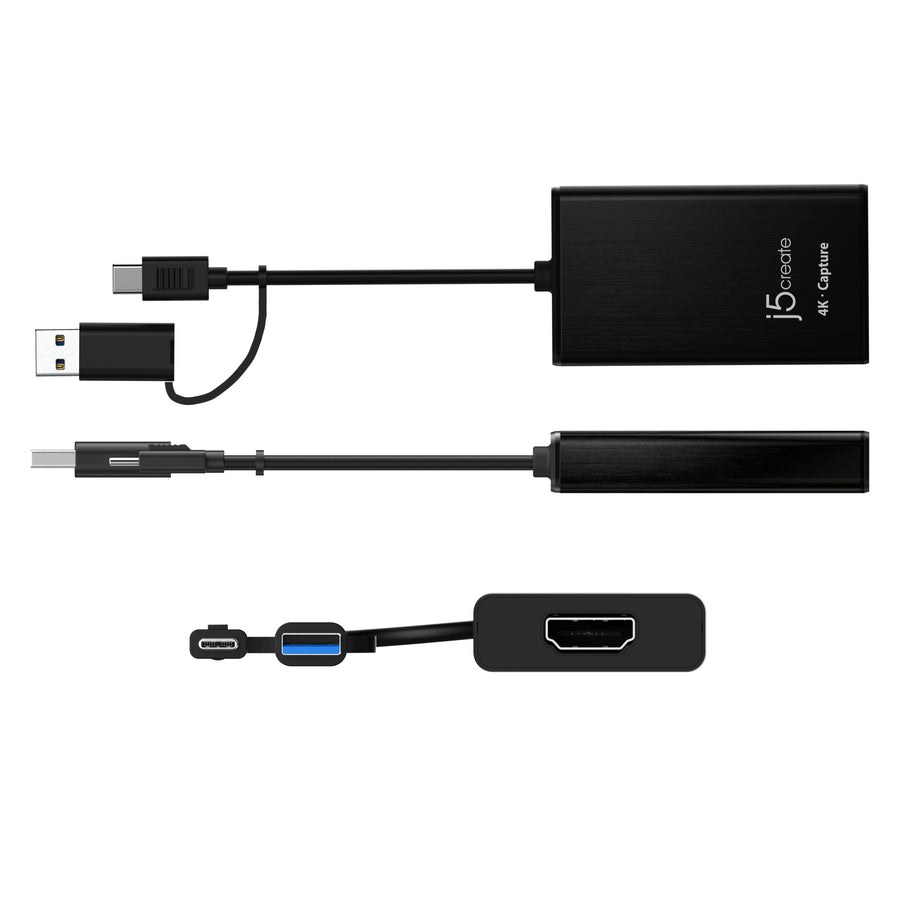

J5CREATE 4K HDMI CAPTURE ADAPTER

Special Price ₹6,664.00 Regular Price ₹11,190.00


Category	Specification
Hardware
Audio Input	1 - HDMI„ Female
Audio Output	N/A
Audio Switcher	N/A
Host Connector	1 - USB-C® 3.2 Gen 1 Female (Type-A to USB-C®)
Ports	1 - USB-C® 3.2 Gen 1 (Host)
	1 - HDMI„ Input
Power Source	N/A
Video Input	1 - HDMI„ Female
Video Output	N/A
Video Switcher	N/A
Warranty	2 Year Limited
Performance
Audio Channel	2.1 via HDMI„
Audio Frequency	48 kHz
Compressions	USB„ 3.0: RGB / YUV4:2:2 / YUV4:2:0
	USB„ 2.0: YUV4:2:0
HDMI Input Resolutions	3840 x 2160 @ 30
HDR Supported	No
Headset	N/A
Maximum Capture Capability	USB„ 3.0: 3840 x 2160 @ 30
	USB„ 2.0: 1280 x 720 @ 30

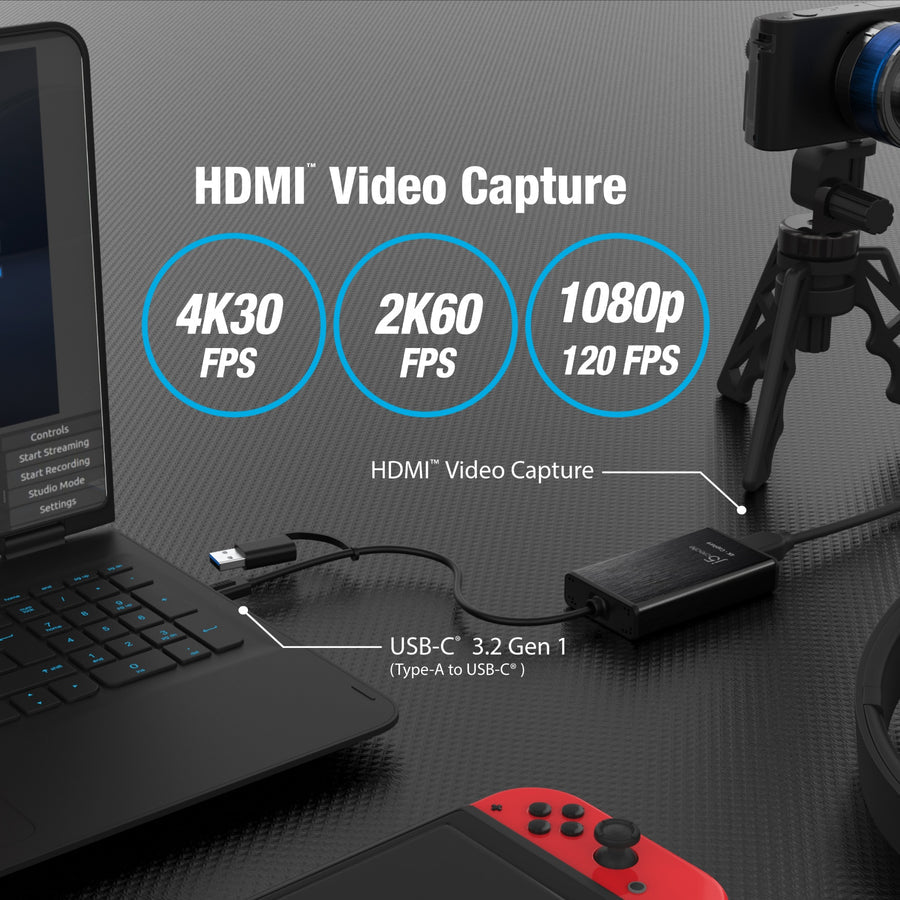

Maximum Capture Refresh Rate	4K30 fps, 2K60 fps, 1080p120 fps
Max Display Refresh Rate	N/A
Microphone	N/A
Power
Input Current	1.5A
Input Voltage	5V
Output Current	N/A
Output Voltage	N/A
Power Consumption	‰¤ 530 mA
Power Delivery	N/A
Physical Specifications
Cable Length	7.87 in. (20 cm)
Color	Black
Enclosure Type	Aluminum
Operating Humidity	< 80% non-condensing
Operating Temperature	32 to 104°F (0 to 40°C)
Product Depth	0.56 in. (14.14 mm)
Product Height	2.83 in. (72 mm)
Product Weight	1.94 oz (55 g)
Product Width	1.61 in. (41 mm)
Storage Humidity	< 85% non-condensing
Storage Temperature	14 to 149°F (-10 to 65°C)
Package Contents
	1 - JVA11 4K HDMI„ Capture Adapter
	1 - Quick Installation Guide (QIG)
