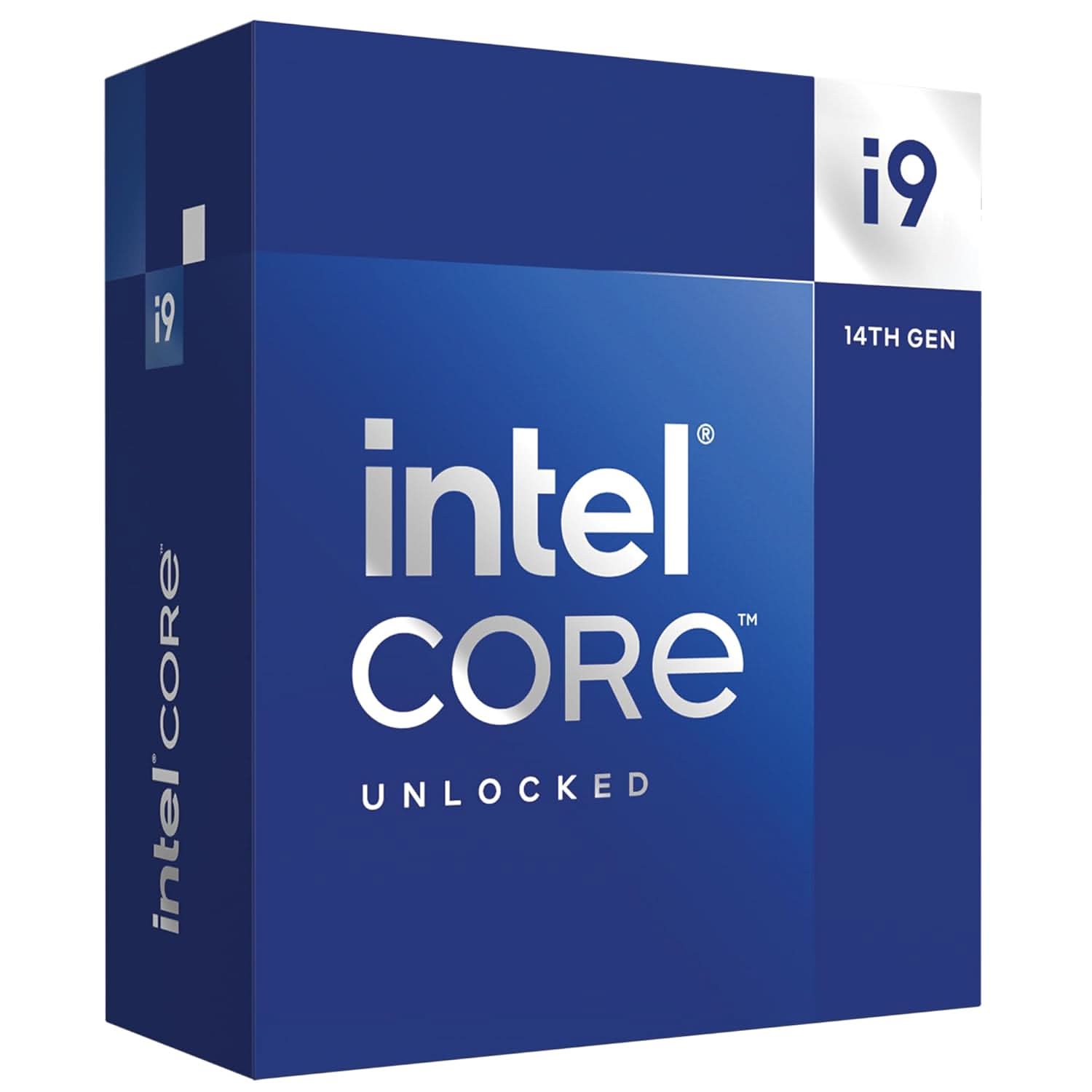

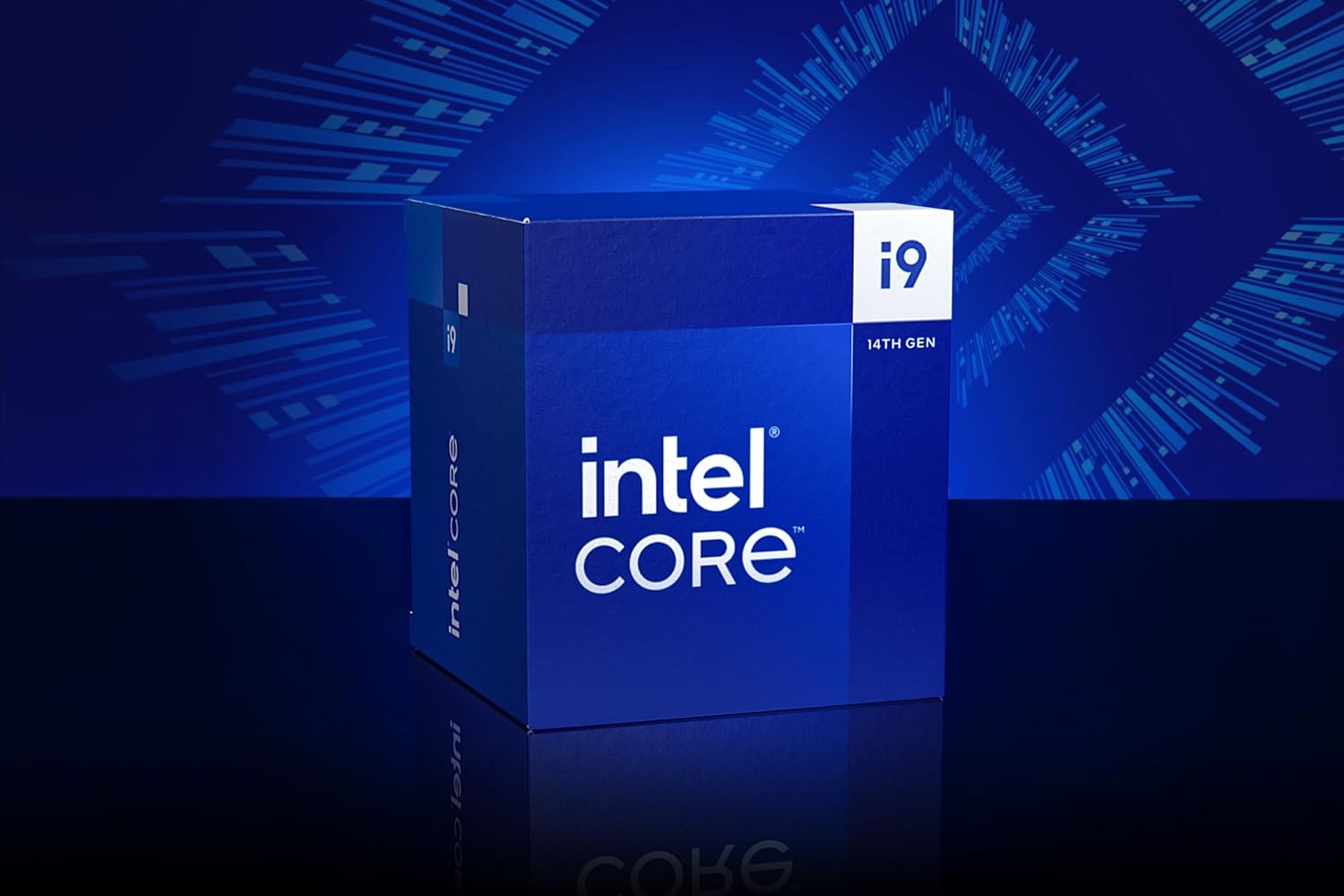

| Model | i9-14900K |
| Product Collection | Intel® Core„¢ i9 Processors (14th gen) |
| Code Name | Products formerly RAPTOR LAKE |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet, Workstation |
| CPU Specifications |
| Total Cores | 24 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 16 |
| Total Threads | 32 |
| Max Turbo Frequency | 6 GHz |
| Intel® Thermal Velocity Boost Frequency | 6 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency €¡ | 5.8 GHz |
| Performance-core Max Turbo Frequency | 5.6 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core Base Frequency | 3.2 GHz |
| Efficient-core Base Frequency | 2.4 GHz |
| Cache | 36 MB Intel® Smart Cache |
| Total L2 Cache | 32 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 253 W |
| Supplemental Information |
| Marketing Status | Launched |
| Launch Date | Q4'23 |
| Embedded Options Available | No |
| Memory Specifications |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | - Up to DDR5 5600 MT/s
- Up to DDR4 3200 MT/s
|
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported €¡ | Yes |
| GPU Specifications |
| Processor Graphics €¡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.65 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)€¡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)€¡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)€¡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported €¡ | 4 |
| Device ID | 0xA780 |
| Expansion Options |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations €¡ | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Adaptive Boost Technology | Yes |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Turbo Boost Max Technology 3.0 €¡ | Yes |
| Intel® Turbo Boost Technology €¡ | 2.0 |
| Intel® Hyper-Threading Technology €¡ | Yes |
| Intel® 64 €¡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability |
| Intel® Standard Manageability (ISM) €¡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit €¡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) €¡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) €¡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) €¡ | Yes |
| Warranty | 3 Years |
