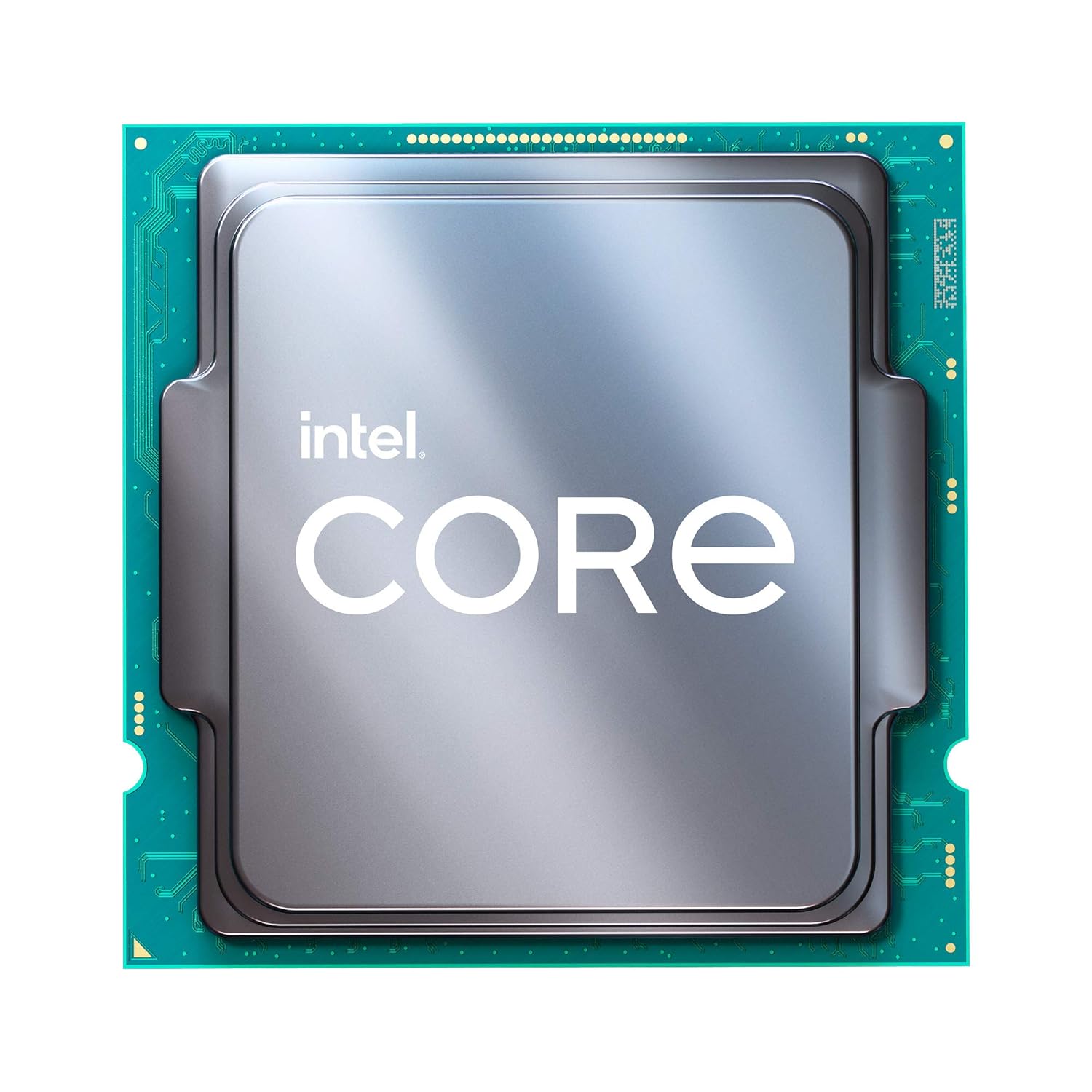

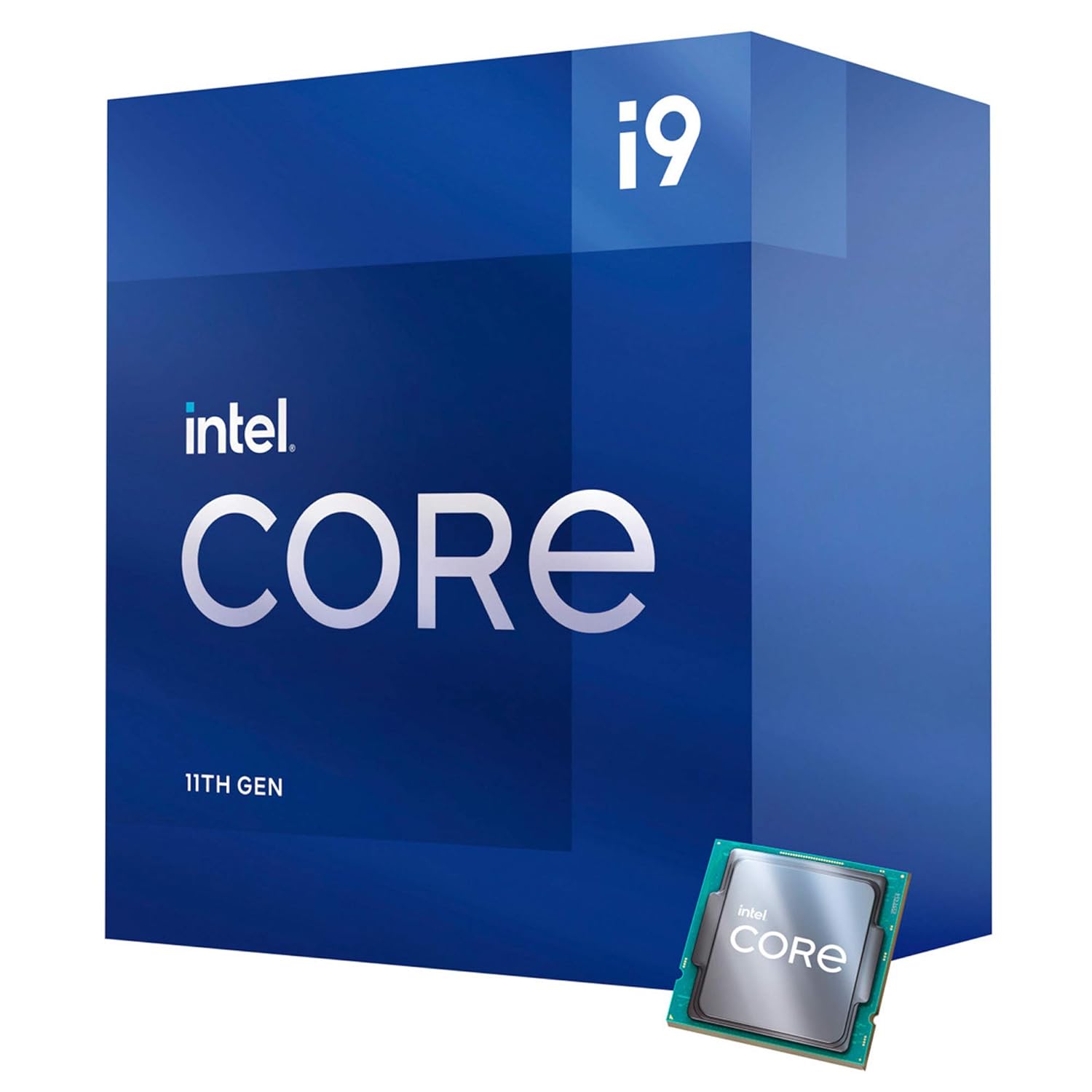

Introducing the newest and fastest 11th Gen Intel Core i9 desktop processor, built based on 14 nm lithography supporting Socket type LGA 1200. The Processors features 8 Core which allow the processor to run multiple programs simultaneously without slowing down the system, while the 16 threads allow instructions to be handled by a single CPU core along with Hyper Threading Technology.
With 2.50 GHz Base frequency, the Intel Thermal Velocity Boost Technology cranks maximum turbo frequency up to a blazing 5.2GHz. The processor is desirable for a gamer looking for a fantastic in-game experience and a creator that is ready to do more creating and sharing alike.
All this paired with 16MB of Intel Smart Cache. It has a TDP rating of 65W with max memory size of 128GB dual-channel DDR4 support for up-to 3200MHz with Intel top notch security features. To keep your processor cool it comes with a bundled CPU fan.
ASUS ROG STRIX Z590-E WiFi Gaming motherboard is designed to support latest Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors. The board is PCIe 4.0 Ready supporting up to 128GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology to push your gaming experience to its peak.
The board supports multiple GPUs with the help NVIDIA 2-Way SLI Technology. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible. Intelligent software solutions help ensure that your system performs at its best.
Specifications
Essentials
Product Collection
11th Generation Intel Core€š i9 Processors
Code Name
Products formerly Rocket Lake
Vertical Segment
Desktop
Processor Number
i9-11900
Launch Date
Q1'21
Lithography
14 nm
Use Conditions
PC/Client/Tablet
Warranty
3 Years
CPU Specifications
Total Cores
8
Total Threads
16
Max Turbo Frequency
5.20 GHz
Intel Thermal Velocity Boost Frequency
5.20 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.10 GHz
Intel Turbo Boost Technology 2.0 Frequency
5.00 GHz
Processor Base Frequency
2.50 GHz
Cache
16 MB Intel Smart Cache
Bus Speed
8 GT/s
TDP
65 W
Supplemental Information
Embedded Options Available
No
Datasheet
View now
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-3200
Max # of Memory Channels
2
Max Memory Bandwidth
50 GB/s
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel UHD Graphics 750
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.30 GHz
Graphics Video Max Memory
64 GB
Execution Units
32
4K Support
Yes | at 60Hz
Max Resolution (HDMI)
4096x2160@60Hz
Max Resolution (DP)
5120 x 3200 @60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 @60Hz
DirectX* Support
12.1
OpenGL* Support
4.5
Intel Quick Sync Video
Yes
Intel InTru 3D Technology
Yes
Intel Clear Video HD Technology
Yes
Intel Clear Video Technology
Yes
# of Displays Supported
3
Device ID
0x4C8A
OpenCL* Support
3
Expansion Options
Scalability
1S Only
PCI Express Revision
4
PCI Express Configurations
Up to 1x16+1x4 | 2x8+1x4 | 1x8+3x4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1200
Max CPU Configuration
1
Thermal Solution Specification
PCG 2019C
Intel Thermal Velocity Boost Temperature
70 ˆžC
TJUNCTION
100ˆžC
Package Size
37.5 mm x 37.5 mm
Advanced Technologies
Intel Gaussian & Neural Accelerator
2
Intel Deep Learning Boost (Intel DL Boost)
Yes
Intel Optane€š Memory Supported
Yes
Intel Thermal Velocity Boost
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2
Intel vPro Platform Eligibility
Yes
Intel Hyper-Threading Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
