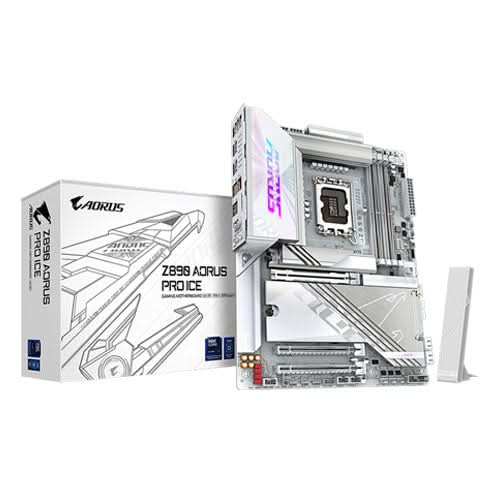

GIGABYTE Z890 Aorus Pro ICE ATX Motherboard

Features:

Supports Intel Core Ultra processors (Series 2)
Digital twin 16+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI SNATCH : Auto-Overclocking Software by AI models
AI Perfdrive: Provides optimal and customized BIOS preset profile for users
Premium Compatibility: 4*DDR5 with XMP Memory Module Support
DDR Wind Blade : Enhanced Active Cooling for Memory Modules
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HW info for real-time monitoring on CPU power phases
Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : Dual THUNDERBOLT™ 4 Type-C with DP-Alt
High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Infinite Memory Performance
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.



Motherboard




Platform
INTEL


Socket
LGA1851


CPU Type
Core Ultra


Chipset
Z890


Memory Speed
up to 9500


Max Memory Support
256 GB


Supported Memory Type
DDR5


Channel Supported
Dual Channel


Memory Feature
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module



Graphics Port
2 x Thunderbolt 4,1 x HDMI


Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)



Wireless Networking
WiFi 7,Bluetooth 5.4


Back Panel I/O Ports
4 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)4 x USB 3.2 Gen 1 ports2 x Intel® Thunderbolt™ 4 (Note) connectors (USB Type-C® ports)2 x USB 3.2 Gen 2 Type-A ports (red)1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks(Note) Please use a processor with integrated graphics support to ensure full Thunderbolt functionality.


Internal I/O Connector
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header5 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x HDMI port (Note)1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x Q-Flash Plus button1 x noise detection header1 x power button1 x reset button1 x reset jumper1 x Clear CMOS jumper2 x temperature sensor headers(Note) Actual support may vary by CPU.


Form Factor
ATX


Warranty
3 Years


Note

Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
