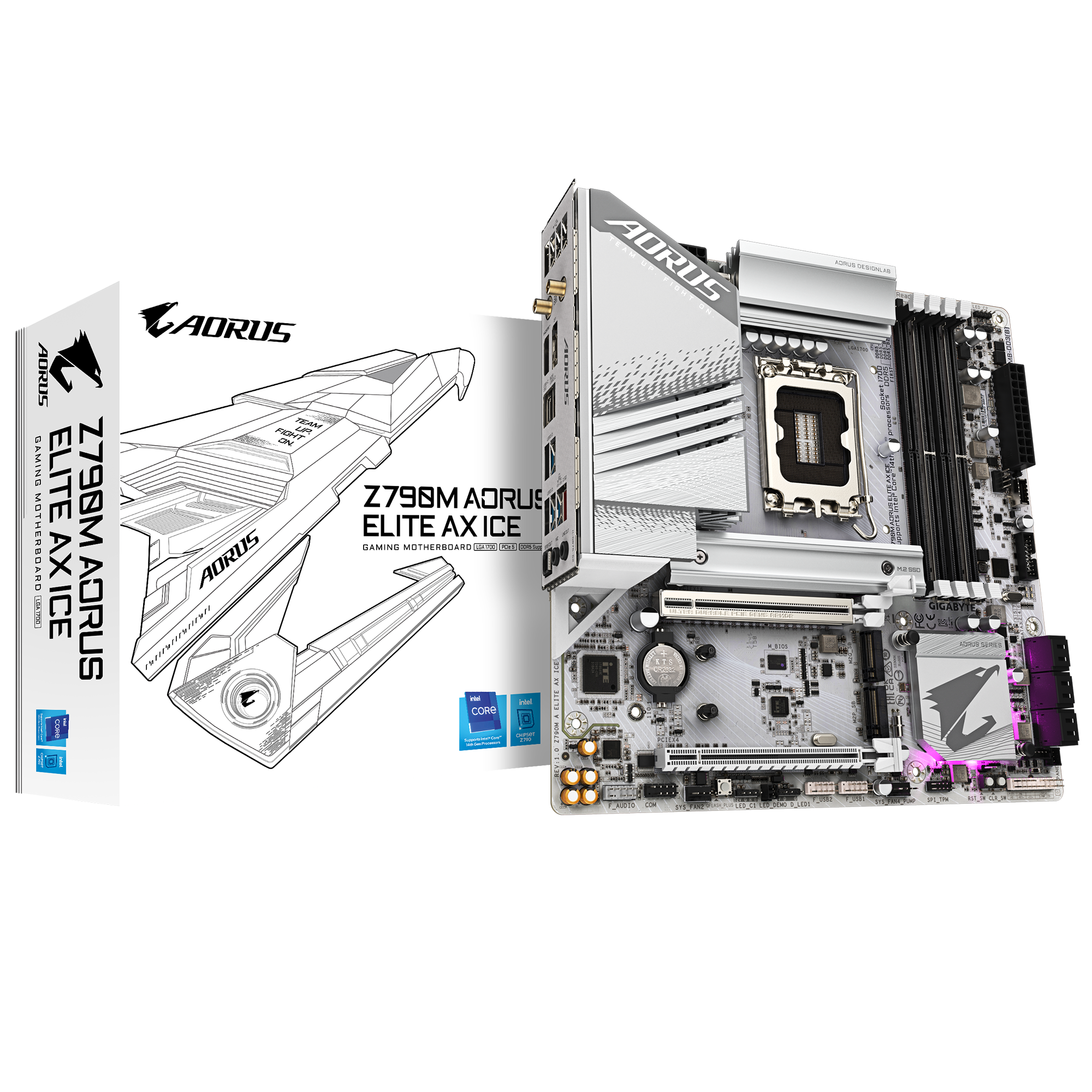

GIGABYTE Z790M AORUS ELITE AX ICE DDR5 MOTHERBOARD

Specifications:




CPU Support
LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core„, Pentium Gold, and Celeron Processors


Chipset
Intel Z790 Express Chipset


Memory
Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)


Onboard Graphics
Integrated Intel HD Graphics, 1 x HDMI (4096x2160@60Hz), 1 x DisplayPort (4096x2304@60Hz), support for HDMI 2.1 and DisplayPort 1.2


Audio
Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support


LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Wireless Communication
Intel Wi-Fi 6E AX211 (PCB rev. 1.0) and Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1), Bluetooth 5.3, support for 2.4/5/6 GHz bands, 11ax 160MHz wireless standard


Expansion Slots
1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset)


Storage Interface
1 x M.2 PCIe 4.0 x4 (CPU), 2 x M.2 PCIe 4.0 x4/SATA (Chipset), 6 x SATA 6Gb/s, RAID 0, RAID 1, RAID 5, and RAID 10 support


USB Ports
1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 8 x USB 2.0/1.1 (including internal headers)


Internal I/O Connectors
1 x 24-pin ATX main power, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V, 3 x system fan headers, 3 x M.2 connectors, 6 x SATA 6Gb/s, USB headers, and more


Back Panel Connectors
1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 2 x SMA antenna connectors, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 1 x optical S/PDIF Out, 2 x audio jacks


Operating System Support
Windows 10 64-bit, Windows 11 64-bit


Form Factor
Micro ATX (24.4cm x 24.4cm)


Unique Features
Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup, Norton Internet Security, LAN bandwidth management software
