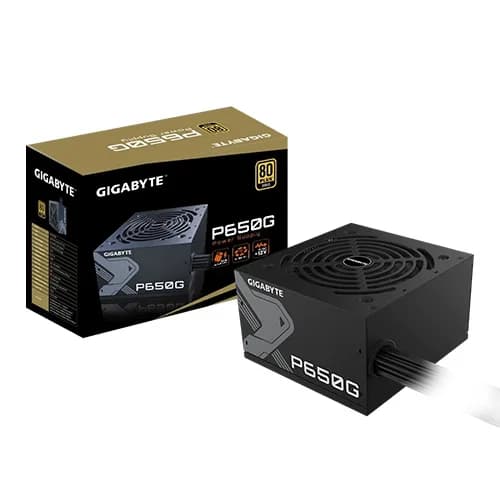

GIGABYTE GP-P650G 650W POWER SUPPLY

Specifications:




Model
GP-P650G


Type
Intel Form Factor ATX 12V


PFC
Active PFC (>0.9 typical)


Input Voltage
100-240 Vac (full range)


Input Current
9-4A


Input Frequency
60-50 Hz


Output Capacity
650W


Dimension
150 x 140 x 86 mm


Fan Type
120mm Hydraulic Bearing (HYB) Fan


80 PLUS
Gold


Efficiency
90% at typical load


MTBF
>100,000 hours


Protection
OVP/OPP/SCP/UVP/OCP/OTP


Power Good Signal
100-500ms


Hold Up Time
>16ms


Cable Type
Flat, All black


Connectors
ATX/MB 20+4 Pin x 1 : 600mmCPU/EPS 4+4 Pin x 2 : 600mm + 150mmPCI-e 6+2 Pin x 4 : 500mm + 150mmSATA x 6 : 500mm + 150mm + 150mm4 Pin Peripheral x 3 : 500mm + 150mm + 150mm
